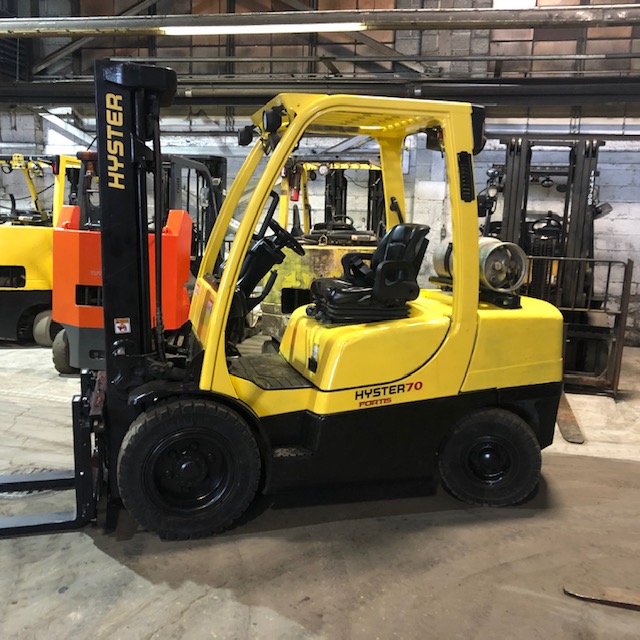

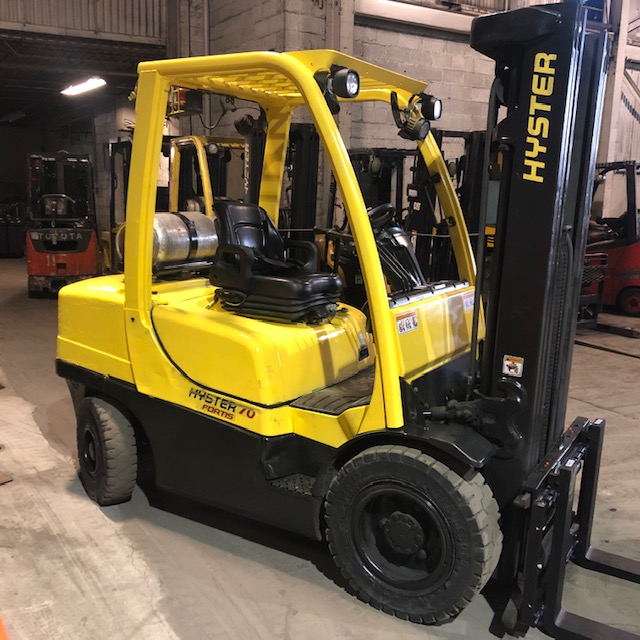

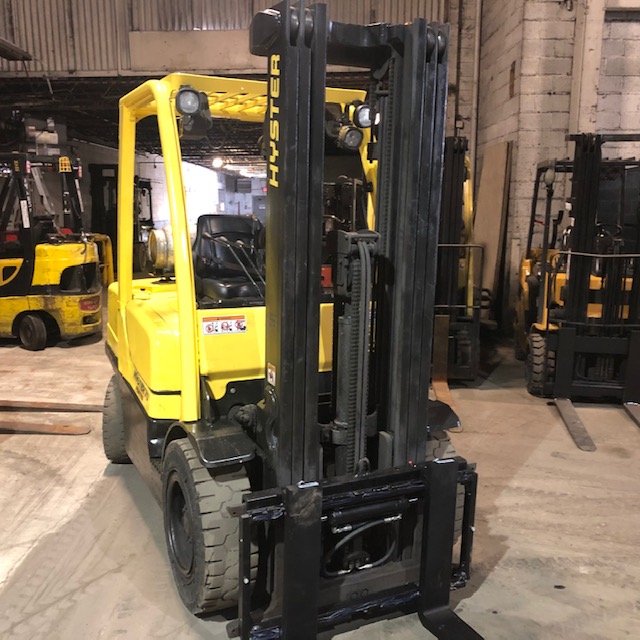

Hyster H70FT

Attribute Value
Make Hyster
Model H70FT
Type Pneumatic Tire Internal Combustion
Basic Capacity (lbs/kg) 7000/3175
Load Center (in/mm) 24/610
Power LPG/Dual Fuel/Diesel
Engine PSI 2.4L/Kubota 2.5L/Kubota 2.4L Tier 4 Final
Tire Type Pneumatic
Tilt – standard (forward/back) 6/6 degrees
Length to Fork Face (in/mm) 107.6/2734
Width – standard tires (in/mm) 46.7/1186
Width – wide tread tires (in/mm) 52/1321
Height to Top of Overhead Guard Standard (in/mm) 86/2185
Height to Top of Overhead Guard Optional (in/mm) 83/2118
Turning radius (in/mm) 93.7/2380
Right Angle Stack (in/mm) 112.6/2860
Weight with 2-StageLFL Mast(lbs/kg) 10357/4698
Front Tire Size 28 x 9 – 15
Rear Tire Size 6.50 x 10
Wheelbase (in/mm) 66.9/1700
