| Attribute | Value |
|---|---|
| Make | Hyster |
| Model | H70FT |
| Type | Pneumatic Tire Internal Combustion |
| Basic Capacity (lbs/kg) | 7000/3175 |
| Load Center (in/mm) | 24/610 |
| Power | LPG/Dual Fuel/Diesel |
| Engine | PSI 2.4L/Kubota 2.5L/Kubota 2.4L Tier 4 Final |
| Tire Type | Pneumatic |
| Tilt – standard (forward/back) | 6/6 degrees |
| Length to Fork Face (in/mm) | 107.6/2734 |
| Width – standard tires (in/mm) | 46.7/1186 |
| Width – wide tread tires (in/mm) | 52/1321 |
| Height to Top of Overhead Guard Standard (in/mm) | 86/2185 |
| Height to Top of Overhead Guard Optional (in/mm) | 83/2118 |
| Turning radius (in/mm) | 93.7/2380 |
| Right Angle Stack (in/mm) | 112.6/2860 |
| Weight with 2-StageLFL Mast(lbs/kg) | 10357/4698 |
| Front Tire Size | 28 x 9 – 15 |
| Rear Tire Size | 6.50 x 10 |
| Wheelbase (in/mm) | 66.9/1700 |
Hyster H70FT Reference Video

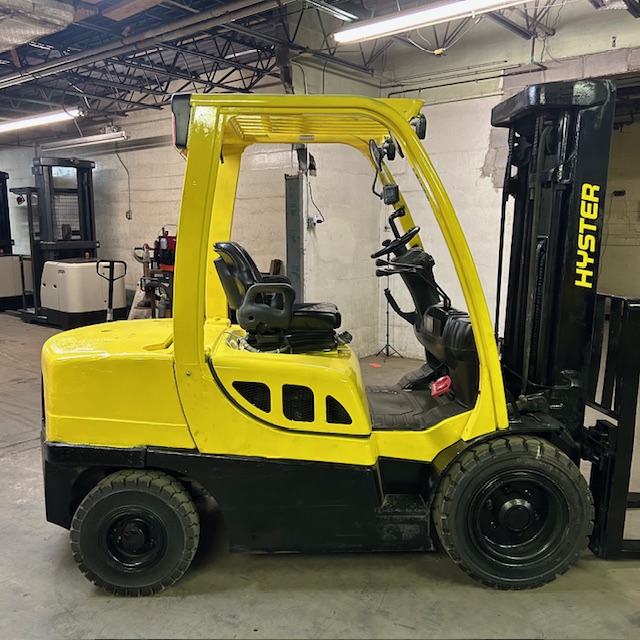

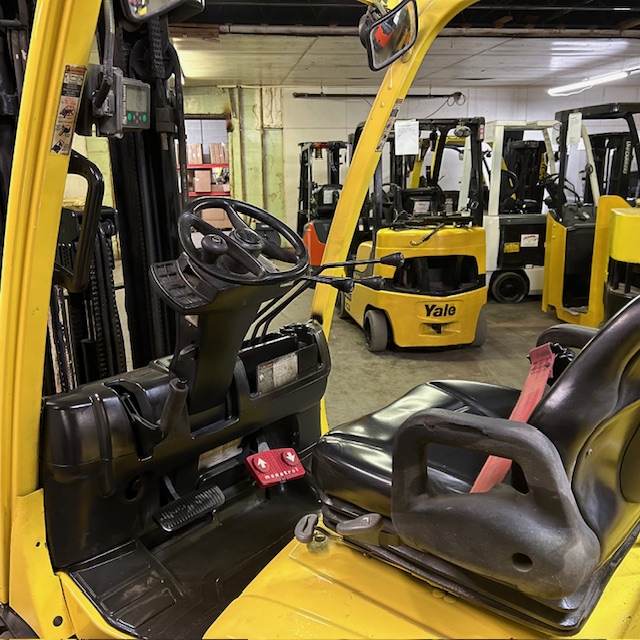

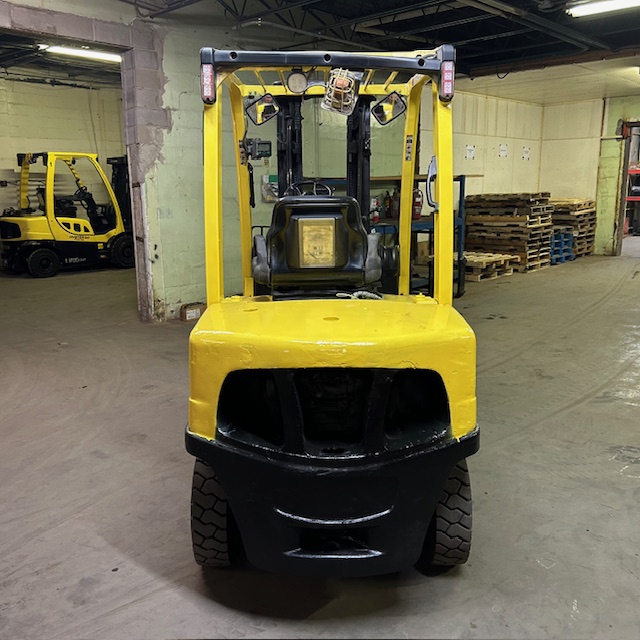

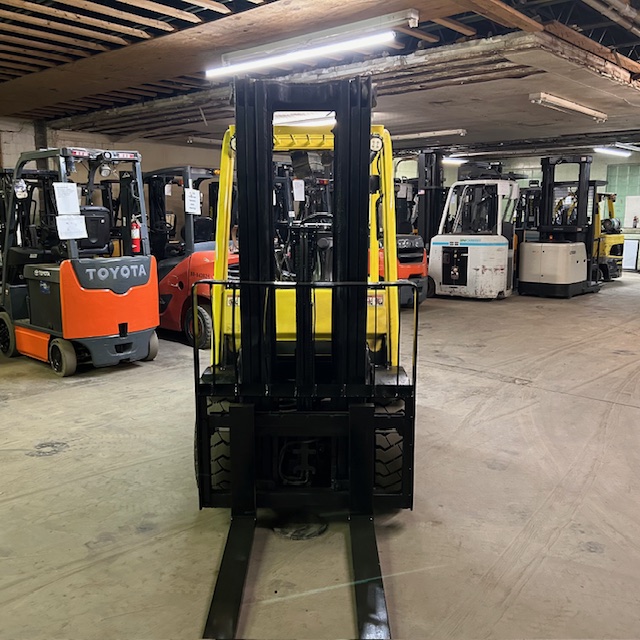

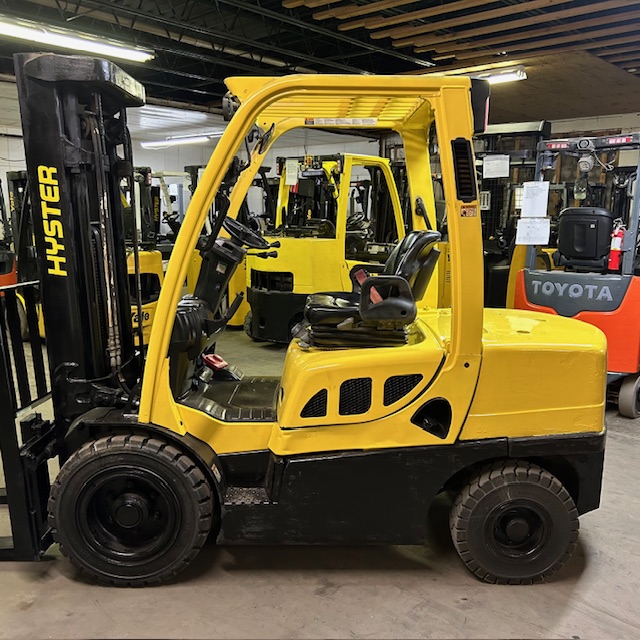

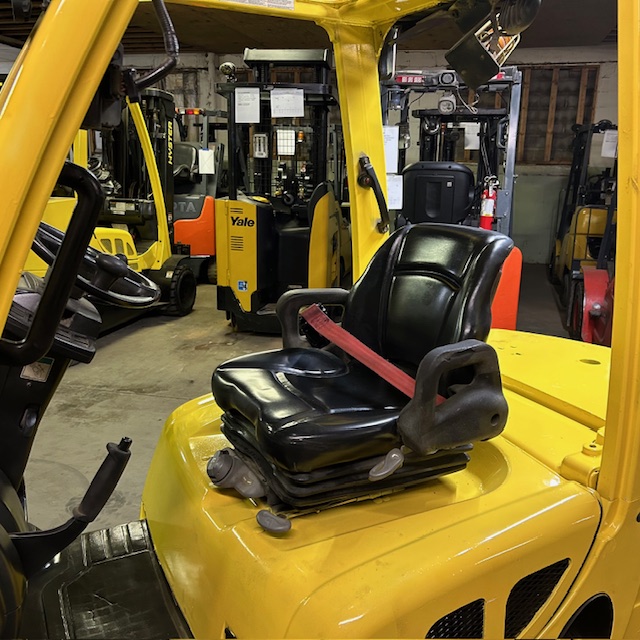

Hyster H70FT Reference Images
