| Attribute | Value |
|---|---|
| Make | Yale |
| Model | GLP100VX |
| Type | Pneumatic Tire Internal Combustion |
| Basic Capacity (lbs/kg) | 10000/4536 |
| Load Center (in/mm) | 24/610 |
| Power | LP Gas |
| Engine | PSI 4.3L / Kubota 3.8L LPG |
| Tire Type | Pneumatic |
| Tilt (forward/back) | 6.0/10.0 degrees |
| Length to Fork Face (in/mm) | 127.8/3247 |
| Overall Width – Standard (in/mm) | 57.1/1450 |
| Overall Width – Wide (in/mm) | 62.0/1575 |
| Height to Top of Overhead Guard – Standard (in/mm) | 91/2302 |
| Height to Top of Overhead Guard – Optional (in/mm) | 88/2235 |
| Minimum turning radius (in/mm) | 111.7/2837 |
| Weight with two stage mast & PSI 4.3L (lbs/kg) | 14910/6763 |
| Weight with two stage mast & Kubota 3.8L 4.3L (lbs/kg) | 15108/6853 |
| Front Tire Size | 300 x 15 – 20 Ply |
| Rear Tire Size | 7.00 x 12 – 14 Ply |
| Wheelbase (in/mm) | 82.7/2100 |
Yale GLP100VX Reference Video

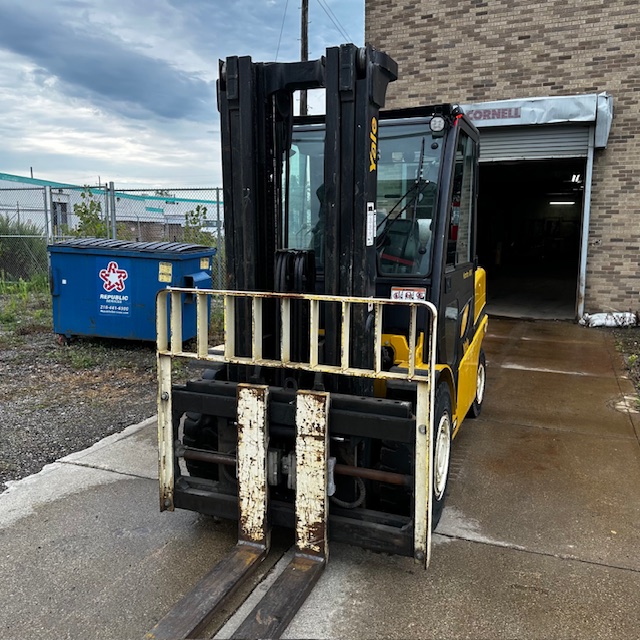

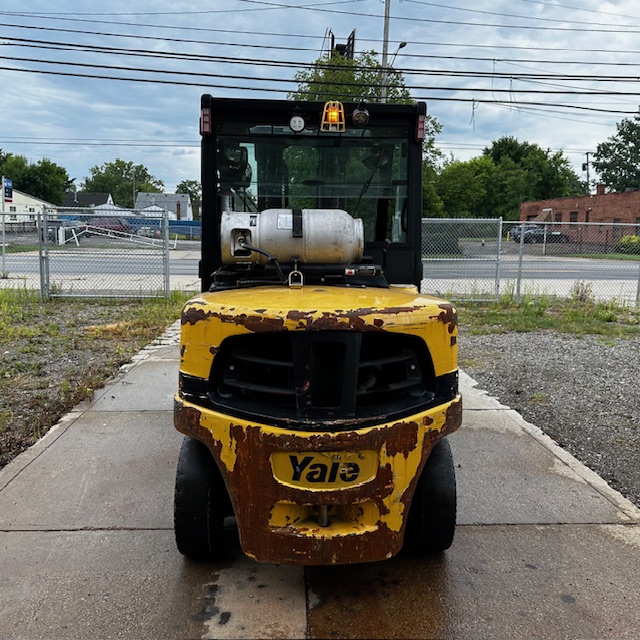

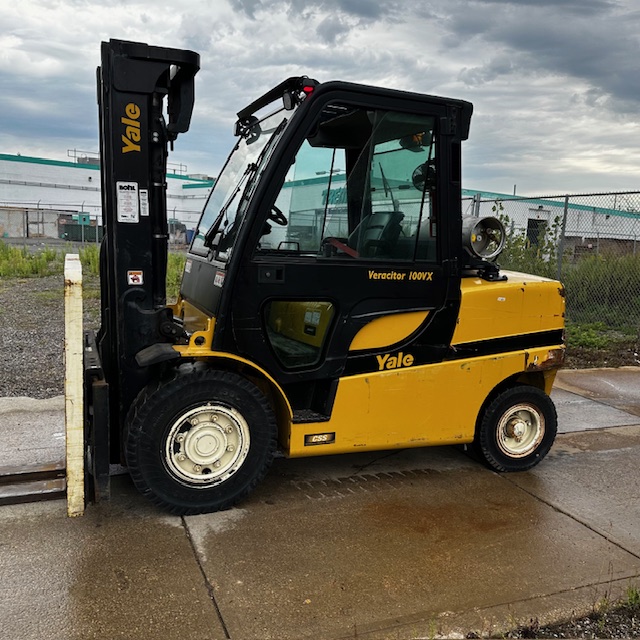

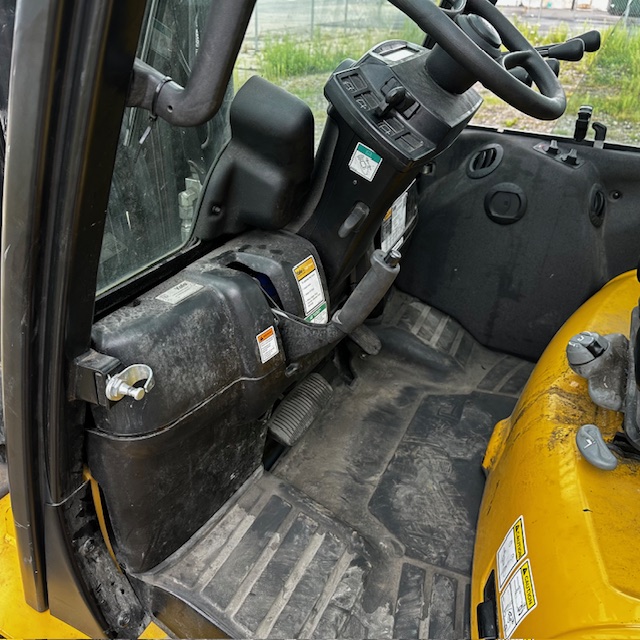

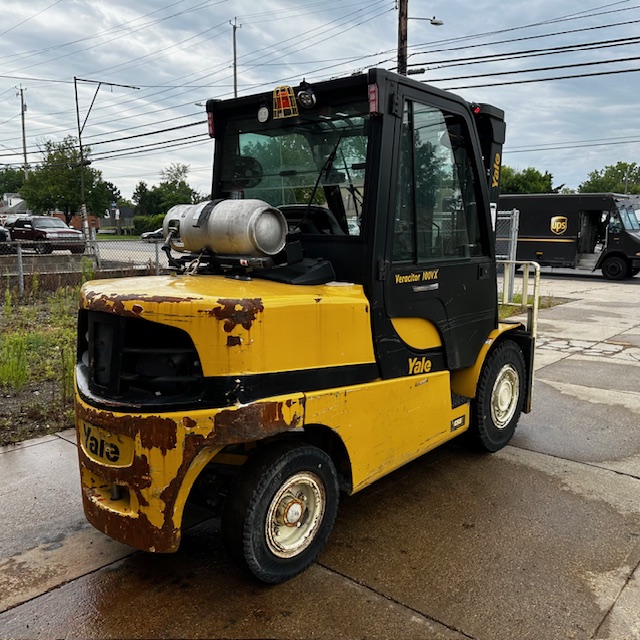

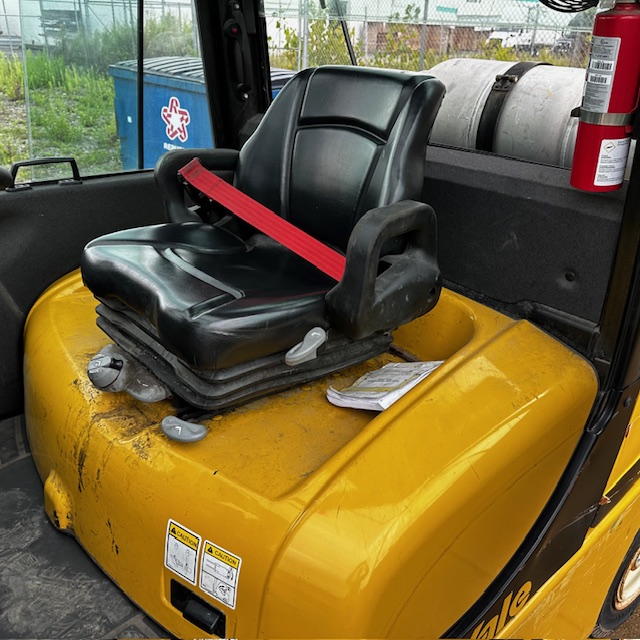

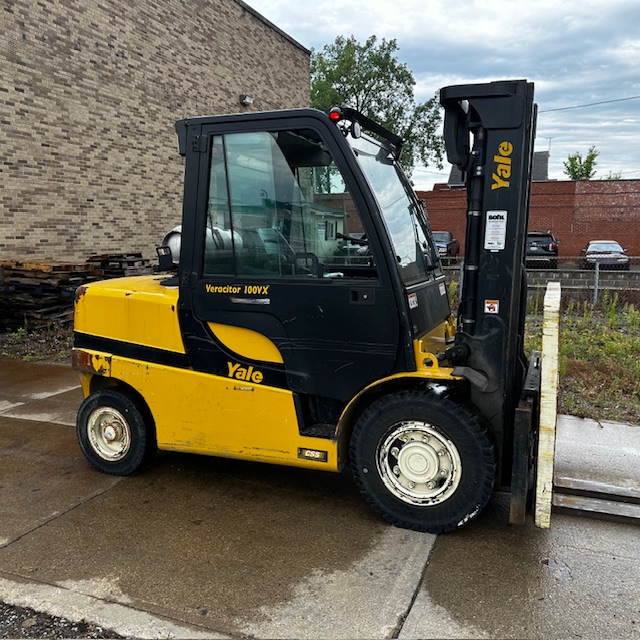

Yale GLP100VX Reference Images
