| Attribute | Value |
|---|---|
| Make | Yale |
| Model | GLC120VX |
| Forklift Type | Cushion Tire – Internal Combustions |
| Basic Capacity (lbs/kg) | 12000/5443 |
| Load Center (in/mm) | 24/610 |
| Power | LP Gas |
| Tire Type | Cushion |
| Length to Face of Forks (in/mm) | 112.6/2861 |
| Overall Width – Standard Tread (in/mm) | 46.1/1170 |
| Overall Width – Wide Tread (in/mm) | 50/1270 |
| Height to Top of Standard Overhead Guard (in/mm) | 86/2175 |
| Height to Top of Optional Overhead Guard 9 (in/mm) | 83/2108 |
| Minimum Outside Turning Radius (in/mm) | 99.8/2534 |
| Aisle Width, Right Angle Stack – Add Length of Load (in/mm) | 118/2996 |
| Weight, Standard Truck – Standard 2 Stage Mast Limited Free Lift (lb/kg) – no attachment – no forks | 16690/7570 |
| Front Drive Tire Size | 22 X 12 X16 |
| Rear Steer Tire Size | 18 X 8 X 12.2 |
| Wheelbase (in/mm) | 70.5/1790 |
| Engine | Kubota WG3800 LPG |
Yale GLC120VX Reference Video

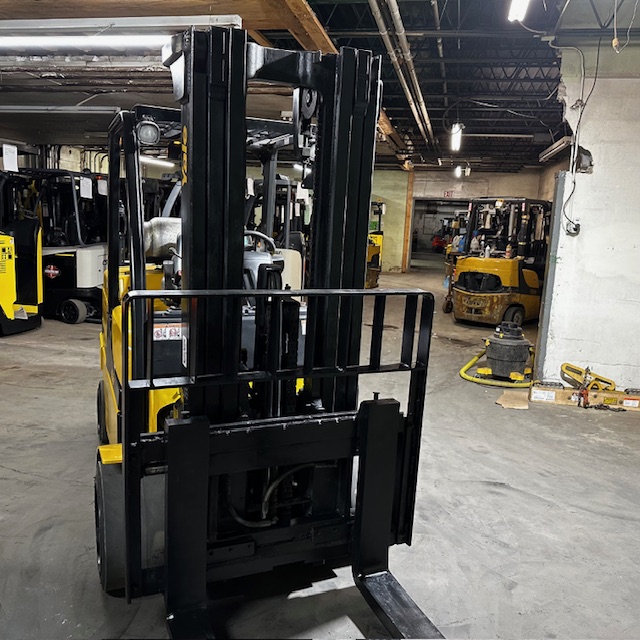

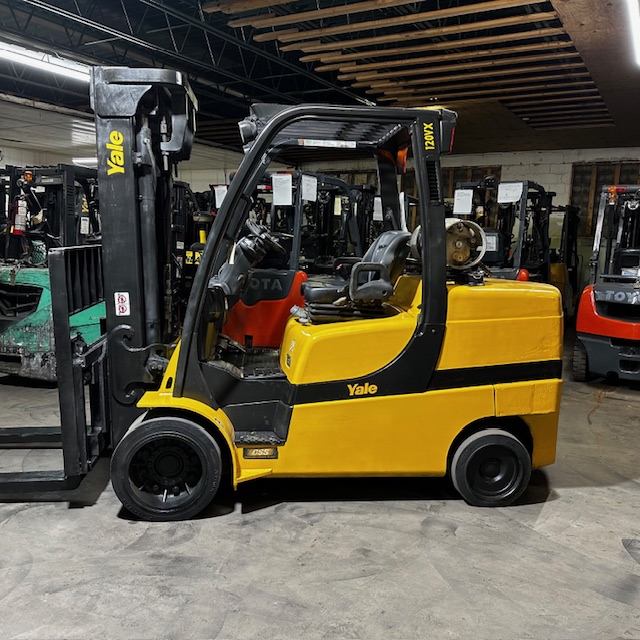

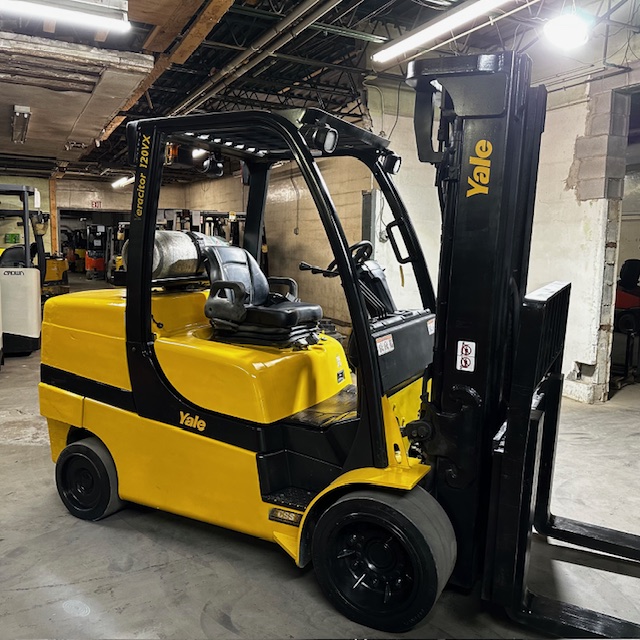

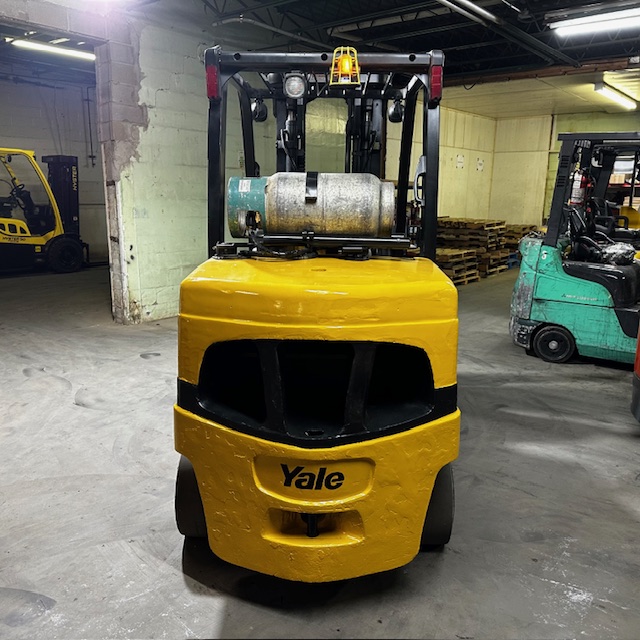

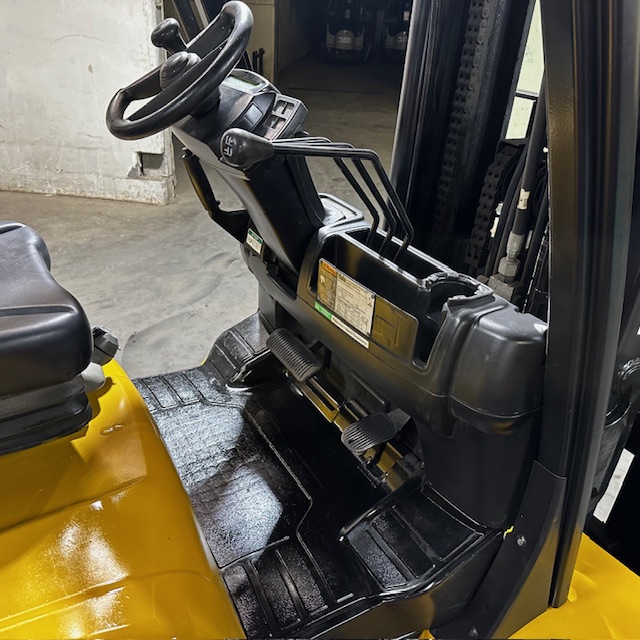

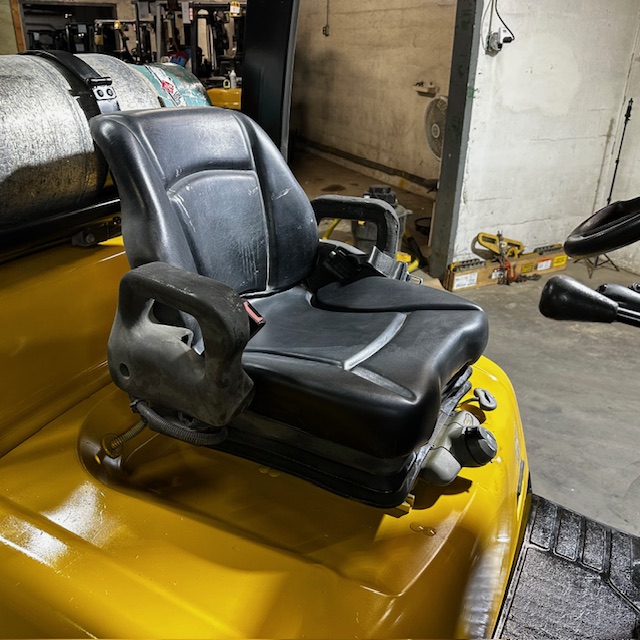

Yale GLC120VX Reference Images
Used Forklifts, Fair Prices
Looking for affordable used Yale forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
