| Attribute | Value |
|---|---|
| Make | Yale |
| Model | ERP040VT |
| Forklift Type | Three Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 4000/1814 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tilt – standard (forward/back) | 5.0/5.0 degrees |
| Length to Fork Face (in/mm) | 74.9/1903 |
| Width – standard tires (in/mm) | 43.9/1116 |
| Height to Top of Overhead Guard | Std (in/mm): 81.5/2070 Flat Plate (in/mm): 77.9/1979 Drive in Rack (in/mm): 81.5/2070 |
| Turning radius (in/mm) | 1)69.2/1757 2)71.9/1825 3)74.2(1884) |
| Right Angle Stack (in/mm) | 122.7/3117 |
| Weight without battery (lbs/kg) | 5270/2390 |
| Front Tire Size | 200 / 50-10 |
| Rear Tire Size | 15 x 4.5-8 |
| Wheelbase (in/mm) | 54.6/1386 |
Yale ERP040VT Reference Video

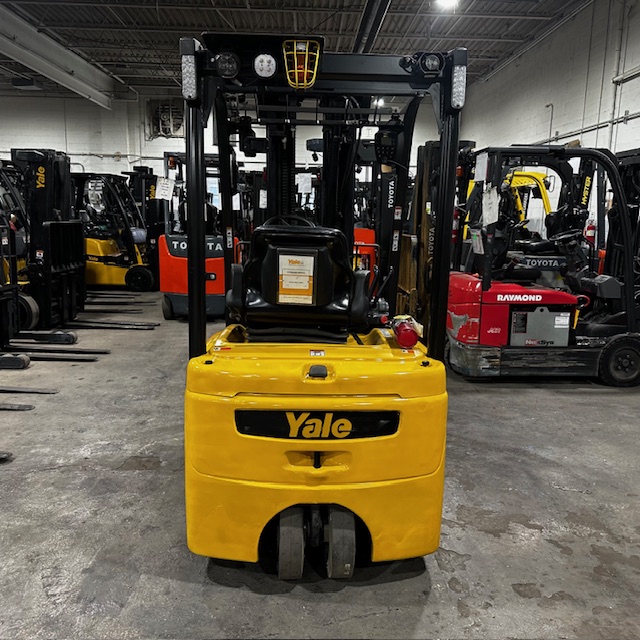

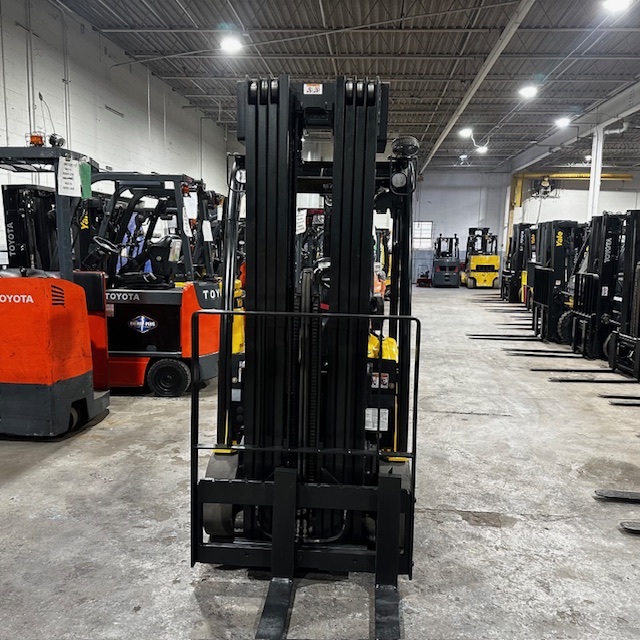

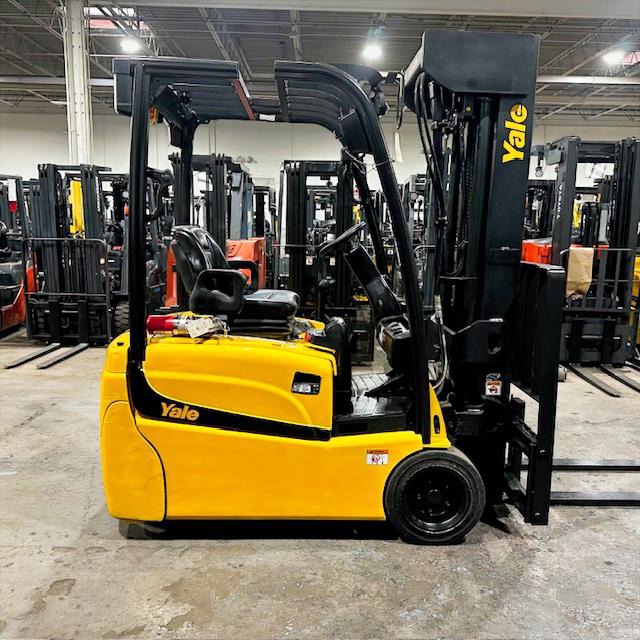

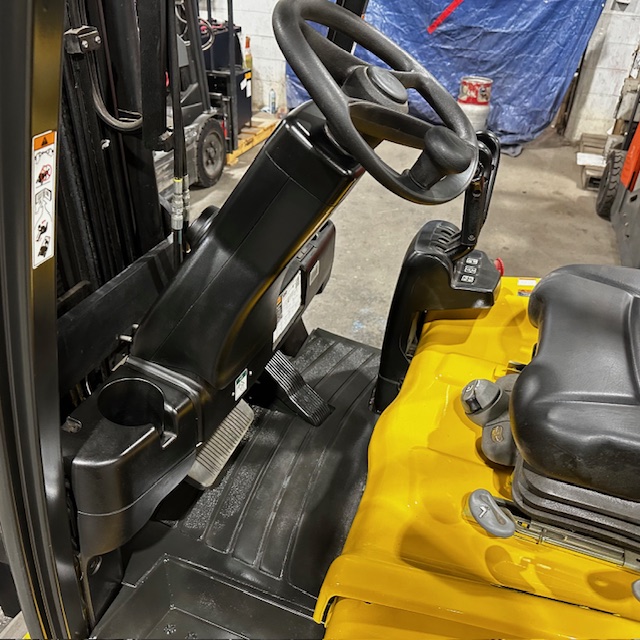

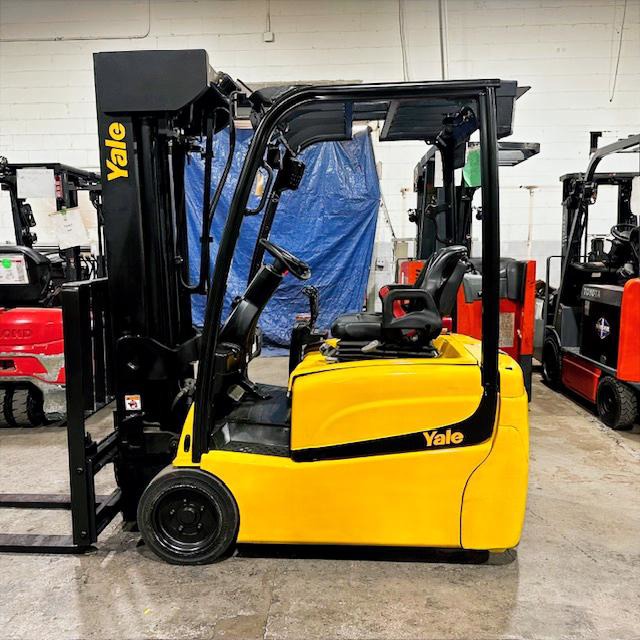

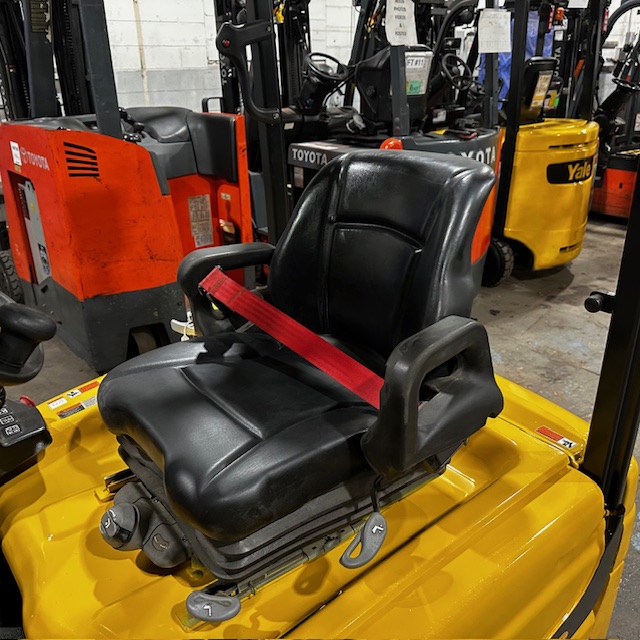

Yale ERP040VT Reference Images
Yale ERP040VT Battery and Charger
Buy replacement batteries and chargers for the Yale ERP040VT forklift directly from our website.
