Forklift Specifications / Toyota / Toyota 8BNCU15

Toyota 8BNCU15 Forklift Specifications

Specifications

Make Toyota
Model 8BNCU15
Forklift Type Stand Up Counterbalance
Basic Capacity (lbs/kg) 3000/1360
Load Center (in/mm) 24/610
Power Electric – 36 Volts
Battery Type Lead Acid
Tilt – standard (forward/back) 3.0/5.0 degrees
Length to Fork Face – 16.5" Battery Box (in/mm) 68.5/1741 Length to Fork Face – 18.5" Battery Box (in/mm): 70.5/1791
Height to Top of Overhead Guard (in/mm) 88/2235
Turning radius – 16.5" Battery Box (in/mm) 56.1/1425
Turning radius – 18.5" Battery Box (in/mm) 58.1/1476
Basic Right-Angle Stack Aisle Width – 16.5" Battery Box (in/mm) 68.8/1748
Basic Right-Angle Stack Aisle Width – 18.5" Battery Box (in/mm) 70.8/1798
Front Tire Size 16.25x6x11.25"
Rear Tire Size 10x5x6.5"
Wheelbase – 16.5" Battery Box (in/mm) 48.4/1230
Wheelbase – 18.5" Battery Box (in/mm) 50.4/1280
Total Weight w/o Battery – 16.5" Battery Box (lb/kg) 6625/3005
Total Weight w/o Battery – 18.5" Battery Box (lb/kg) 6865/3114

Reference Video

Toyota 8BNCU15

Used Forklifts, Fair Prices

Looking for affordable used Cat forklifts?

We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.

(216) 584-9897

used toyota forklifts

AttributeValue
Battery and ChargerGo to Specs
MakeToyota
Model8BNCU15
Forklift TypeStand Up Counterbalance
Basic Capacity (lbs/kg)3000/1360
Load Center (in/mm)24/610
PowerElectric – 36 Volts
Battery TypeLead Acid
Tilt – standard (forward/back)3.0/5.0 degrees
Length to Fork Face – 16.5″ Battery Box (in/mm)68.5/1741 Length to Fork Face – 18.5″ Battery Box (in/mm): 70.5/1791
Height to Top of Overhead Guard (in/mm)88/2235
Turning radius – 16.5″ Battery Box (in/mm)56.1/1425
Turning radius – 18.5″ Battery Box (in/mm)58.1/1476
Basic Right-Angle Stack Aisle Width – 16.5″ Battery Box (in/mm)68.8/1748
Basic Right-Angle Stack Aisle Width – 18.5″ Battery Box (in/mm)70.8/1798
Front Tire Size16.25x6x11.25″
Rear Tire Size10x5x6.5″
Wheelbase – 16.5″ Battery Box (in/mm)48.4/1230
Wheelbase – 18.5″ Battery Box (in/mm)50.4/1280
Total Weight w/o Battery – 16.5″ Battery Box (lb/kg)6625/3005
Total Weight w/o Battery – 18.5″ Battery Box (lb/kg)6865/3114

Toyota 8BNCU15 Reference Video

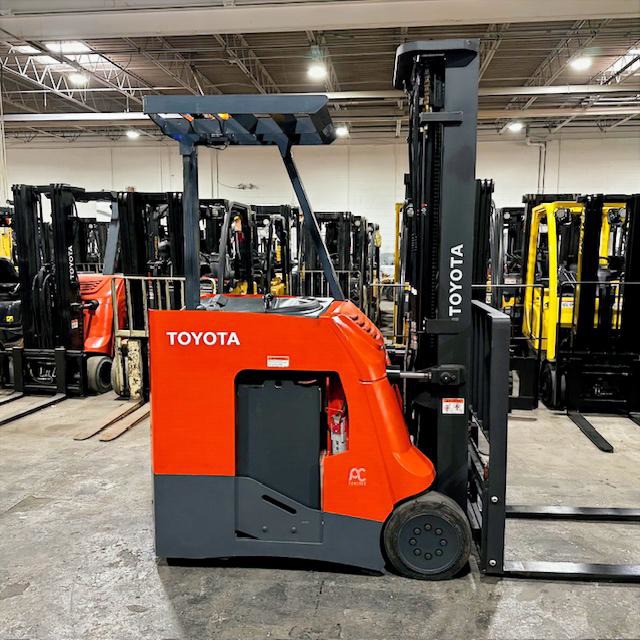

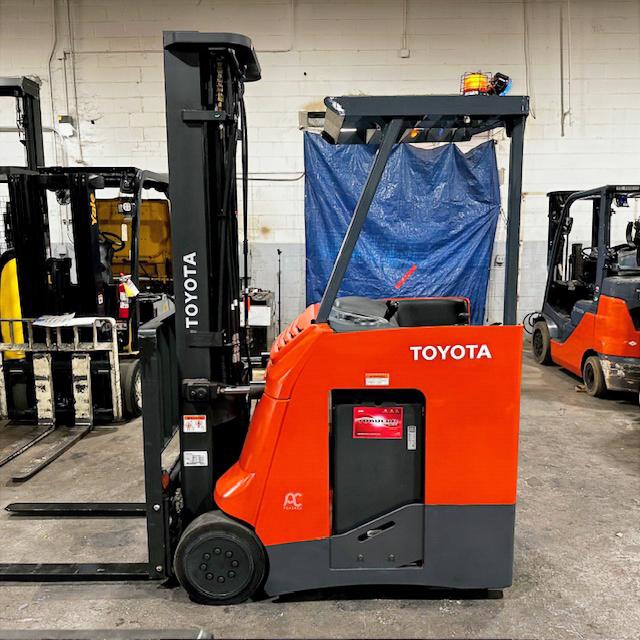

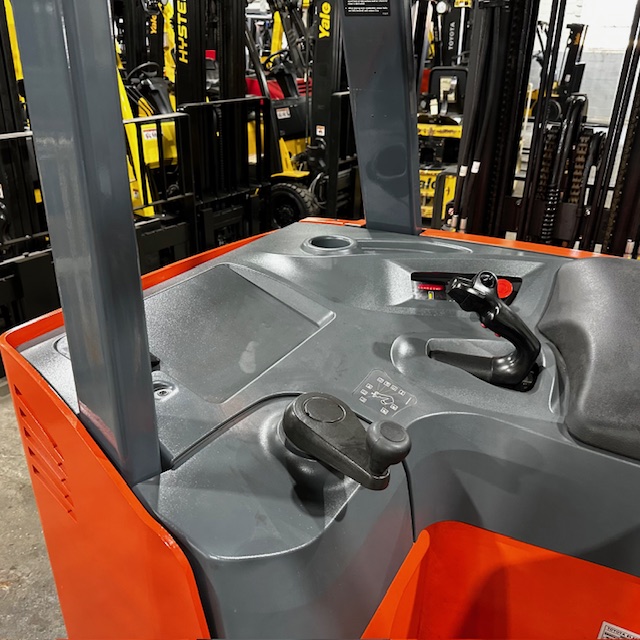

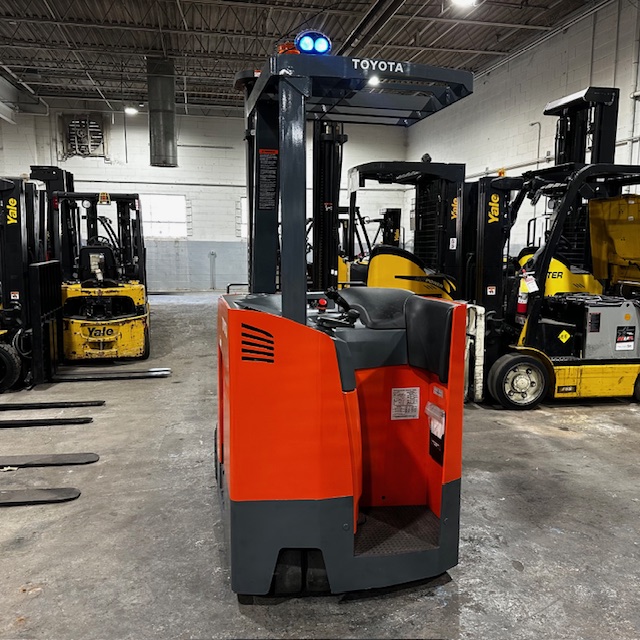

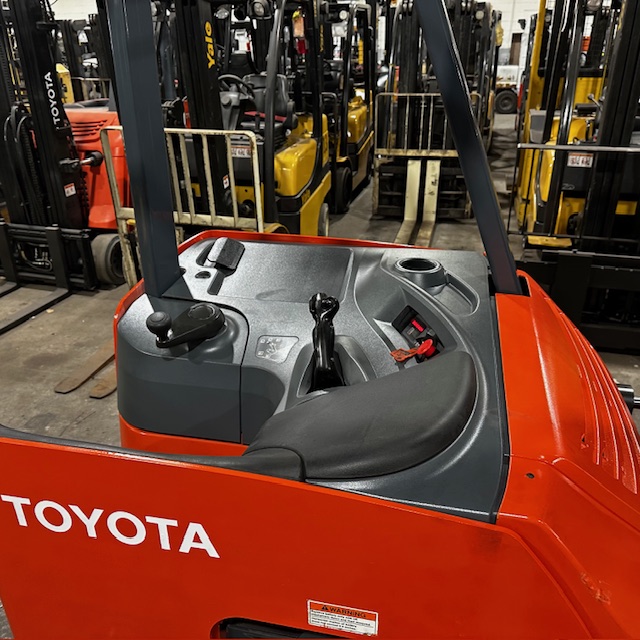

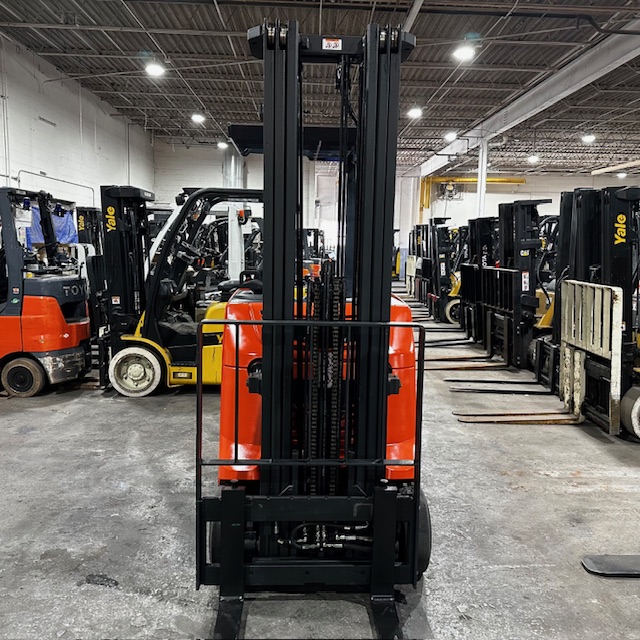

Toyota 8BNCU15 Reference Images

Toyota 8BNCU15 Battery and Charger

Buy replacement batteries and chargers for the Toyota 8BNCU15 forklift directly from our website.

36 Volts – 16.5″ Battery Box

AttributeValue
Box Dimensions38.50 x 18.50″ x 32.30″
Minimum Weight2300 lbs
Amp Hours875

36 Volts – 18.5″ Battery Box

AttributeValue
Box Dimensions38.50 x 16.50″ x 32.30″
Minimum Weight1980 lbs
Amp Hours750
