| Attribute | Value |
|---|---|
| Make | Hyundai |
| Model | 25L-7A Type: Pneumatic Tire – Internal Combustion |
| Basic Capacity – lb (kg) | 5000 (2268) |
| Load Center – in (mm) | 24 (610) |
| Power | LP Gas |
| Tire Type | Pneumatic |
| Tilt (forward/back) | 6.0/10.0 degrees |
| Length to Fork Face – in (mm) | 103.1 (2619) |
| Width (standard tires) – in (mm) | 45.7 (1161) |
| Height to Top of Overhead Guard – in (mm) | 85.0 (2159) |
| Turning radius (outside) – in (mm) | 90.5 (2299) |
| Weight with two stage mast – lb (kg) | 8170 (3706) |
| Fork Carriage ITA Class | II |
| Front Tire Size | 7.00 x 12 – 12PR |
| Rear Tire Size | 6.50 x 10 – 12PR |
| Wheelbase – in (mm) | 65.0 (1651) |
| Engine | HMC L4KB |
Hyundai 25L-7A Reference Video

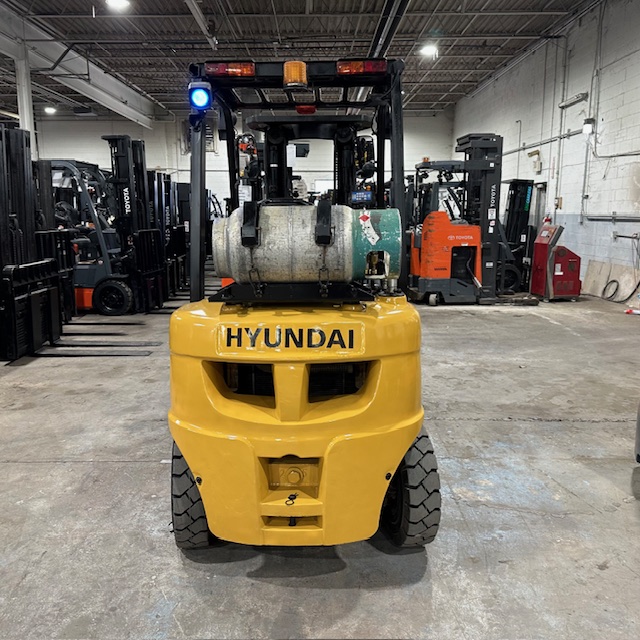

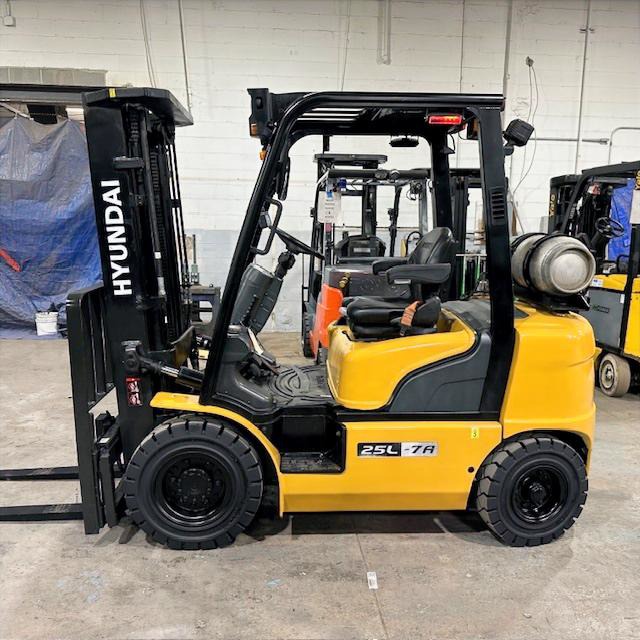

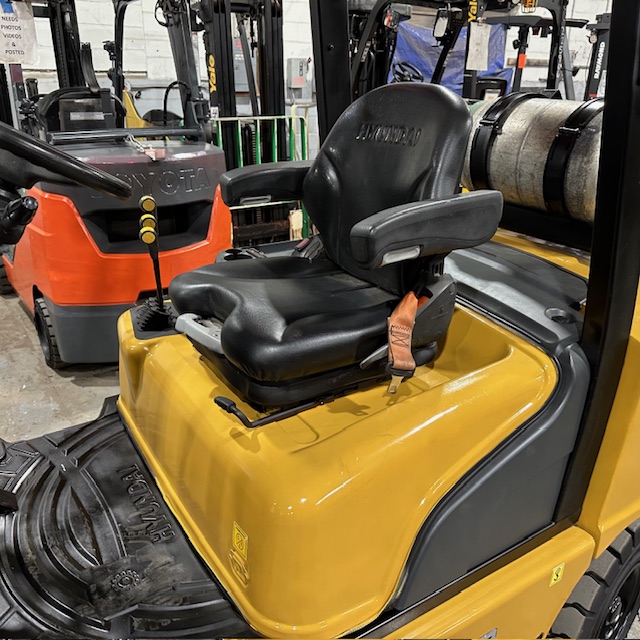

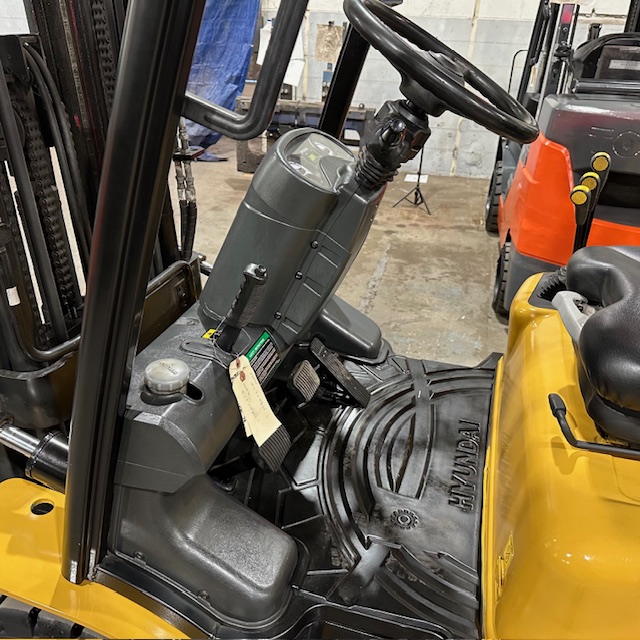

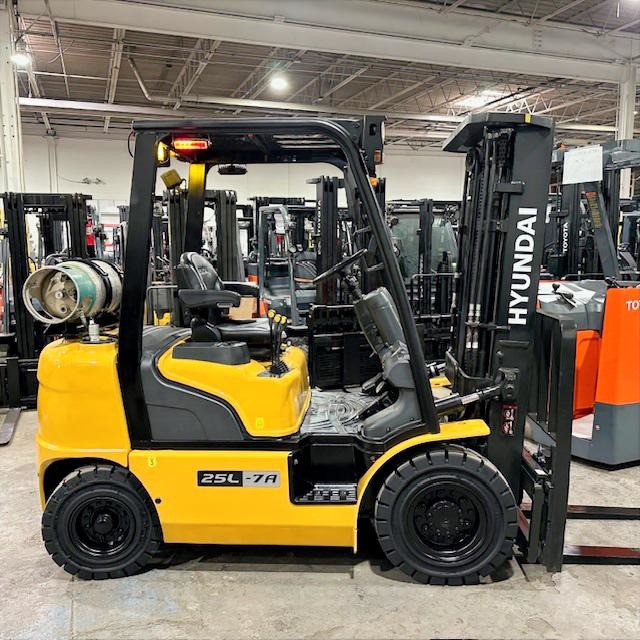

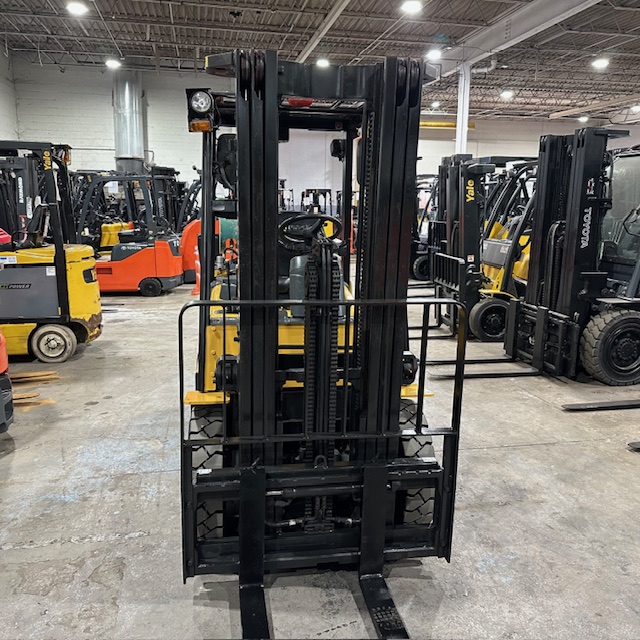

Hyundai 25L-7A Reference Images
