| Attribute | Value |
|---|---|
| Make | Hyster |
| Model | E65XN |
| Type | Four Wheel Electric |
| Basic Capacity (lbs/kg) | 6500/2948 |
| Load Center (in/mm) | 24/610 |
| Power | Electric |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 5/5 degrees |
| Length to Fork Face – 36″ Battery Box (in/mm) | 90/2285 |
| Length to Fork Face – 40″ Battery Box (in/mm) | 92.2/2343 |
| Width – Standard (in/mm) | 43.6/1108 |
| Width – Wide Tread (in/mm) | 48.9/1242 |
| Height to Top of Overhead Guard Standard (in/mm) | 88.5/2248 |
| Turning radius – 36″ Battery Box (in/mm) | 79.1/2008 |
| Turning radius – 40″ Battery Box (in/mm) | 81.7/2074 |
| Right Angle Stack – 36″ Battery Box (in/mm) | 142.9/3629 |
| Right Angle Stack – 40″ Battery Box (in/mm) | 145.5/3695 |
| Weight with 2-StageLFL Mast – no batt – 36″ Battery Box (lbs/kg) | 7400/3357 |
| Weight with 2-StageLFL Mast – no batt – 40″ Battery Box (lbs/kg) | 7040/3193 |
| Front Tire Size – standard | 21 x 8 x 15 |
| Rear Tire Size – standard | 16 x 6 x 10.5 |
| Wheelbase – 36″ Battery Box (in/mm) | 57.6/1463 |
| Wheelbase – 40″ Battery Box (in/mm) | 60.8/1545 |
Hyster E65XN Reference Video

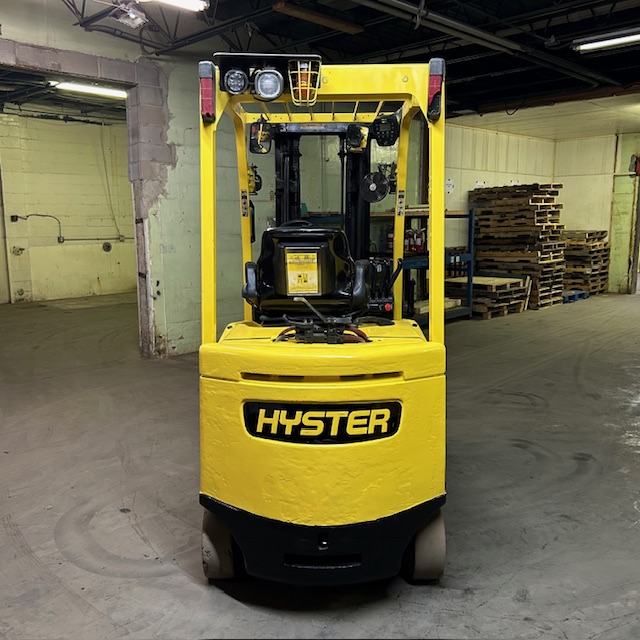

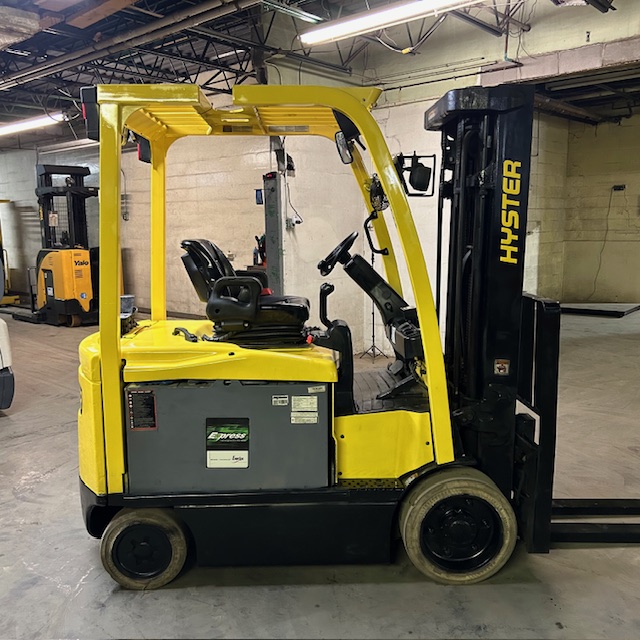

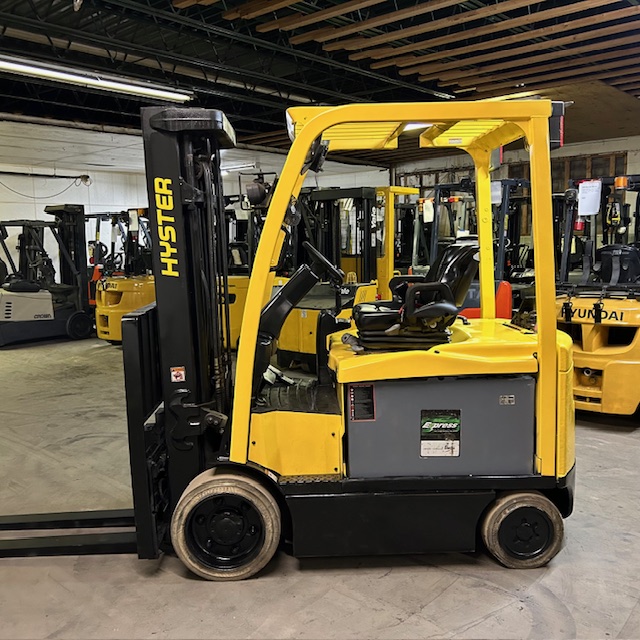

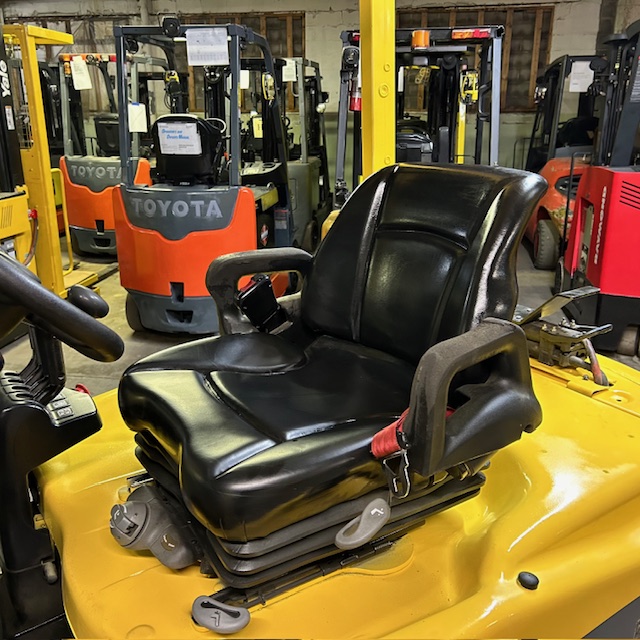

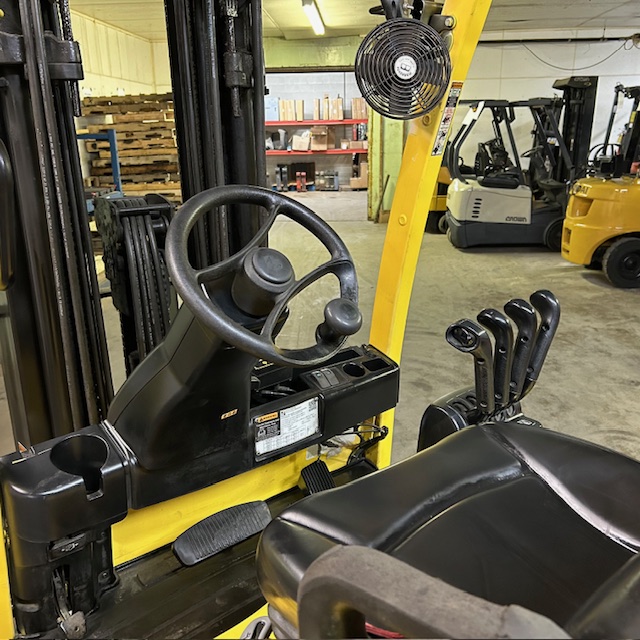

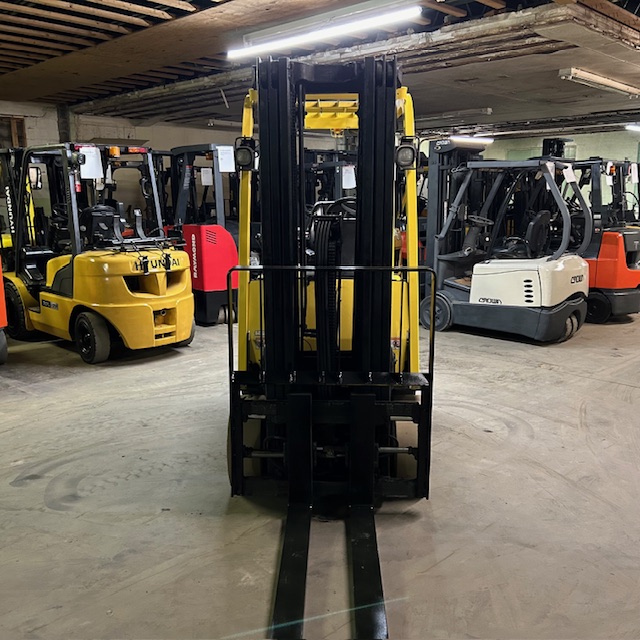

Hyster E65XN Reference Images
Hyster E65XN Battery and Charger
Buy replacement batteries and chargers for the Hyster E65XN forklift directly from our website.
36 Volts – 36″ Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10″ x 36.70″ x 23.90″ |
| Amp Hour Capacity | 1275 |
| Minimum Weight | 3100 lbs |
36 Volts – 40″ Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10″ x 40.00″ x 23.90″ |
| Amp Hour Capacity | 1360 |
| Minimum Weight | 3400 lbs |
48 Volts – 36″ Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10″ x 36.70″ x 23.90″ |
| Amp Hour Capacity | 935 |
| Minimum Weight | 3100 lbs |
48 Volts – 40″ Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10″ x 40.00″ x 23.90″ |
| Amp Hour Capacity | 1020 |
| Minimum Weight | 3400 lbs |
