| Attribute | Value |
|---|---|
| Make | Hyster |
| Model | E40HSD3 |
| Forklift Type | Stand Up Electric |
| Capacity (lb/kg) | 4000/1814 |
| Fuel Type | Electric – 36 Volts |
| Load Center (in/mm) | 24/610 |
| Tilt Standard (degrees) | 5 Forward / 5 Back |
| Tilt Optional (degrees) | 10 Forward / 5 Back |
| Overhead Guard Height – Standard (in/mm) | 88/2234 |
| Overhead Guard Height – Optional (in/mm) | 83/2108 |
| Overall Width (in/mm) | 42/1067 |
| Standard Carriage Width (in/mm) | 38.5/978 |
| Length To Face of Forks 20.8″ Battery Box (in/mm) | 69.3/1759 |
| Wheelbase 20.8″ Battery Box (in/mm) | 46.3/1177 |
| Turning Radius 20.8″ Battery Box (in/mm) | 57.4/1458 |
| Truck Weight Radius 20.8″ Battery Box (lb/kg) | 6801/3085 |
Hyster E40HSD3 Reference Video

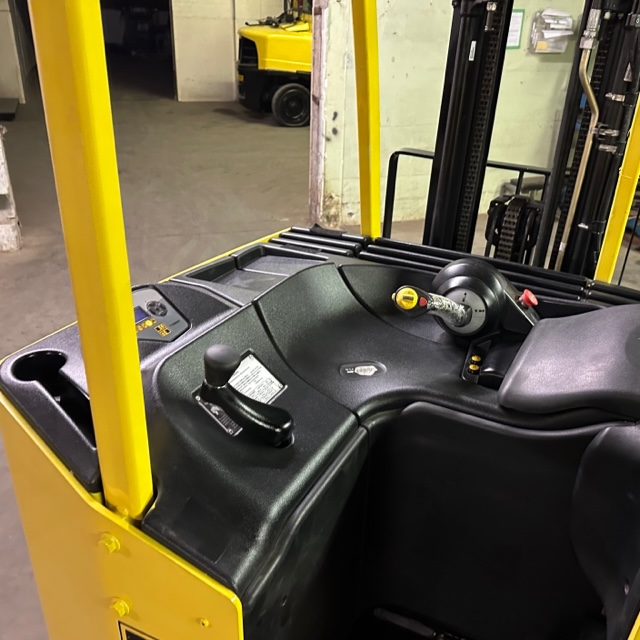

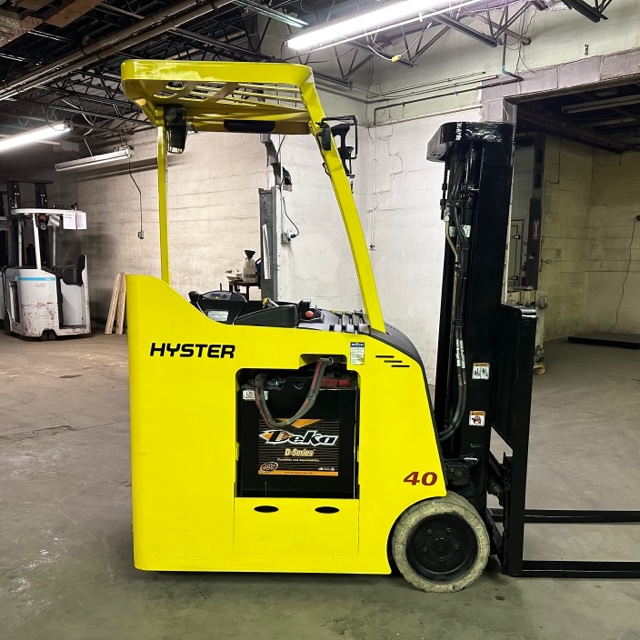

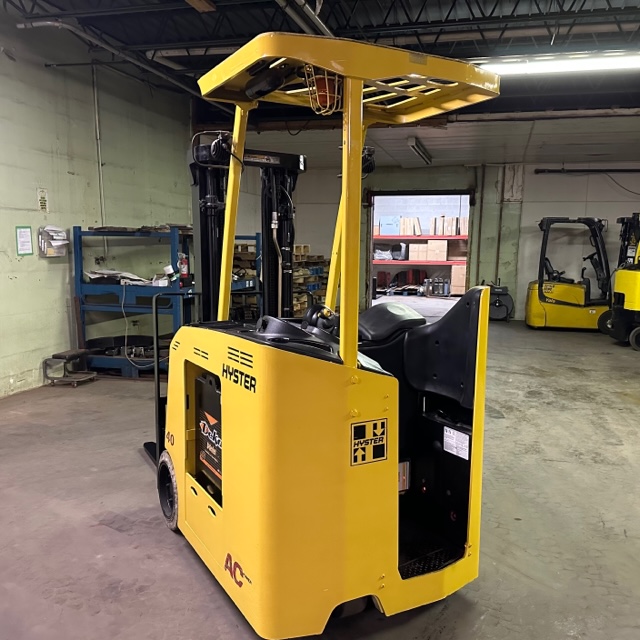

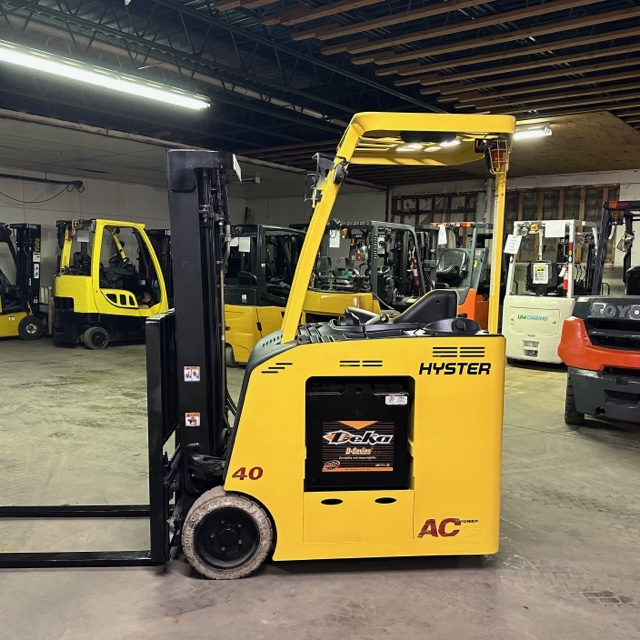

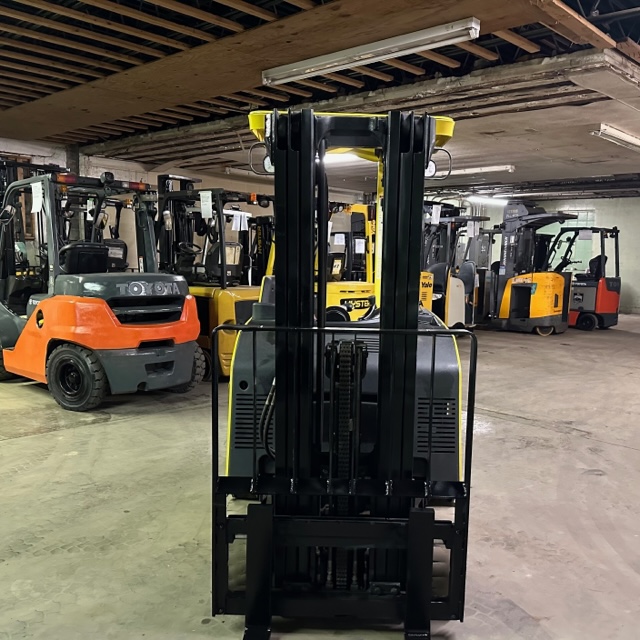

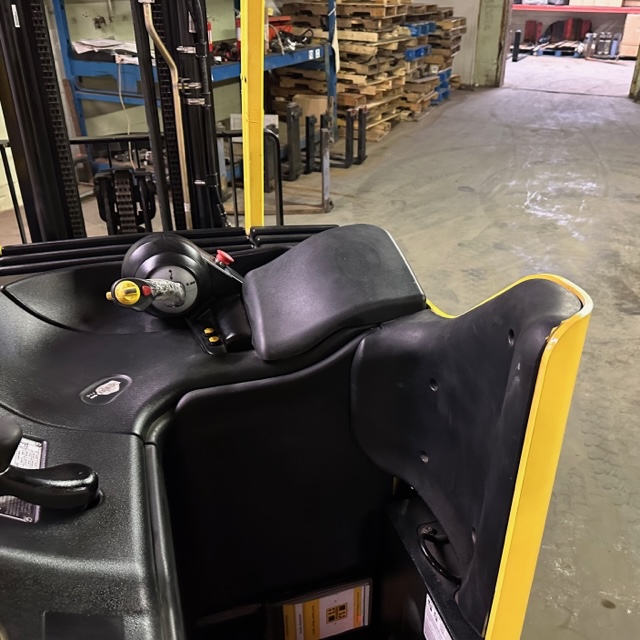

Hyster E40HSD3 Reference Images
Hyster E40HSD3 Battery and Charger
Buy replacement batteries and chargers for the Hyster E40HSD3 forklift directly from our website.
