| Attribute | Value |
|---|---|
| Make | Crown |
| Model | SC5225-30 |
| Type | Three Wheel Electric Sit Down |
| Load Capacity (lb/kg) | 3000/1361 |
| Load Center (in/mm) | 24/600 |
| Tire Type | Cushion |
| Fork Carriage | ITA Class II |
| Tilt (forward/back) | 5/5 degrees |
| Overall Width (in/mm) | 42/1067 |
| Length to Fork Face (in/mm) | 72.8/1849 |
| Height (in/mm) | 83/2110 |
| Turning Radius (in/mm) | 58.5/1486 |
| Weight without battery (lb/kg) | 5974/2710 |
| Front Tires | 18x7x12.1 |
| Rear Tires | 15x5x11.25 |
| Wheelbase (in/mm) | 50.5/1283 |
Crown SC5225-30 Reference Video

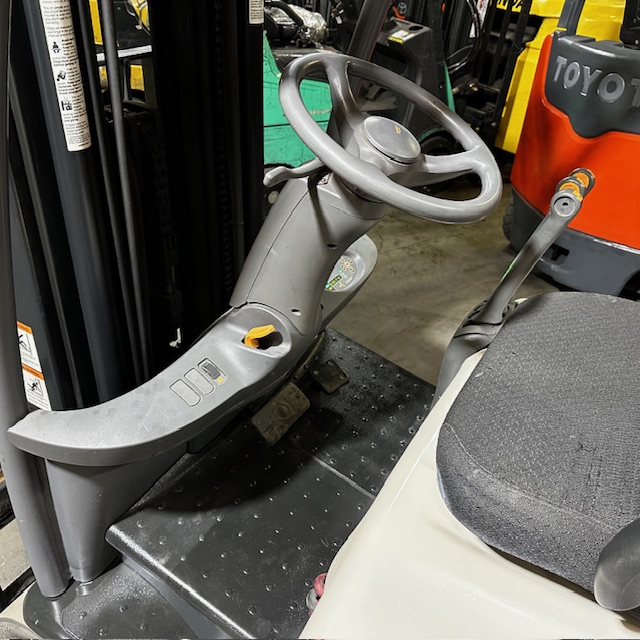

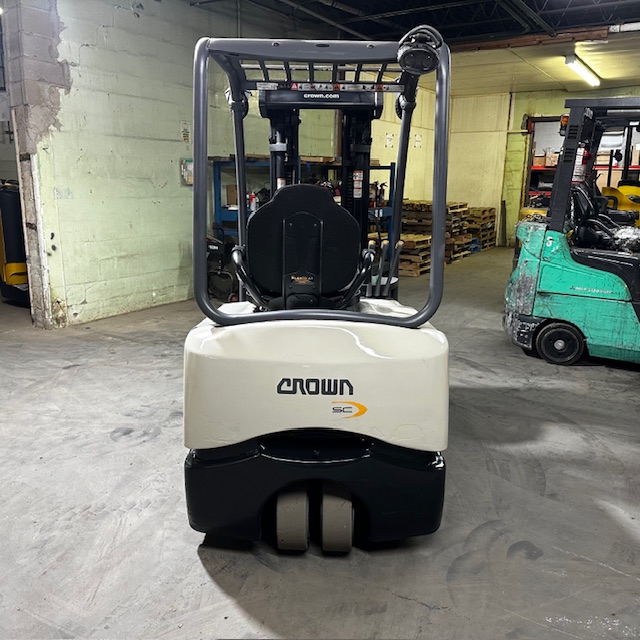

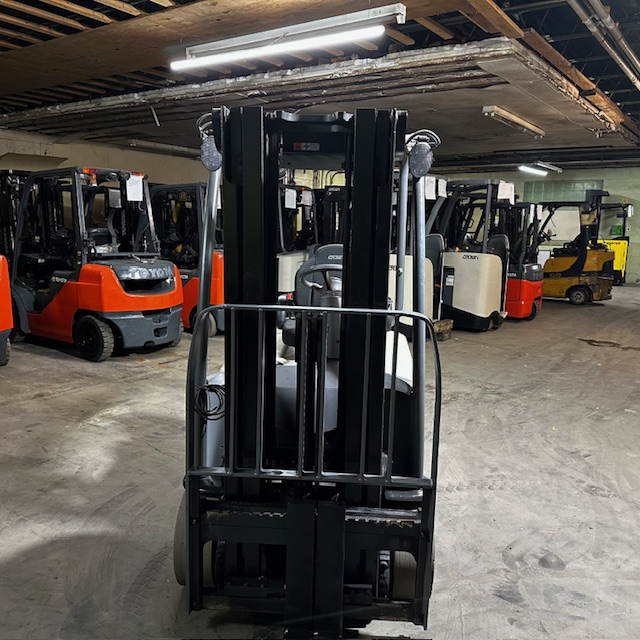

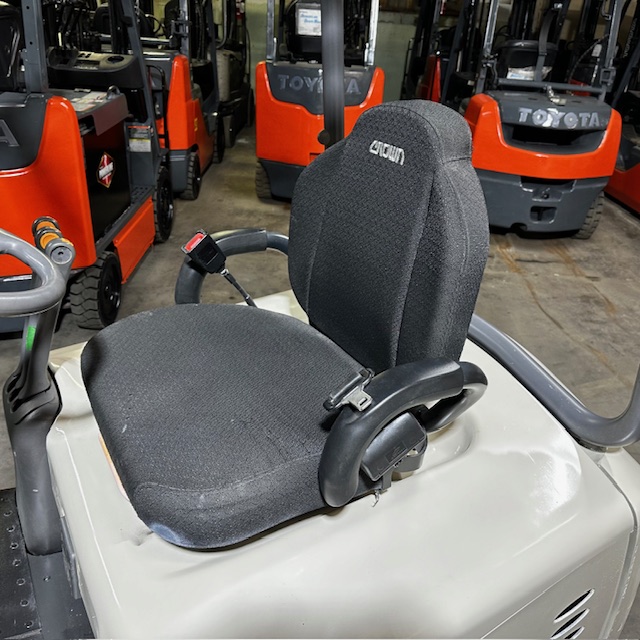

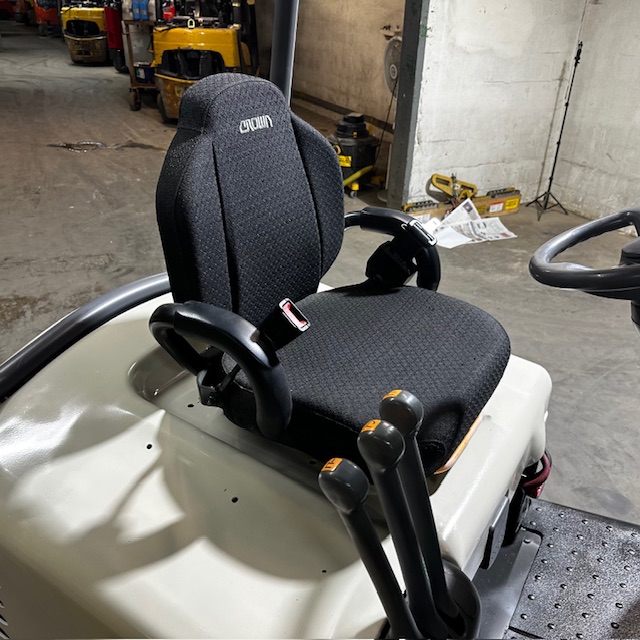

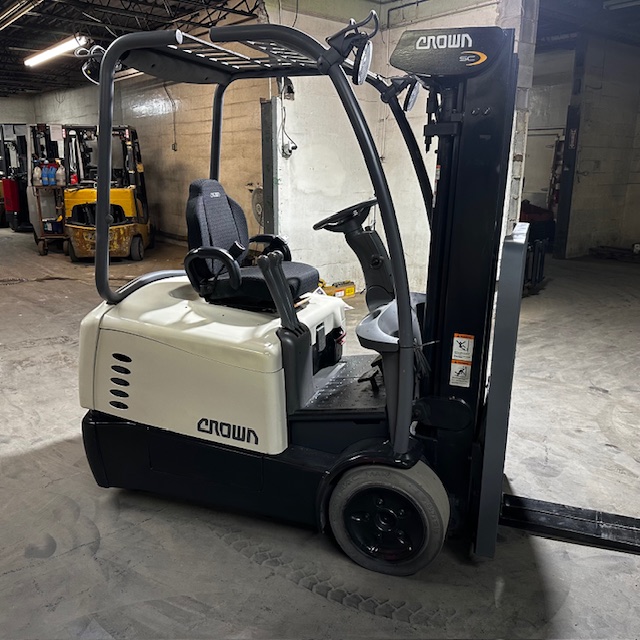

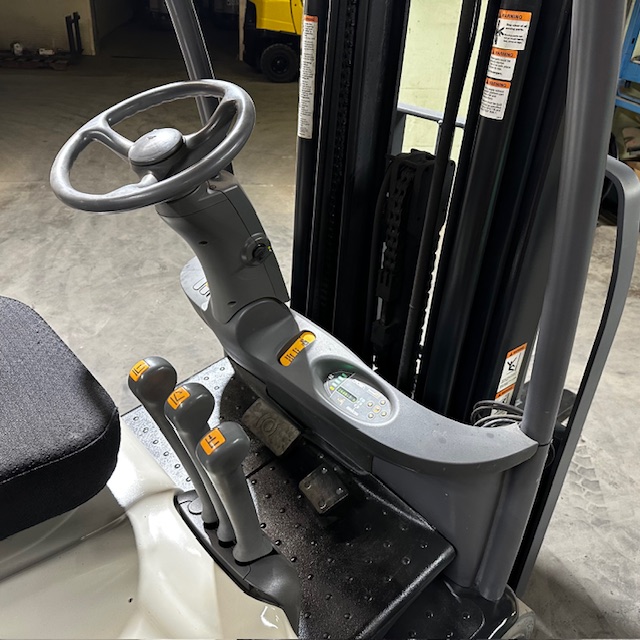

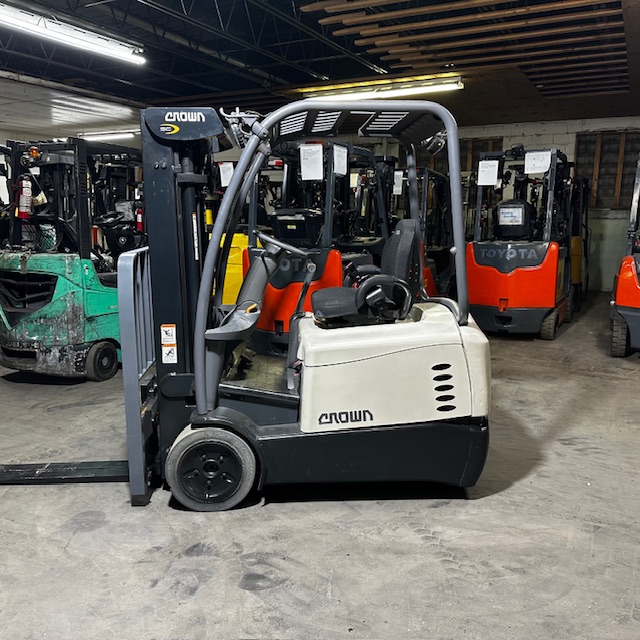

Crown SC5225-30 Reference Images
Crown SC5225-30 Battery and Charger
Buy replacement batteries and chargers for the Crown SC5225-30 forklift directly from our website.
36 Volts
| Attribute | Value |
|---|---|
| Amp Capacity | 680 |
| Min Weight (lb/kg) | 1850/840 |
| Max Weight (lb/kg) | 2250/1025 |
| Max Dimensions (in/mm) | 20.87 x 38.81 x 22.63/530x986x579 |
48 Volts
| Attribute | Value |
|---|---|
| Amp Capacity | 540 |
| Min Weight | 1850 lbs |
| Max Weight | 2250 lbs |
| Max Dimensions | 20.87 x 38.81 x 22.80″ |
Used Forklifts, Fair Prices
Looking for affordable used Crown forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
Use this section to ask questions and leave comments about the Crown SC5225-30 forklift.
