Hyster S50FT Forklift Specifications
Make: Hyster
Model: S50FT
Type: Cushion Tire Internal Combustion
Basic Capacity (lbs/kg): 5000/2268
Load Center (in/mm): 24/610
Power: LPG
Engine: PSI 2.4L/Kubota 2.5L
Tire Type: Cushion Drive, Cushion Steer
Tilt - standard (forward/back): 5/5 degrees
Length to Fork Face (in/mm): 90.2/2291
Width - standard tires (in/mm): 42.0/1067
Width - wide tread tires (in/mm): 48.9/1242
Height to Top of Overhead Guard Standard (in/mm): 84/2128
Turning radius (in/mm): 78.7/2000
Right Angle Stack (in/mm): 94.1/2390
Weight with 2-StageLFL Mast(lbs/kg): 8587/3895
Front Tire Size: 21x7x15
Rear Tire Size: 16x5x10.5
Wheelbase (in/mm): 56.3/1430
S50FT Video For Reference

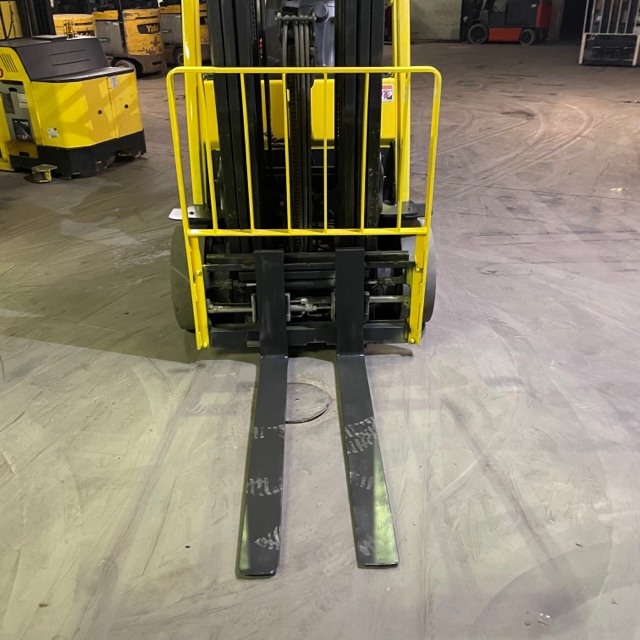

Hyster S50FT Images For Reference
Andy Guild –
Code 522737-10 is displayed. Oxygen sensor slow to respond.
Andy Guild –
Code 522592-0 – EPR Pressure Greater Than Commanded – A. WORN OR DAMAGED PRIMARY OR SECONDARY SEAT B. FAULTY ELECTRONIC PRESSURE REGULATOR (EPR) ELECTRICAL CONNECTIONS C. EPR FAILURE
Andy Guild –
The EPR can often be cleaned. Take off the intake hose and spray a carb clean type of product in the EPR, reconnect the hose and run the machine. Might need to repeat a few times.
