| Attribute | Value |
|---|---|
| Make | Yale |
| Model | ERC060VG |
| Forklift Type | Four Wheel Electric |
| Basic Capacity (lbs/kg) | 6000/2722 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48/80 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 5.0/5.0 degrees |
| Length to Fork Face (in/mm) | 86.5/2199 |
| Width – standard tires (in/mm) | 43.6/1108 |
| Width – wide tread (in/mm) | 48.9/1242 |
| Height to Top of Overhead Guard | Std (in/mm): 88.5/2248 Drive in rack (in/mm): 88.5/2248 Opt (in/mm): 86.5/2197 Opt flat plate (in/mm): 84.1/2137 |
| Turning radius (in/mm) | 75.4/1915 |
| Right Angle Stack (in/mm) | 139.2/3536 |
| Weight without battery (lbs/kg) | 7350/3334 |
| Front Tire Size | 21x8x15 |
| Rear Tire Size | 16x6x10.5 |
| Wheelbase (in/mm) | 54.2/1377 |
ERC060VG Reference Video

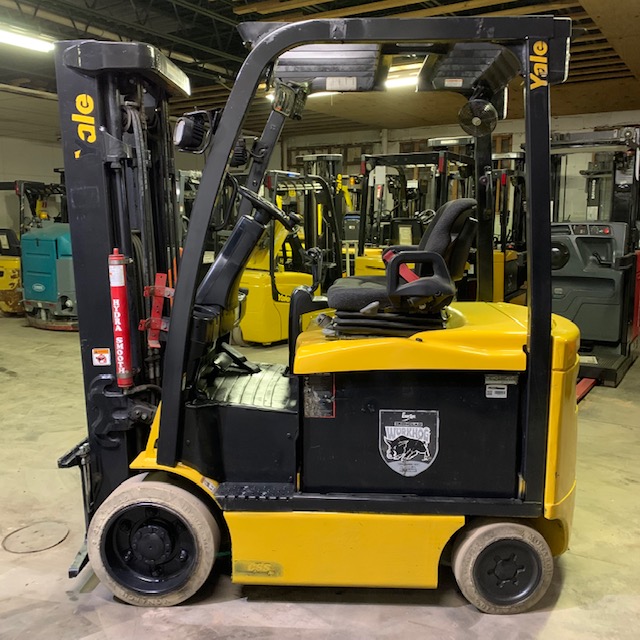

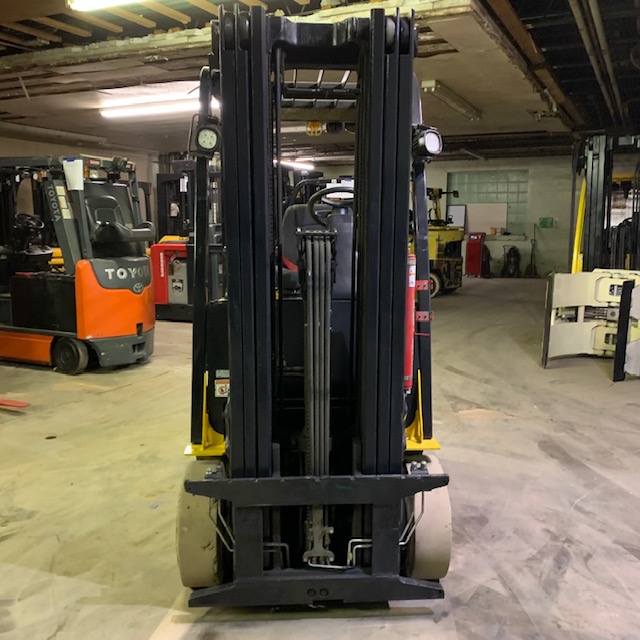

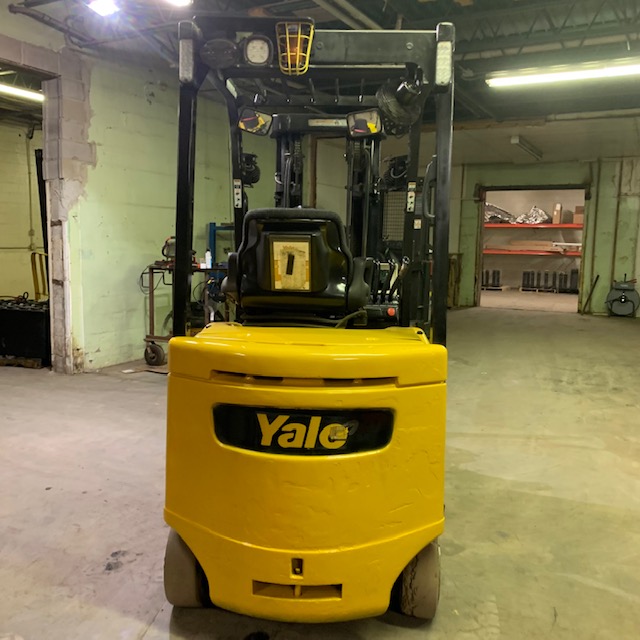

ERC060VG Reference Images
Yale ERC060VG Forklift Charger & Battery
The Yale ERC060VG has one battery compartment size and three voltage options.
36 Volts
| Attribute | Value |
|---|---|
| Min Weight | 2900 lbs |
| Max Amp Hours | 1300 |
| Battery Compartment Size | 39.10″ x 33.30″ x 23.90″ |
48 Volts
| Attribute | Value |
|---|---|
| Min Weight | 2900 lbs |
| Max Amp Hours | 1000 |
| Battery Compartment Size | 39.10″ x 33.30″ x 23.90″ |
80 Volts
| Attribute | Value |
|---|---|
| Min Weight | 2900 lbs |
| Max Amp Hours | 450 |
| Battery Compartment Size | 39.10″ x 33.30″ x 23.90″ |
- New Power Point 80 Volts 80 Amps Three Phase Charger
- Battery Model – 40-85-11
