Attribute | Value |
---|---|

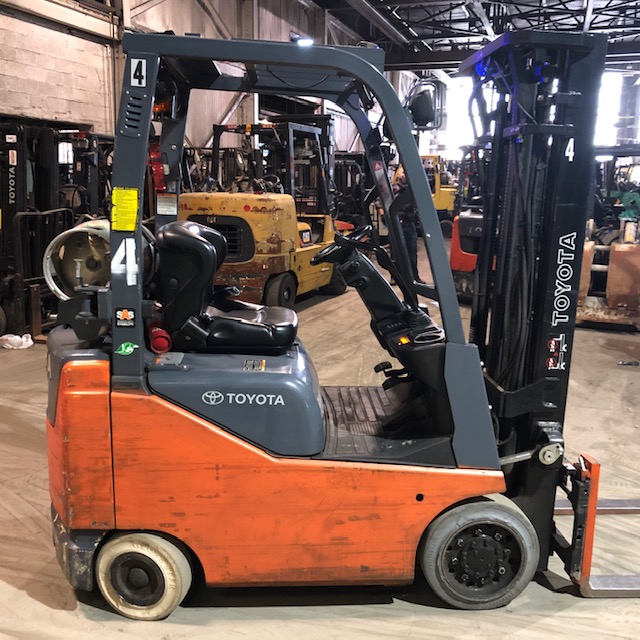

Make | Toyota |
Model | 8FGCU15 |
Forklift Type | Internal Combustion Cushion Tire |
Basic Capacity - lb (kg) | 3000 (1350) |
Load Center - in (mm) | 15.7 (400) |
Power | LP Gas |
Tire Type | Cushion |
Tilt (forward/back) | 6.0/10.0 degrees |
Length to Fork Face - in (mm) | 82.3 (2090) |
Width (standard tires) - in (mm) | 37.2 (945) |
Height to Top of Overhead Guard - in (mm) | 80.1 (2035) |
Rear Overhang - in (mm) | 18.3 (465) |
Turning radius (inside/outside) - in (mm) | 67.5 (1720) |
Weight - lb (kg) | 5890 (2670) |
Front Tire Size | 18.0 x 6.0 x 12.125 |
Rear Tire Size | 14.0 x 4.5 x 8 |
Wheelbase - in (mm) | 48.2 (1225) |
Engine | Toyota 4Y - ECS |
Cylinders | 4 |
Horsepower | 48 |
