| Attribute | Value |
|---|---|
| Make | Toyota |
| Model | 8FBES15U |
| Forklift Type | Three Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 3000/1360 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |

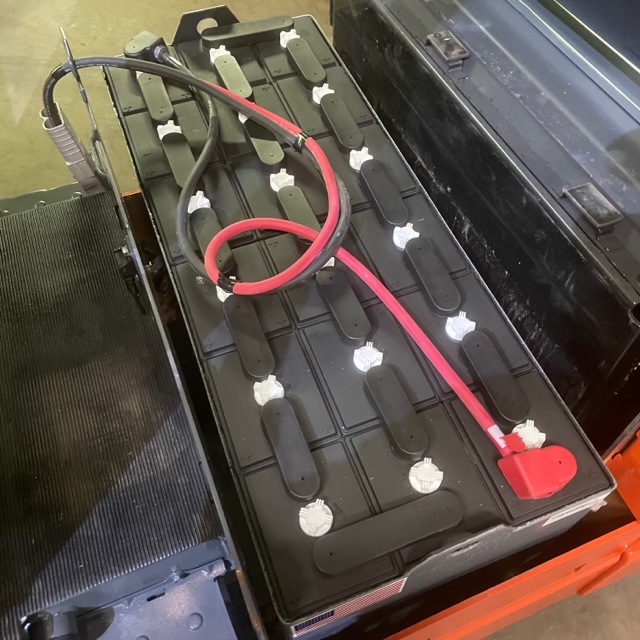

| Battery Type | Lead Acid |
| Tilt – standard (forward/back) | 5/6.5 degrees |
| Length to Fork Face (in/mm) | 69/1753 |
| Width – standard tires (in/mm) | 41.5/1054 |
| Height to Top of Overhead Guard (in/mm) | 81/2057 |
| Turning radius (in/mm) | 55.1/1400 |
| Right Angle Stack (in/mm) | 68.9/1750 |
| Weight without battery (lbs/kg) | 5090/2309 |
| Front Tire Size – Cushion | 18x7x12-1/8 |
| Rear Tire Size – Cushion | 15x5x11-1/4 |
| Front Tire Size – Pneumatic | 18×7-8-16PR |
| Rear Tire Size – Pneumatic | 16×6-8-10PR |
| Wheelbase (in/mm) | 51.6/1310 |
Related Products
Mollit consequat adipisicing in commodo fugiat. Quis voluptate pariatur ex mollit exercitation.
36 Volts – 17" Box
| Attribute | Value |
|---|---|
| Battery Box Dimensions | 39.00" x 16.80" x 24.10" |
| Connector | SB350 Gray |
| Amp Hour Capacity | 510 |
36 Volts – 18" Box
| Attribute | Value |
|---|---|
| Battery Box Dimensions | 39.20" x 17.70" x 24.50" |
| Connector | SB350 Gray |
| Amp Hour Capacity | 510 |
Used Forklifts, Fair Prices
Looking for affordable used Toyota forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
Please follow and like us:
Please provide quote on 2016 Toyota 8FBES15U forklift
