Home / Toyota / Toyota 8FBE15U

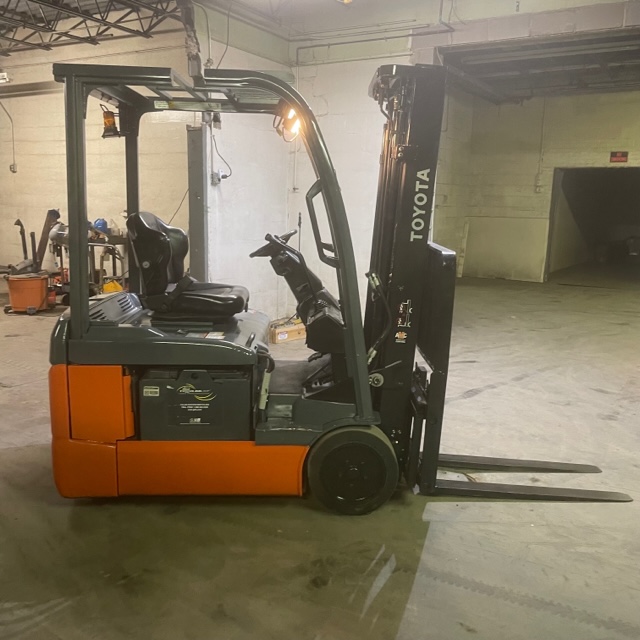

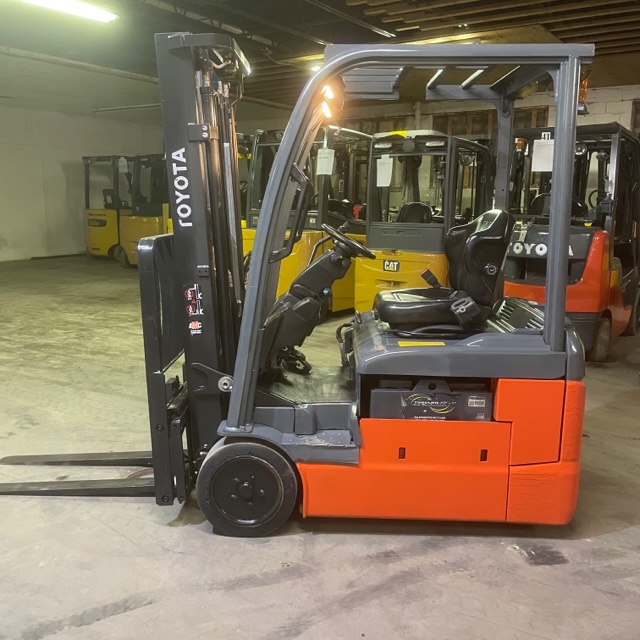

Toyota 8FBE15U

Attribute Value
Make Toyota
Model 8FBE15U
Forklift Type Three Wheel Electric Rider
Basic Capacity (lbs/kg) 3000/1360
Load Center (in/mm) 24/610
Power Electric – 36/48 Volts
Battery Type Lead Acid
Tilt – standard (forward/back) 5/6.5 degrees
Length to Fork Face (in/mm) 72/1829
Width – standard tires (in/mm) 41.5/1054
Height to Top of Overhead Guard (in/mm) 81/2057
Turning radius (in/mm) 58.3/1481
Right Angle Stack (in/mm) 72.1/1831
Weight without battery (lbs/kg) 4620/2095
Front Tire Size – Cushion 18x7x12-1/8
Rear Tire Size – Cushion 15x5x11-1/4
Front Tire Size – Pneumatic 18×7-8-16PR
Rear Tire Size – Pneumatic 16×6-8-10PR
Wheelbase (in/mm) 51.6/1310

Related Products

Mollit consequat adipisicing in commodo fugiat. Quis voluptate pariatur ex mollit exercitation.

36 Volts – 21" Battery Box

Attribute Value
Minimum Weight 1543 lbs
Recommended Capacity 680 AH
Box Dimensions 39.2" x 20.70" x 23.10"

48 Volts – 21" Battery Box

Attribute Value
Minimum Weight 1543 lbs
Recommended Capacity 510 AH
Box Dimensions 39.00" x 20.70" x 23.10"

Used Forklifts, Fair Prices

Please follow and like us:

Comments (1)

Showing comments from the original product page.

Leave a Comment

Your email address will not be published. Required fields are marked *

  1. We had an issue with the strobe and rear proximity light staying on even when the machine was turned off. We found a wire going to one headlight was damaged and was shorting to the frame. We taped the wire and the issue went away.
