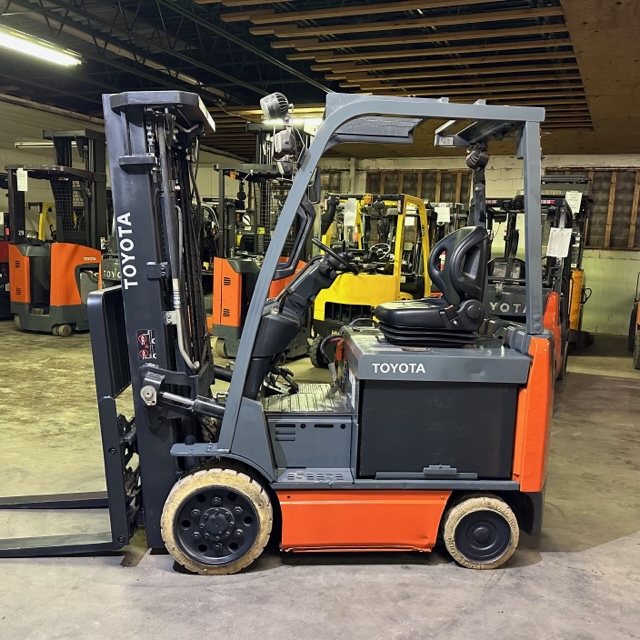

| Make | Toyota |
| Model | 8FBCU28 |
| Forklift Type | Four Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 5500/2750 |
| Load Center (in/mm) | 24/610 |
| Power | Electric - 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt - standard (forward/back) | 6/8 degrees |
| Length to Fork Face (in/mm) | 87.6/2225 |
| Width - standard tires (in/mm) | 43.7/1110 |
| Height to Top of Overhead Guard (in/mm) | 88/2235 |
| Turning radius (in/mm) | 72.6/1845 |
| Right Angle Stack (in/mm) | 90.3/2295 |
| Weight without battery (lbs/kg) | 8060/3655 |
| Front Tire Size | 21x7x15 |
| Rear Tire Size | 16x5x10.5 |
| Wheelbase (in/mm) | 51.0/1295 |
