Home / Toyota / Toyota 8FBCU20-COMP

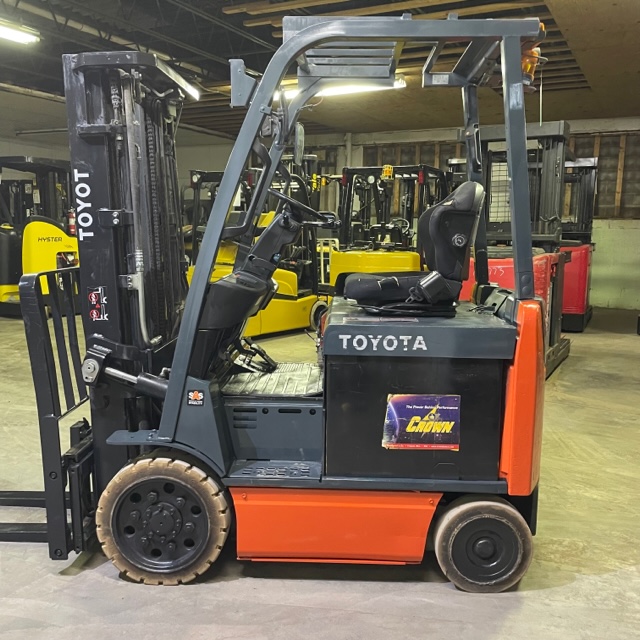

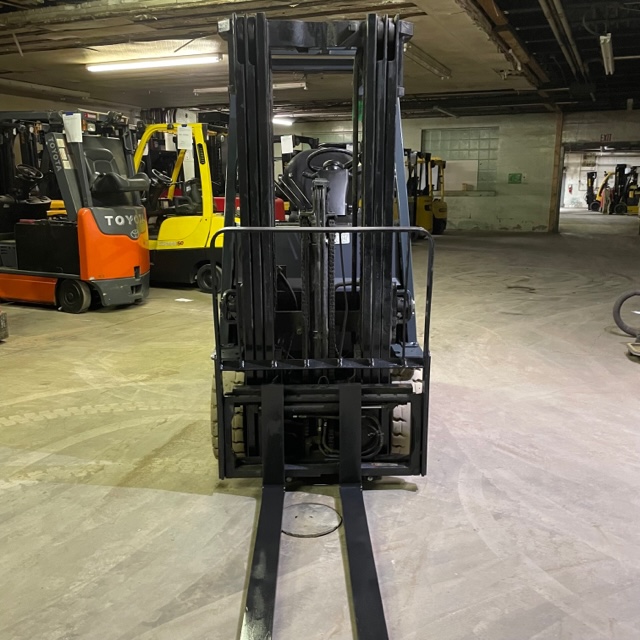

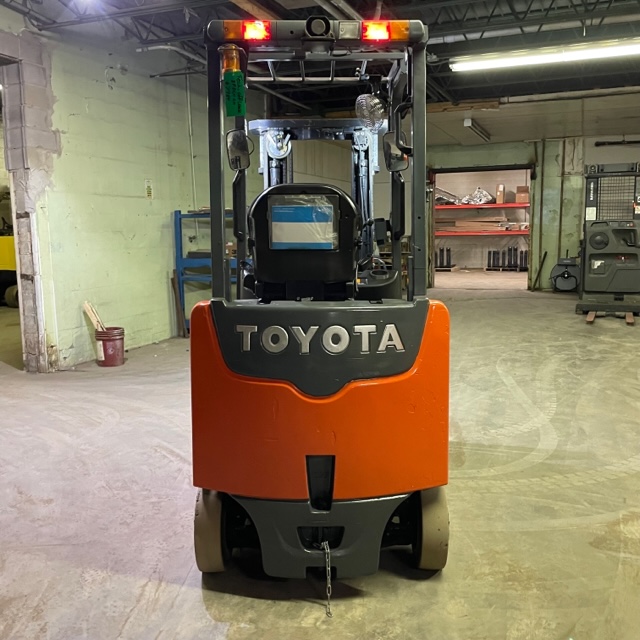

Toyota 8FBCU20-COMP

Attribute Value
Make Toyota
Model 8FBCU20-COMP
Forklift Type Four Wheel Electric Rider
Basic Capacity (lbs/kg) 4000/2000
Load Center (in/mm) 24/610
Power Electric – 36/48 Volts
Battery Type Lead Acid
Tire Type Cushion Drive, Cushion Steer
Tilt – standard (forward/back) 6/8 degrees
Length to Fork Face (in/mm) 79.9/2030
Width – standard tires (in/mm) 41.9/1065
Height to Top of Overhead Guard (in/mm) 88/2235
Turning radius (in/mm) 68.5/1740
Right Angle Stack (in/mm) 85.2/2165
Weight without battery (lbs/kg) 6390/2840
Front Tire Size 21x7x15
Rear Tire Size 16x5x10.5
Wheelbase (in/mm) 51/1295

Related Products

Mollit consequat adipisicing in commodo fugiat. Quis voluptate pariatur ex mollit exercitation.

36 Volts

Attribute Value
Minimum Weight 2400lbs
Max Amp Capacity 1320
Box Dimensions 39.1" x 27.4" x 23.8"
Connector SB350 / Gray
Position B

48 Volts

Attribute Value
Minimum Weight 2400lbs
Max Amp Capacity 990
Box Dimensions 39.1" x 27.4" x 23.8"
Connector SB350 / Gray
Position B
