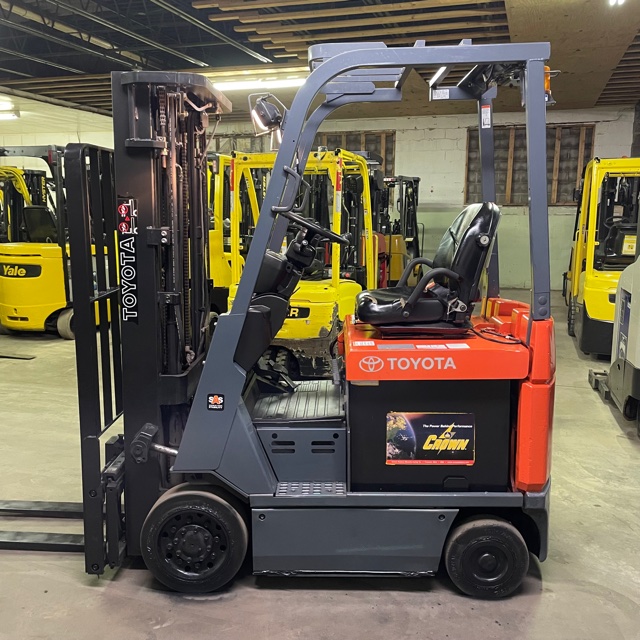

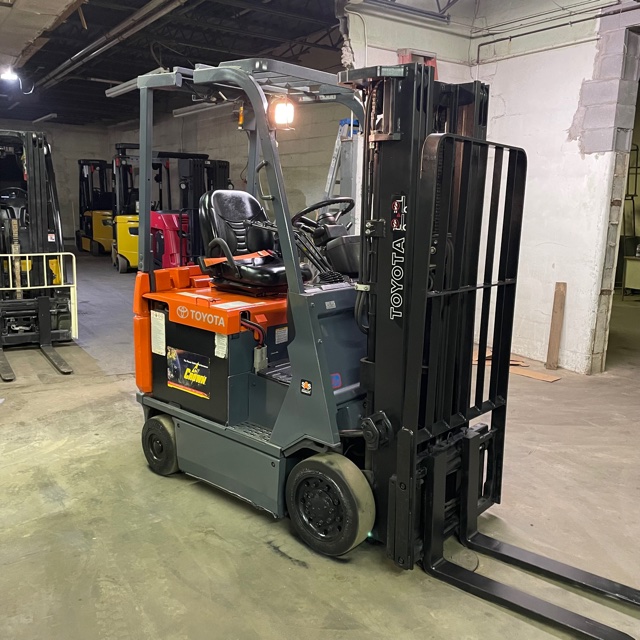

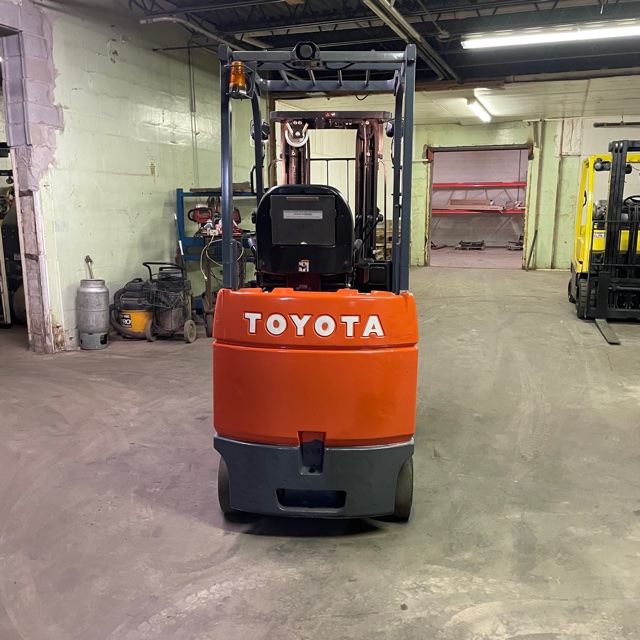

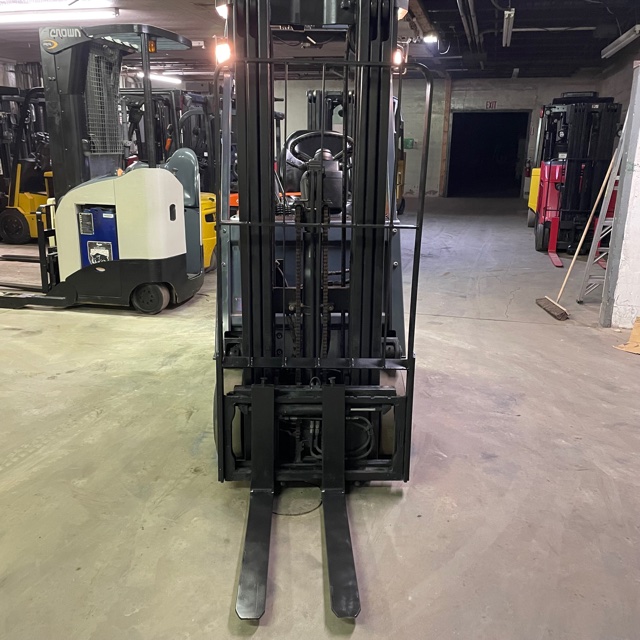

Forklift Specifications
| Attribute | Value |
|---|---|
| Make | Toyota |
| Model | 7FBCU15 |
| Forklift Type | Four Wheel Electric |
| Basic Capacity (lbs/kg) | 3000/1500 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 6/10 degrees |
| Length to Fork Face (in/mm) | 76.8/1950 |
| Width – standard tires (in/mm) | 37/945 |
| Height to Top of Overhead Guard (in/mm) | 86.4/2195 |
| Turning radius (in/mm) | 66.3/1685 |
| Right Angle Stack (in/mm) | 82.1/2085 |
| Weight without battery (lbs/kg) | 4930/2240 |
| Front Tire Size | 18 x 6 x 12-1/8 |
| Rear Tire Size | 14 x 4-1/2 x 8 |
| Wheelbase (in/mm) | 48/1220 |
Related Products
Mollit consequat adipisicing in commodo fugiat. Quis voluptate pariatur ex mollit exercitation.
36 Volts
| Attribute | Value |
|---|---|
| Box Dimensions | 34.60" x 26.80" x 23.80" |
| Amp Hour Capacity | 680 |
| Minimum Weight | 1840 lbs |
48 Volts
| Attribute | Value |
|---|---|
| Box Dimensions | 34.60" x 26.80" x 23.80" |
| Amp Hour Capacity | 510 |
| Minimum Weight | 1840 lbs |
Used Forklifts, Fair Prices
Looking for affordable used Toyota forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
Use this section to ask questions and leave comments about the Toyota 7FBCU15 forklift.
