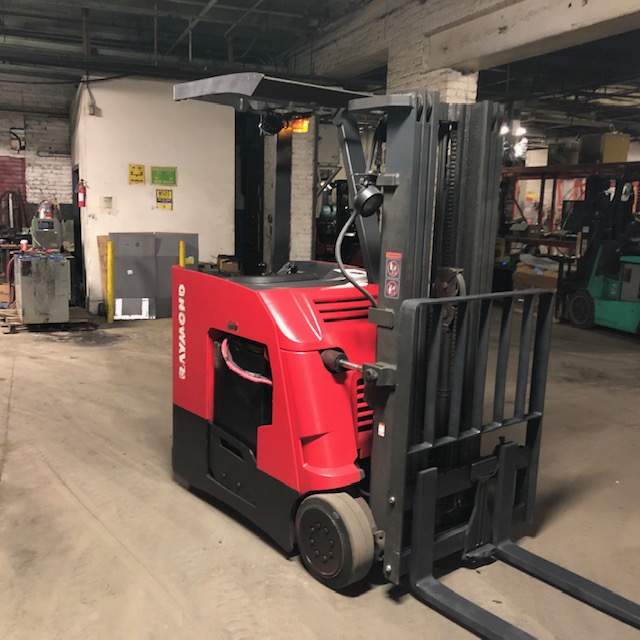

| Attribute | Value |
|---|---|
| Make | Raymond |
| Model | 4250-C30TT |
| Forklift Type | Stand Up Counterbalance |
| Basic Capacity (lbs/kg) | 3000/1350 |
| Load Center (in/mm) | 24/610 |
| Power | Electric - 36 Volts |
| Battery Type | Lead Acid |
| Tilt - standard (forward/back) | 3.0/5.0 degrees |
| Length to Fork Face w/o sideshift (in/mm) | 68.2/1732.3 |
| Width - standard tires (in/mm) | 41/1041 |
| Height to Top of Overhead Guard (in/mm) | 88/2235 |
| Turning radius (in/mm) | 55.8/1417.3 |
| Front Tire Size | 16.25x6x11.25 |
| Rear Tire Size | 10x5x6.5 |
| Wheelbase (in/mm) | 48.4/1229.4 |
| Battery Compartment Width (in/mm) | 16.5/419.1 |
36 Volts - 14" Compartment
| Attribute | Value |
|---|---|
| Minimum Weight | 1700 lbs |
| Max Amp Capacity | 800 AH |
| Box Dimensions | 38.50" x 13.5" x 32.30" |
| Connector | SB350 / Gray |
36 Volts - 16" Compartment
| Attribute | Value |
|---|---|
| Minimum Weight | 1980 lbs |
| Max Amp Capacity | 930 AH |
| Box Dimensions | 38.50" x 16.25" x 32.30" |
| Connector | SB350 / Gray |
36 Volts - 18" Compartment
| Attribute | Value |
|---|---|
| Minimum Weight | 2300 lbs |
| Max Amp Capacity | 1085 AH |
| Box Dimensions | 38.50" x 18.25" x 32.30" |
| Connector | SB350 / Gray |
Affordable ForkliftsLooking for affordable used Raymond forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
Brandon Hite –
Is there any chance of getting the approximate weight of a Raymond 4250 C50 with batteries installed? I know it can vary.
Andy Guild –
A Raymond 4250-C30TT with a three stage mast that has a lift height around 190-200″ and the maximum weight battery, the weight of the forklift with the battery installed will be about 9000lbs.
