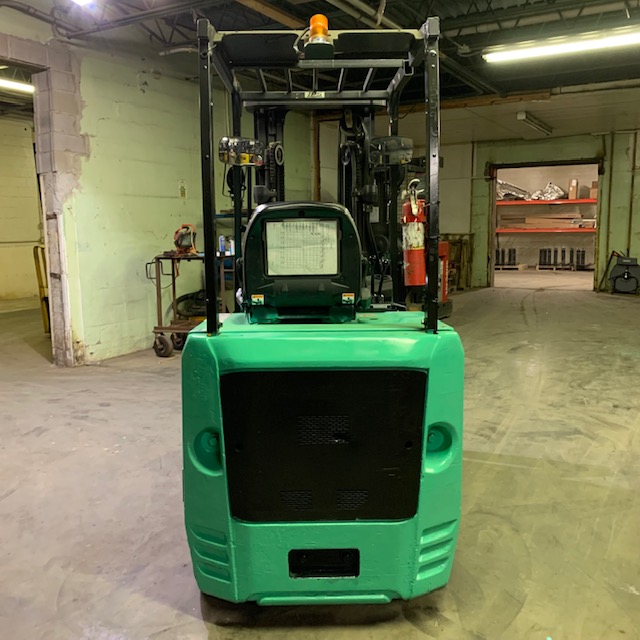

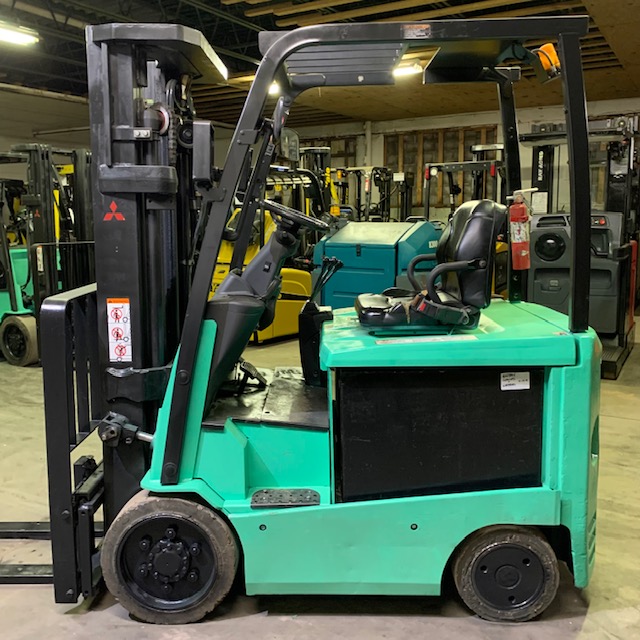

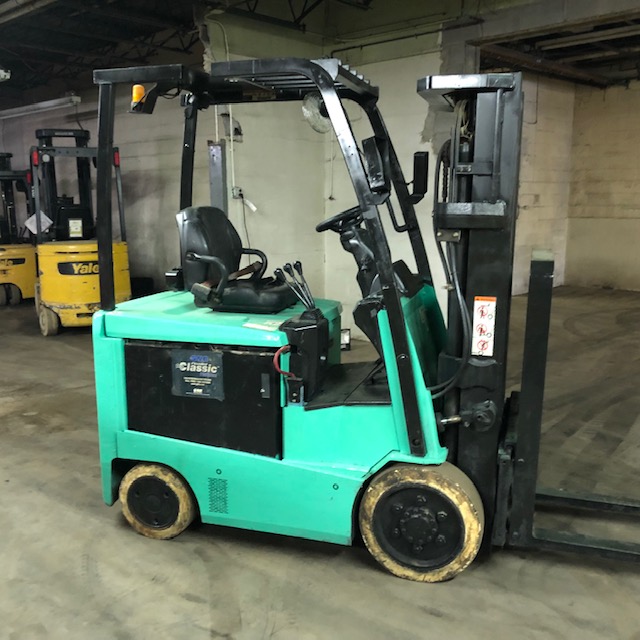

Forklift SpecificationsMitsubishi FBC25N2
| Attribute | Value |
|---|---|
| Make | Mitsubishi |
| Model | FBC25N2 |
| Forklift Type | Four Wheel Electric |
| Basic Capacity (lbs/kg) | 5000/2500 |
| Load Center (in/mm) | 24/500 |
| Power | Electric - 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion |
| Tilt (forward/back) | 5.0/5.0 degrees |
| Length to Fork Face (in/mm) | 82/2082 |
| Standard Tires (in/mm) | 41.5/1055 |
| Wide Tread (in/mm) | 43.5/1103 |
| Height to Top of Overhead Guard | 87/2210 |
| Minimum turning radius (in/mm) | 73.2/1860 |
| Weight w/minimum weight battery (lbs/kg) | 9140/4145 |
| Front Tire Size | 21.0 x 7.0 x 15.0 |
| Rear Tire Size | 16.0 x 6.0 x 10.5 |
| Wheelbase (in/mm) | 50.4/1280 |
36 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 2600lbs |
| Max Amp Capacity | 1320 |
| Box Dimensions | 39.5" x 30.5" x 23.3" |
48 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 2200lbs |
| Max Amp Capacity | 990 |
| Box Dimensions | 39.5" x 30.5" x 23.3" |
