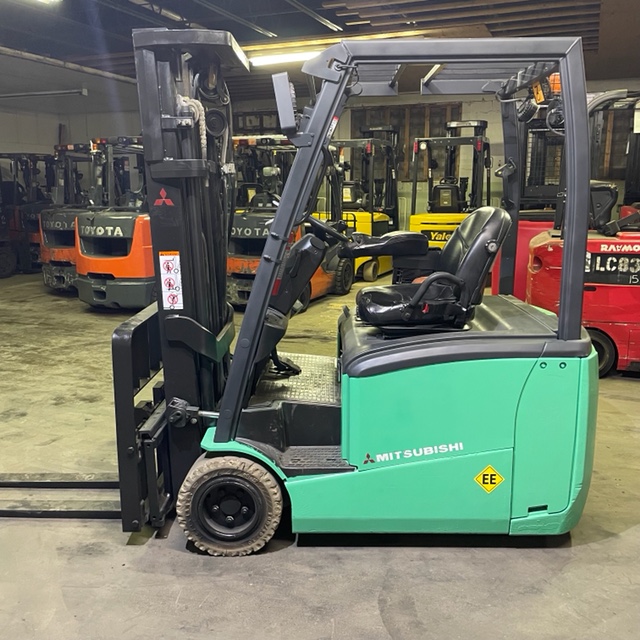

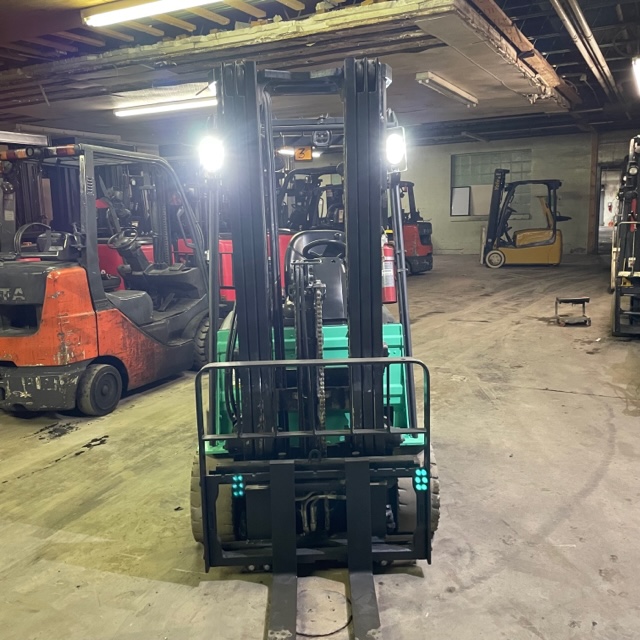

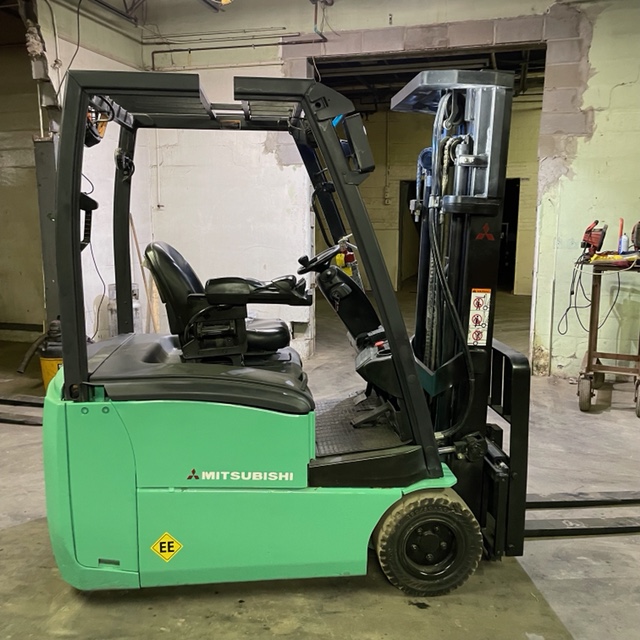

Forklift SpecificationsMitsubishi FB20PNT
| Attribute | Value |
|---|---|
| Make | Mitsubishi |
| Model | FB20PNT |
| Forklift Type | Three Wheel Electric Rider |
| Basic Capacity (lb/kg) | 4000/2000 |
| Load Center (in/mm) | 24/500 |
| Power | Electric |
| Tilt (forward/back) | 5.0/7.5 degrees |
| Length to Fork Face (in/mm) | 78.1/1984 |
| Width - standard tires (in/mm) | 42.9/1090 |
| Height to Top of Overhead Guard (in/mm) | 80.7/2050 |
| Minimum turning radius (in/mm) | 62.8/1595 |
| Weight with min weight battery (lb/kg) | 7756/3520 |
| Front Tire Size | 18.0 x 7.0 x 12.2" |
| Rear Tire Size | 15.0 x 5.0 x 11.25" |
| Wheelbase (in/mm) | 54.9/1395 |
36 Volts
| Attribute | Value |
|---|---|
| Box Dimensions | 39.60" x 25.10" x 24.80" |
| Amp Hour Capacity | 850 |
| Minimum Weight | 2200lbs |
48 Volts
| Attribute | Value |
|---|---|
| Box Dimensions | 39.60" x 25.10" x 24.80" |
| Amp Hour Capacity | 850 |
| Minimum Weight | 2200lbs |
