| Attribute | Value |
|---|---|
| Make | Hyster |
| Model | S55FTS |
| Type | Cushion Tire Internal Combustion |
| Basic Capacity (lbs/kg) | 5500/2495 |
| Load Center (in/mm) | 24/610 |
| Power | LPG |

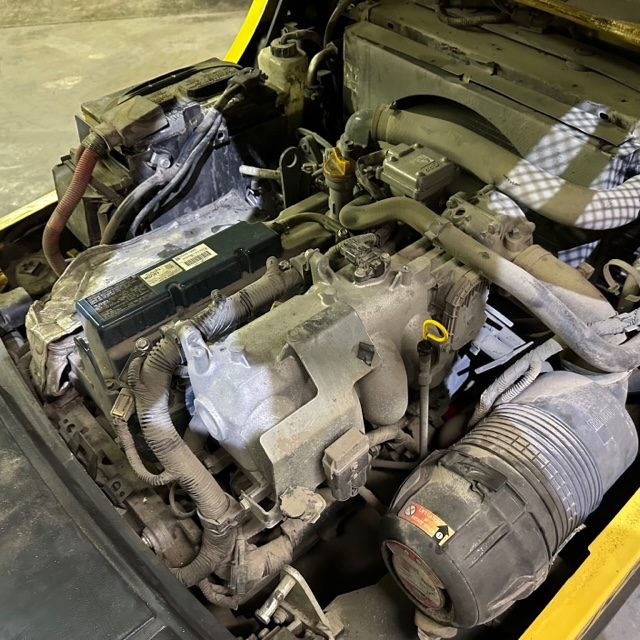

| Engine | PSI 2.4L/Kubota 2.5L |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt - standard (forward/back) | 5/5 degrees |
| Length to Fork Face (in/mm) | 87.7/2228 |
| Width - standard tires (in/mm) | 43.6/1108 |
| Width - wide tread tires (in/mm) | 48.9/1242 |
| Height to Top of Overhead Guard Standard (in/mm) | 84/2128 |
| Turning radius (in/mm) | 76.3/1937 |
| Right Angle Stack (in/mm) | 91.6/2327 |
| Weight with 2-StageLFL Mast(lbs/kg) | 9113/4134 |
| Front Tire Size | 21x8x15 |
| Rear Tire Size | 16x5x10.5 |
| Wheelbase (in/mm) | 56.3/1430 |
Affordable ForkliftsLooking for affordable used Hyster forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
