| Attribute | Value |
|---|---|
| Make | Hyster |
| Model | S50FT |
| Type | Cushion Tire Internal Combustion |
| Basic Capacity (lbs/kg) | 5000/2268 |
| Load Center (in/mm) | 24/610 |
| Power | LPG |
| Engine | PSI 2.4L/Kubota 2.5L |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt - standard (forward/back) | 5/5 degrees |
| Length to Fork Face (in/mm) | 90.2/2291 |
| Width - standard tires (in/mm) | 42.0/1067 |
| Width - wide tread tires (in/mm) | 48.9/1242 |
| Height to Top of Overhead Guard Standard (in/mm) | 84/2128 |
| Turning radius (in/mm) | 78.7/2000 |
| Right Angle Stack (in/mm) | 94.1/2390 |
| Weight with 2-StageLFL Mast(lbs/kg) | 8587/3895 |
| Front Tire Size | 21x7x15 |
| Rear Tire Size | 16x5x10.5 |
| Wheelbase (in/mm) | 56.3/1430 |
Affordable ForkliftsLooking for affordable used Hyster forklifts?

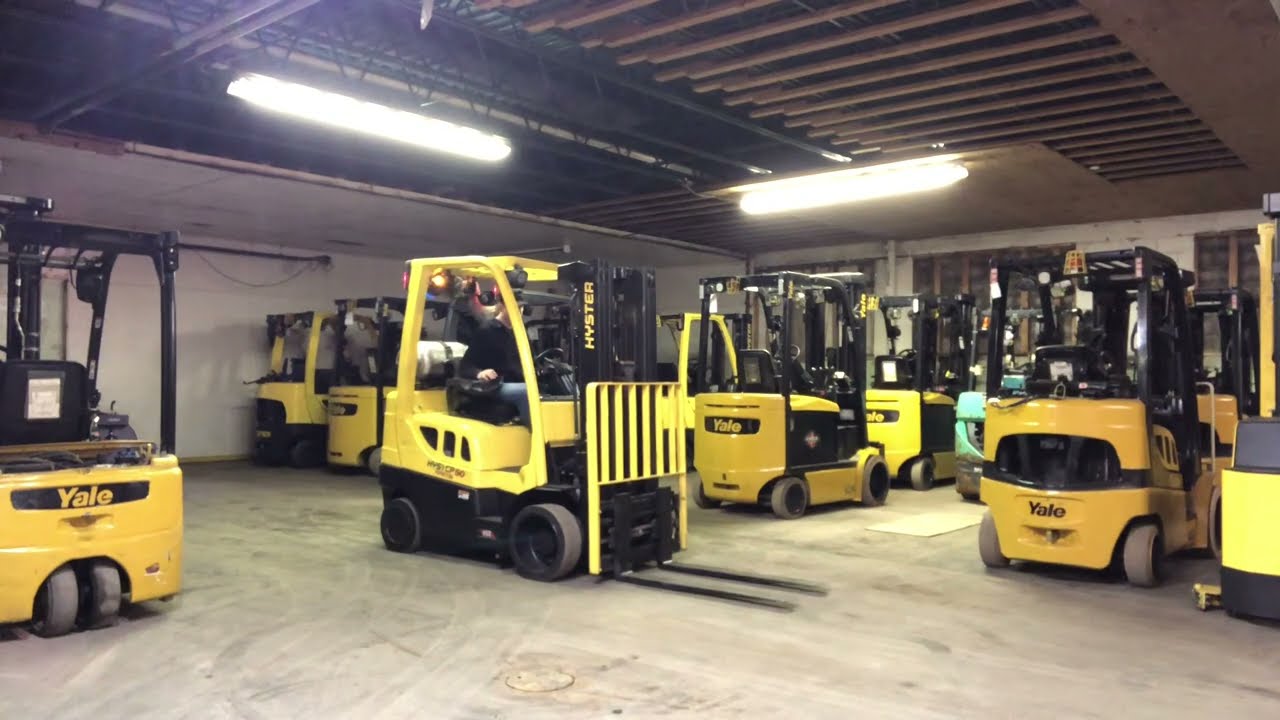

We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
Andy Guild –
Code 522592-0 – EPR Pressure Greater Than Commanded – A. WORN OR DAMAGED PRIMARY OR SECONDARY SEAT B. FAULTY ELECTRONIC PRESSURE REGULATOR (EPR) ELECTRICAL CONNECTIONS C. EPR FAILURE
Andy Guild –
The EPR can often be cleaned. Take off the intake hose and spray a carb clean type of product in the EPR, reconnect the hose and run the machine. Might need to repeat a few times.
Andy Guild –
Code 522737-10 is displayed. Oxygen sensor slow to respond.
