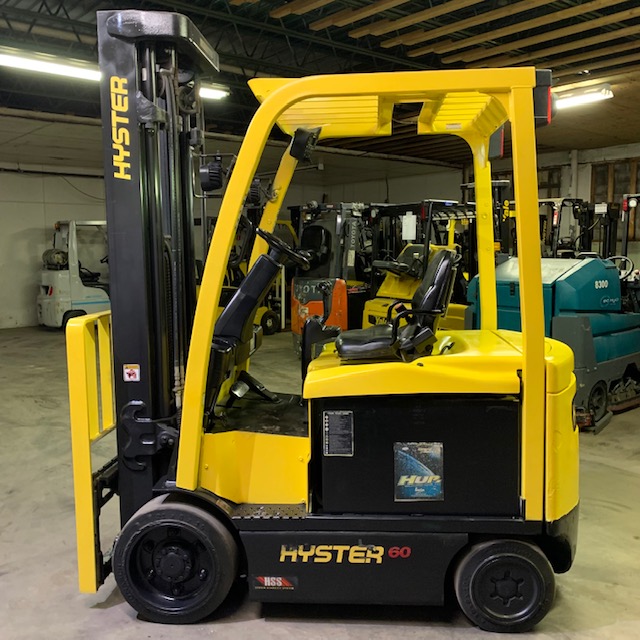

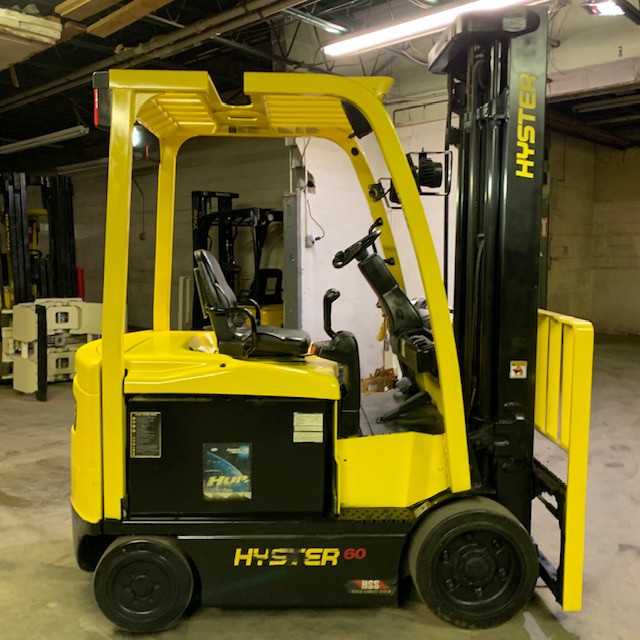

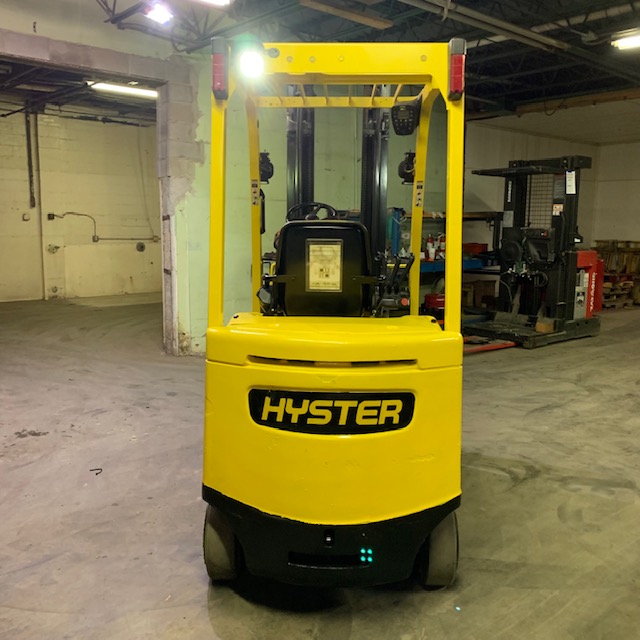

| Make | Hyster |
| Model | E60XN |
| Type | Four Wheel Electric |
| Basic Capacity (lbs/kg) | 6000/2722 |
| Load Center (in/mm) | 24/610 |
| Power | Electric |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt - standard (forward/back) | 5/5 degrees |
| Length to Fork Face (in/mm) | 86.5/2199 |
| Width - Standard (in/mm) | 43.6/1108 |
| Width - Wide Tread (in/mm) | 48.9/1242 |
| Height to Top of Overhead Guard Standard (in/mm) | 88.5/2248 |
| Turning radius (in/mm) | 75.4/1915 |
| Right Angle Stack (in/mm) | 139.2/3536 |
| Weight with 2-StageLFL Mast - no batt (lbs/kg) | 6769/2361 |
| Front Tire Size - standard | 21 x 8 x 15 |
| Rear Tire Size - standard | 16 x 6 x 10.5 |
| Wheelbase (in/mm) | 54.2/1377 |
