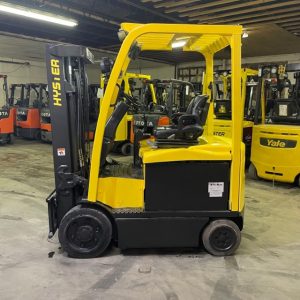

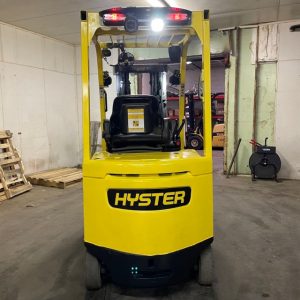

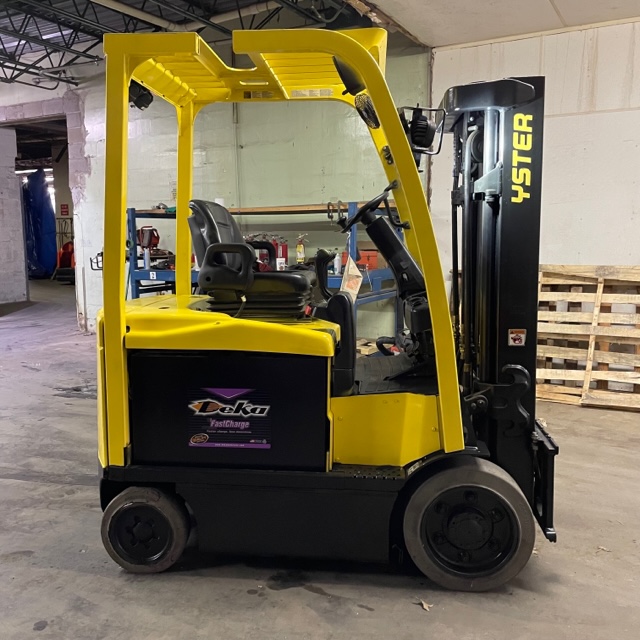

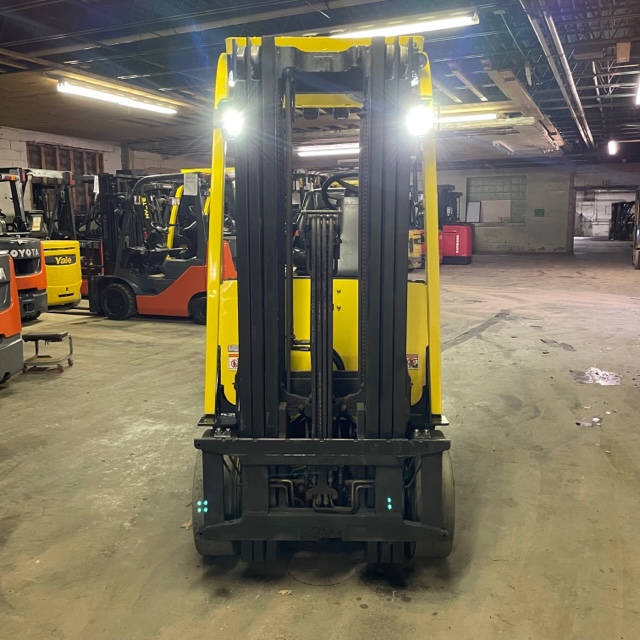

| Make | Hyster |
| Model | E50XN-33 |
| Type | Four Wheel Electric |
| Basic Capacity (lbs/kg) | 5000/2268 |
| Load Center (in/mm) | 24/610 |
| Power | Electric |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt - standard (forward/back) | 5/5 degrees |
| Length to Fork Face (in/mm) | 82.8/2102 |
| Width - Standard (in/mm) | 42.1/1070 |
| Width - Wide Tread (in/mm) | 48.9/1242 |
| Height to Top of Overhead Guard Standard (in/mm) | 88.5/2248 |
| Turning radius (in/mm) | 71.9/1825 |
| Right Angle Stack (in/mm) | 135.2/3434 |
| Weight with 2-StageLFL Mast - no batt (lbs/kg) | 6670/3025 |
| Front Tire Size - standard | 21 x 7 x 15 |
| Rear Tire Size - standard | 16 x 5 x 10.5 |
| Wheelbase (in/mm) | 51.8/1316 |
Charles Petty –
do you know the motor specs on this lift?
Andy Guild –
VOLTS 36 48 48 80
43 Traction motor 60 minute rating hp (kW) 24.7 (18.4) 24.7 (18.4) 31.6 (23.6) 31.6 (23.6)
44 Pump motor 15% rating hp (kW) 16.6 (12.4) 22.4 (16.7) 31.8 (23.7) 32.2 (24)
45 Traction motor Type/control method AC/transistor
46 Pump motor Type/control method AC/transistor
Damir Kukuljan –
Hi, we need new battery bank for our forklift Hyster E50XN-33 Type E. Batteries are 48V. We need battery bank model exact confirmation for that model.
Andy Guild –
