| Attribute | Value |
|---|---|

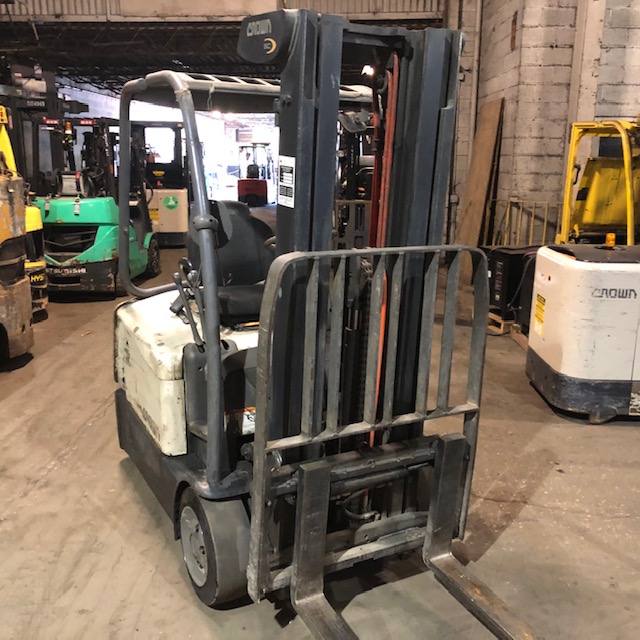

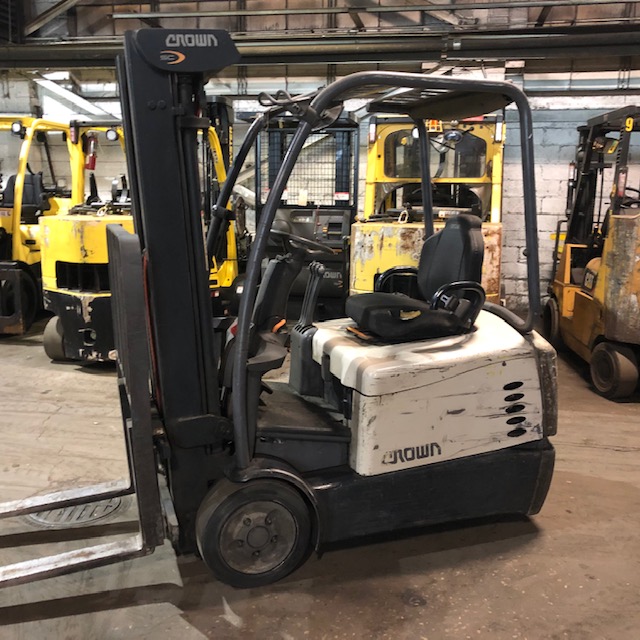

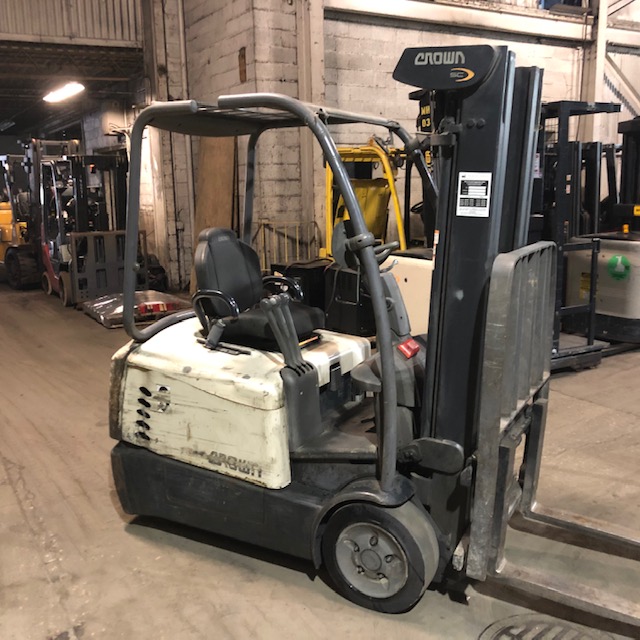

| Make | Crown |
| Model | SC5225-35 |
| Type | Three Wheel Electric Sit Down |
| Load Capacity (lb/kg) | 3500/1588 |
| Load Center (in/mm) | 24/600 |
| Tire Type | Cushion |
| Fork Carriage | ITA Class II |
| Tilt (forward/back) | 5/5 degrees |
| Overall Width (in/mm) | 42/1067 |
| Length to Fork Face (in/mm) | 73/1854 |
| Height (in/mm) | 83/2110 |
| Turning Radius (in/mm) | 58.5/1486 |
| Weight without battery (lb/kg) | 6216/2820 |
| Front Tires | 18x7x12.1 |
| Rear Tires | 15x5x11.25 |
| Wheelbase (in/mm) | 50.5/1283 |
36 Volts
| Attribute | Value |
|---|---|
| Amp Capacity | 680 |
| Min Weight | 1850 lbs |
| Max Weight | 2250 lbs |
| Max Dimensions | 20.87 x 38.81 x 22.63" |
48 Volts
| Attribute | Value |
|---|---|
| Amp Capacity | 540 |
| Min Weight | 1850 lbs |
| Max Weight | 2250 lbs |
| Max Dimensions | 20.87 x 38.81 x 22.80" |
