| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Cat |
| Model | EPC5000 |
| Type | Four Wheel Electric Sit Down |
| Basic Capacity | 5000 lbs |
| Load Center | 24″ |
| Power | Electric |
| Tire Type | Solid Pneumatic |
| Tilt (forward/back) | 6.0/8.0 degrees |
| Length to Fork Face | 89.7″ |
| Width (standard tires) | 47.1″ |
| Height to Top of Overhead Guard | 87.2″ |
| Minimum turning radius | 80.7″ |
| Weight with min weight battery | 9969lbs |
| Front Tire Size | 23×9-10 |
| Rear Tire Size | 18×7-8 |
| Wheelbase | 60.5″ |

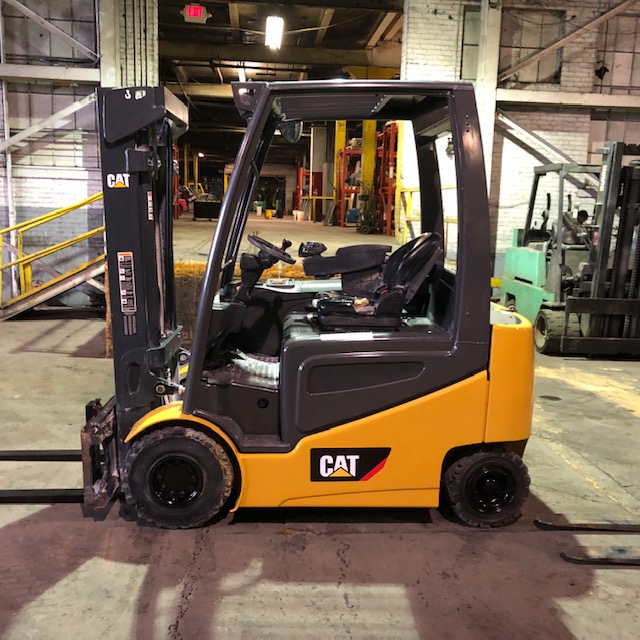

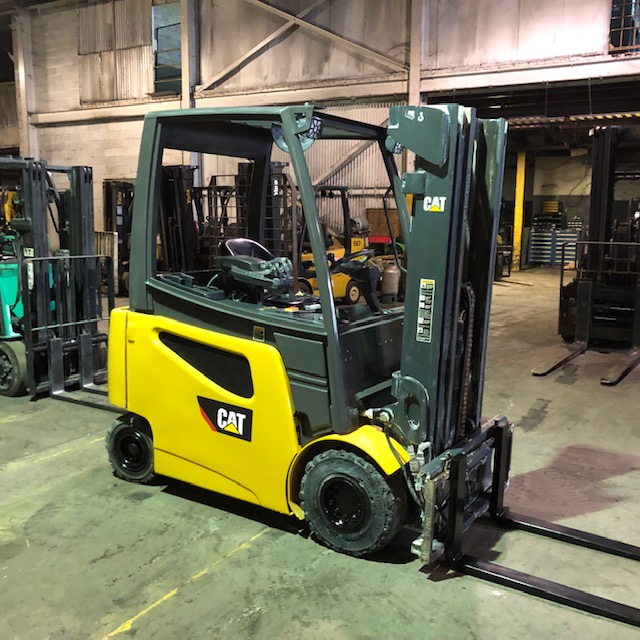

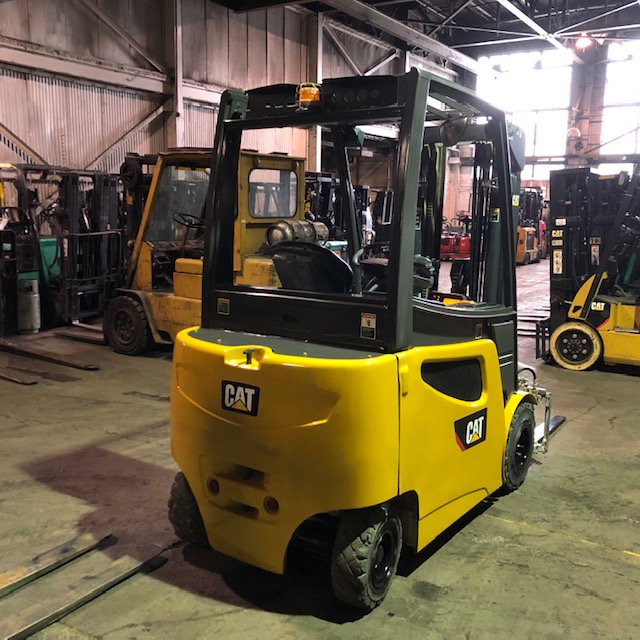

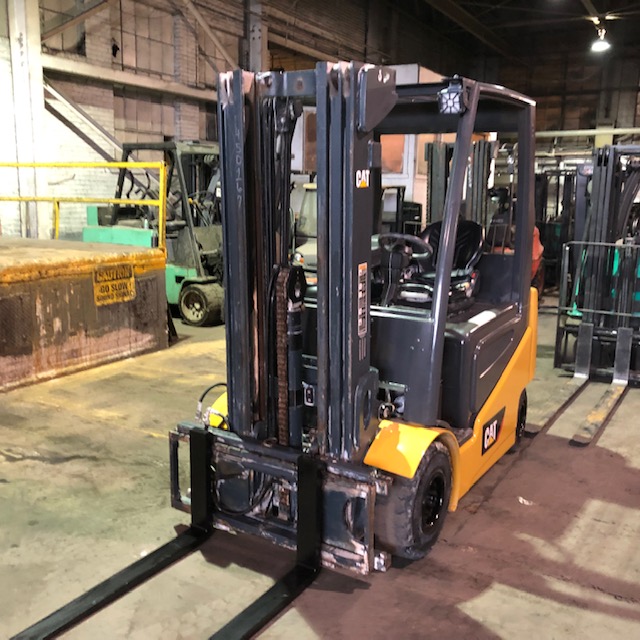

Cat EPC5000 Reference Images
Cat EPC5000 Battery and Charger
Buy replacement batteries and chargers for the Cat EPC5000 directly from our website.
80 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 3263 lbs |
| Max Amp Capacity | 700 |
| Box Dimensions | 40.5 x 28.0 x 30.94″ |
Used Forklifts, Fair Prices
Looking for affordable used Cat forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
Use this section to ask questions and leave comments about the Cat EPC5000 forklift.
