| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Cat |
| Model | E3000 |
| Forklift Type | Four Wheel Electric Sit Down |
| Basic Capacity | 3000 lbs |
| Load Center | 24″ |
| Power | Electric |
| Tire Type | Cushion |
| Tilt (forward/back) | 5.0/6.0 degrees |
| Length to Fork Face | 78″ |
| Width (standard tires) | 37″ |
| Height to Top of Overhead Guard | 86″ |
| Minimum turning radius | 70.5″ |
| Weight with min weight battery | 6200lbs |
| Front Tire Size | 18.0 x 6.0 x 12.2″ |
| Rear Tire Size | 14.0 x 4.5 x 8.0″ |
| Wheelbase | 46″ |

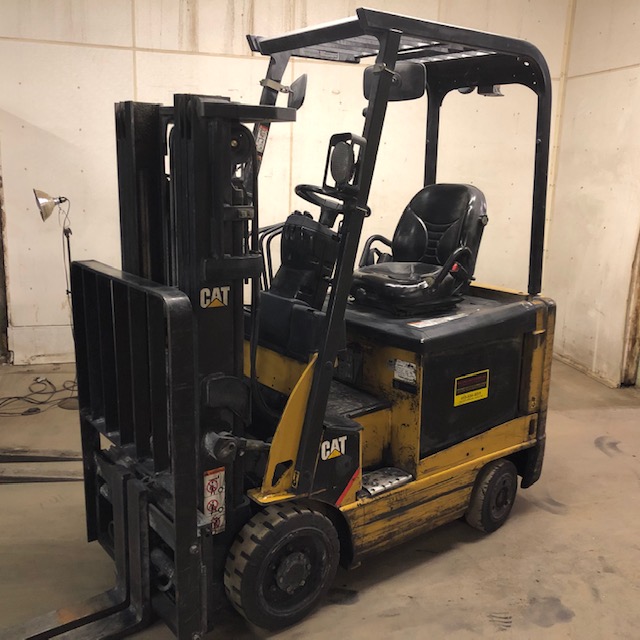

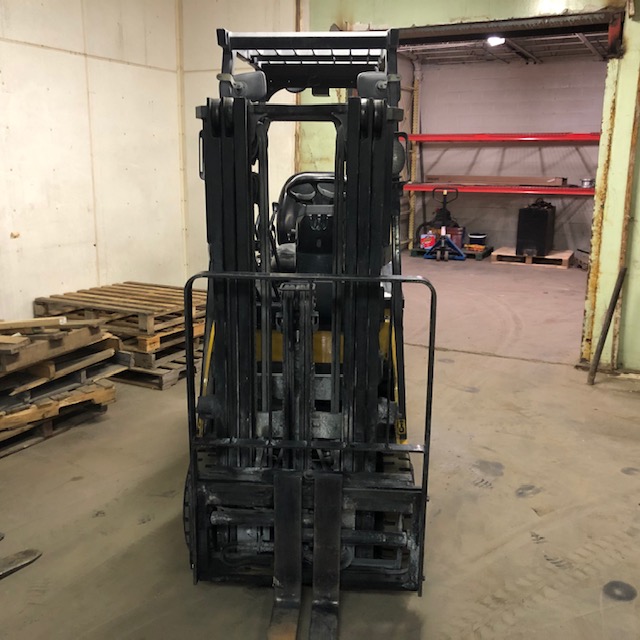

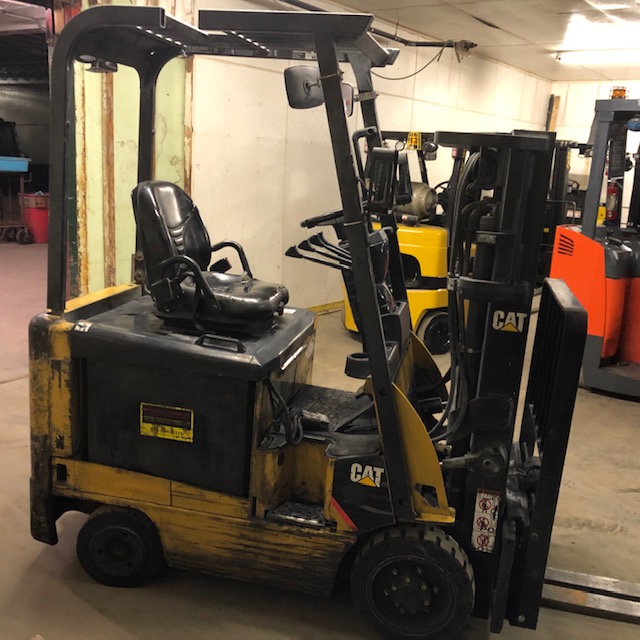

Cat E3000 Reference Images
Cat E3000 Battery and Charger
The Cat E3000 forklift has two battery voltage options and one battery compartment size option. Buy replacement batteries and chargers directly from our website.
36 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 1650lbs |
| Max Amp Capacity | 880 |
| Box Dimensions | 35.8″ x 27.8″ x 23.3″ |
| Connector | SB350 / Gray |
| Position | B |
48 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 1650 lbs |
| Max Amp Capacity | 595 |
| Box Dimensions | 38.19 x 23.5″ x 22.63″ |
| Connector | SB350 / Gray |
| Position | B |
Used Forklifts, Fair Prices
Looking for affordable used Cat forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
Use this section to ask questions and leave comments about the Cat E3000 forklift.
