Looking For Used Hyster Forklifts?
Machine Maxx USA is committed to customer service and quality used forklifts. We put integrity first so that you can be sure you're doing business with the right people - people just like you!
Hyster J35XNT Forklift Specifications
Make: Hyster
Model: J35XNT
Forklift Type: Three Wheel Electric Sit Down
Basic Capacity (lb/kg): 3500/1588
Load Center (lb/kg): 24/610
Power: Electric
Tilt (forward/back): 5.0/5.0 degrees
Length to Fork Face (in/mm): 74.7/1898
Width - standard tires (in/mm): 41.3/1050
Height to Top of Overhead Guard - standard (in/mm): 81.5/2070
Height to Top of Overhead Guard - flat plate (in/mm): 77.9/1979
Height to Top of Overhead Guard - drive in rack (in/mm): 81.5/2070
Minimum turning radius (in/mm): 62.1/1577
Weight without battery: 5250/2381
Front Tire Size: 18 x 7-8
Rear Tire Size: 15 x 4.5-8
Wheelbase (in/mm): 54.6/1386
J35XNT Video For Reference

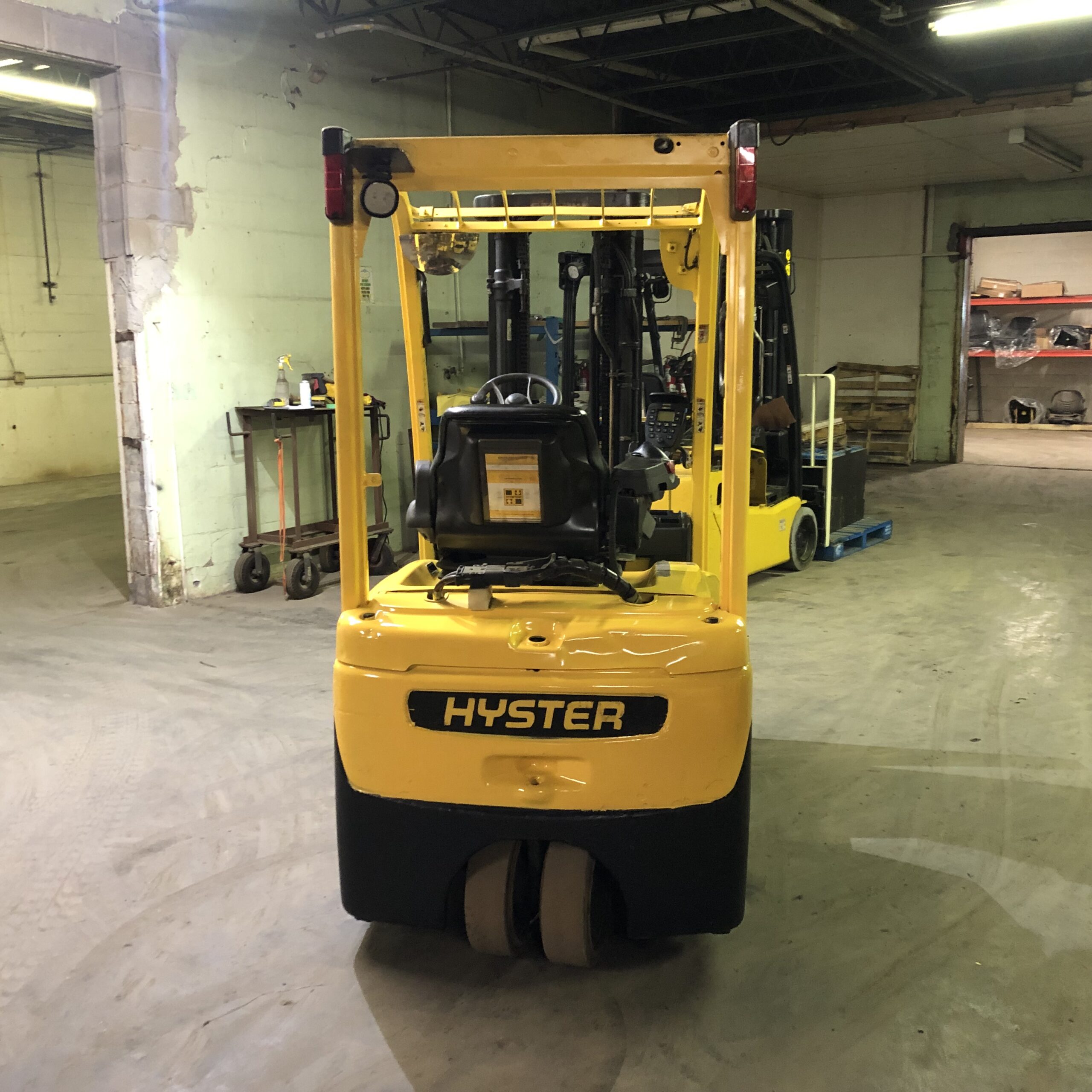

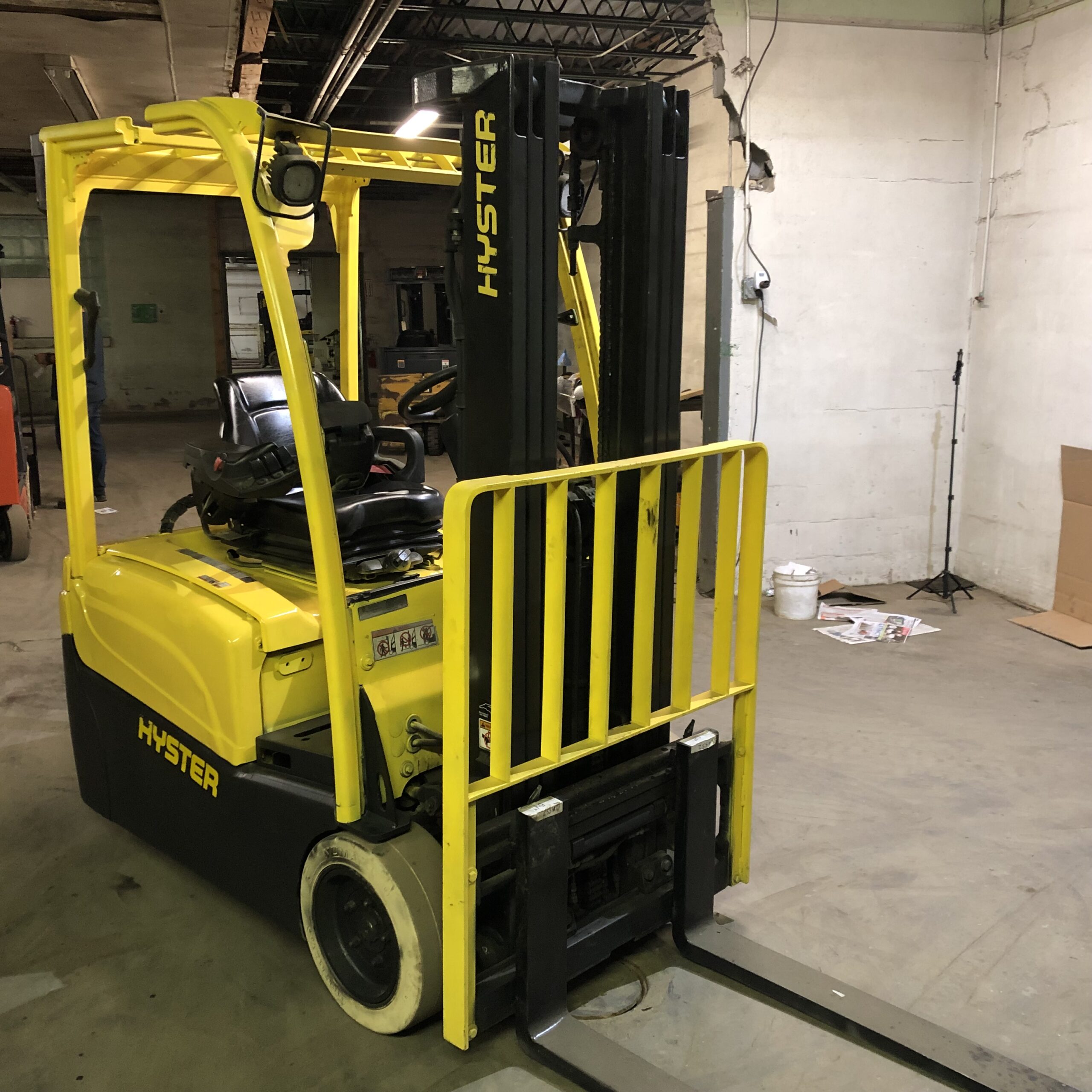

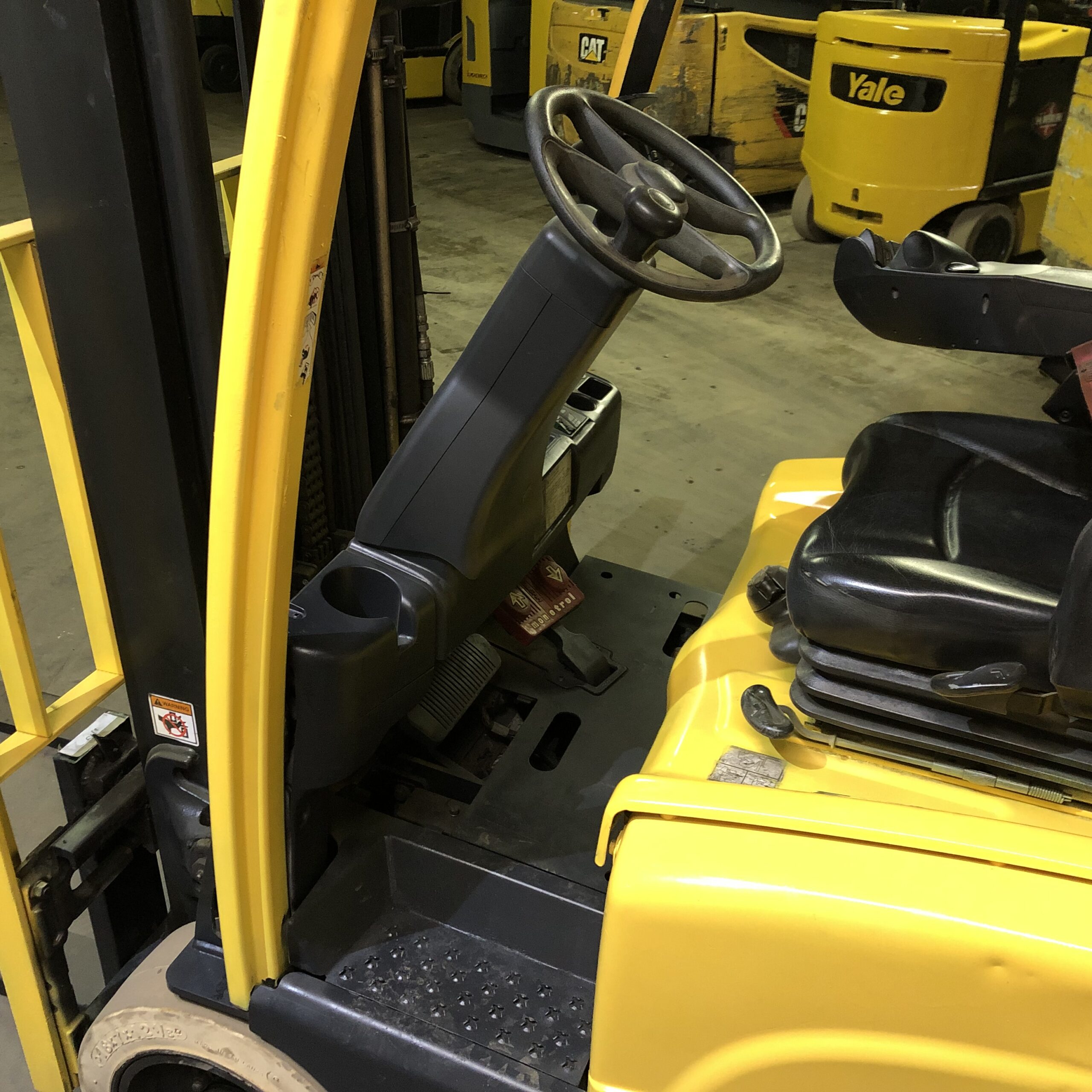

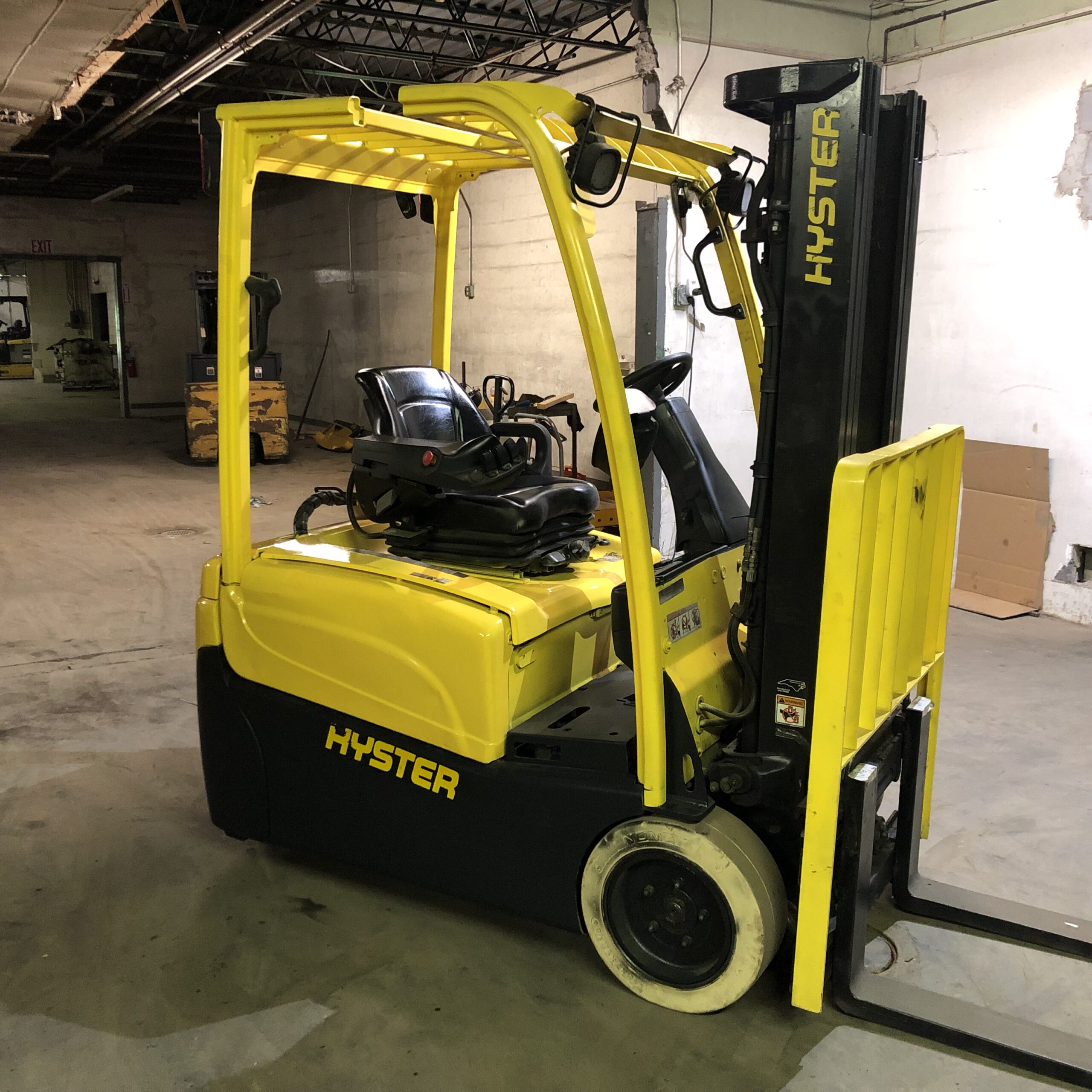

J35XNT Images For Reference
J35XNT Battery and Charger Specs
36 Volts - With Platform
Battery Box Dimensions: 39.00" x 25.30" x 23.90"
Max Amps: 1100
Minimum Battery Weight: 2100 lbs
Connector Type: SB350 Gray
36 Volts - Without Platform
Battery Box Dimensions: 39.00" x 25.30" x 23.90"
Max Amps: 1100
Minimum Battery Weight: 2100 lbs
Connector Type: SB350 Gray
48 Volts - With Platform
Battery Box Dimensions: 39.00" x 25.30" x 23.90"
Max Amps: 770
Minimum Battery Weight: 2100 lbs
Connector Type: SB350 Blue
48 Volts - Without Platform
Battery Box Dimensions: 39.00" x 25.30" x 23.90"
Max Amps: 770
Minimum Battery Weight: 2100 lbs
Connector Type: SB350 Blue
