| Attribute | Value |
|---|---|
| Make | Toyota |
| Model | 8FGU20 Type: Pneumatic Tire – Internal Combustion |
| Basic Capacity – lb (kg) | 4000 (1800) |
| Load Center – in (mm) | 24″ (610) |
| Power | LP Gas or Gasoline |
| Tire Type | Pneumatic |
| Tilt (forward/back) | 6.0/11.0 degrees |
| Length to Fork Face – in (mm) | 101.4 (2575) |
| Width (standard tires) – in (mm) | 45.3 (1150) |
| Height to Top of Overhead Guard – in (mm) | 83.1 (2110) |
| Rear Overhang – in (mm) | 17.9 (455) |
| Turning radius (outside) – in (mm) | 84.7 (2150) |
| Weight – lb (kg) | 7080 (3210) |
| Front Tire Size | 7.00-12-12PR |
| Rear Tire Size | 6.00-9-10PR |
| Wheelbase – in (mm) | 65 (1650) |
| Engine | Toyota / 4Y – ECS |
Toyota 8FGU20 Reference Video

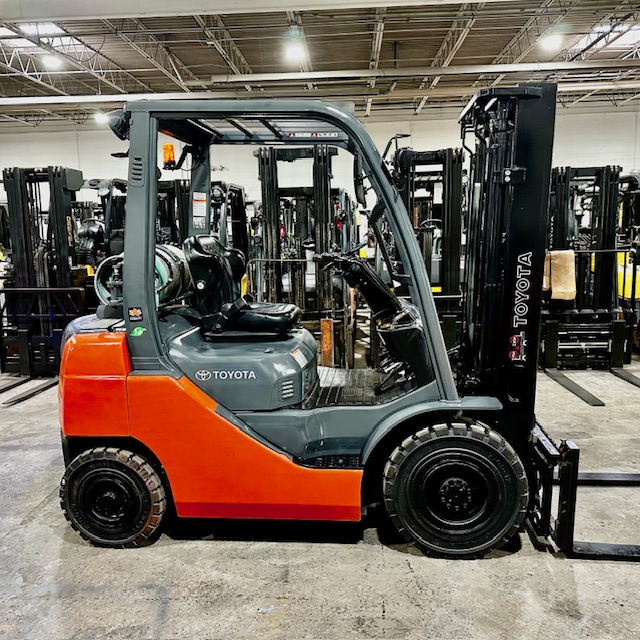

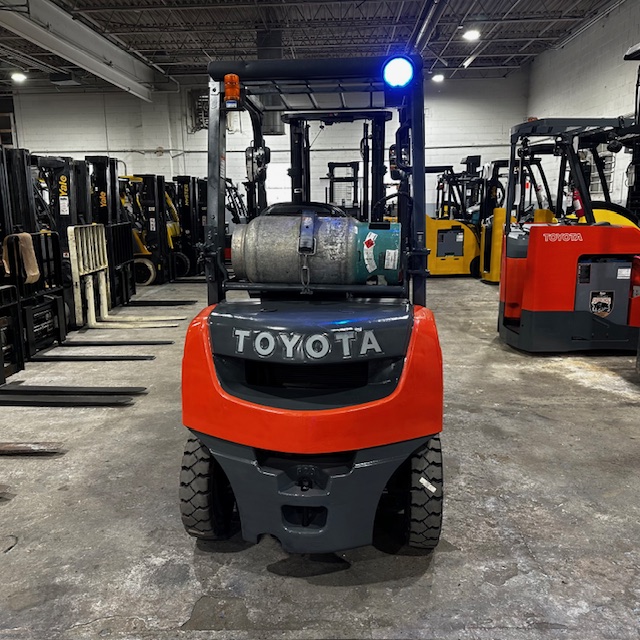

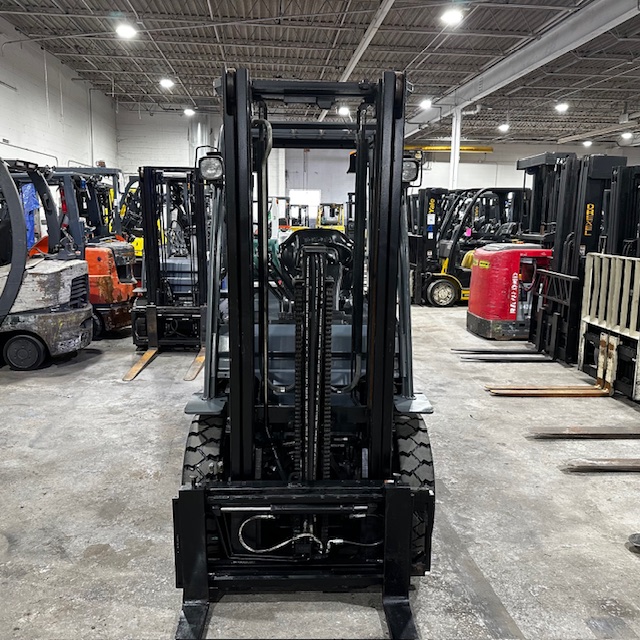

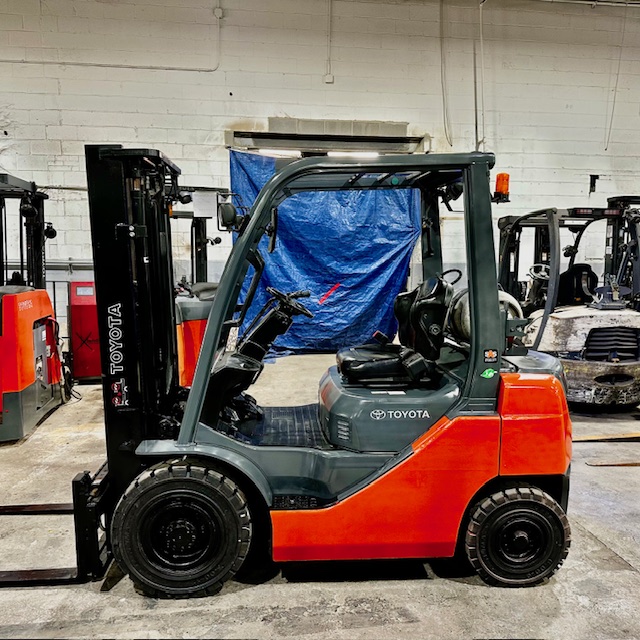

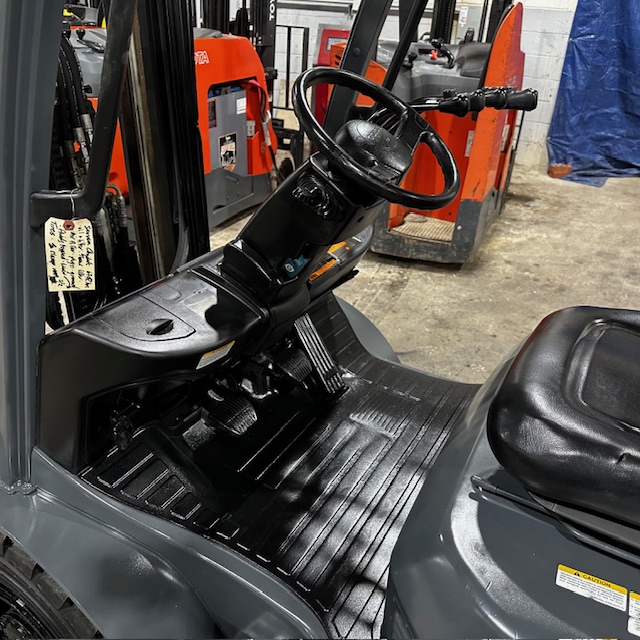

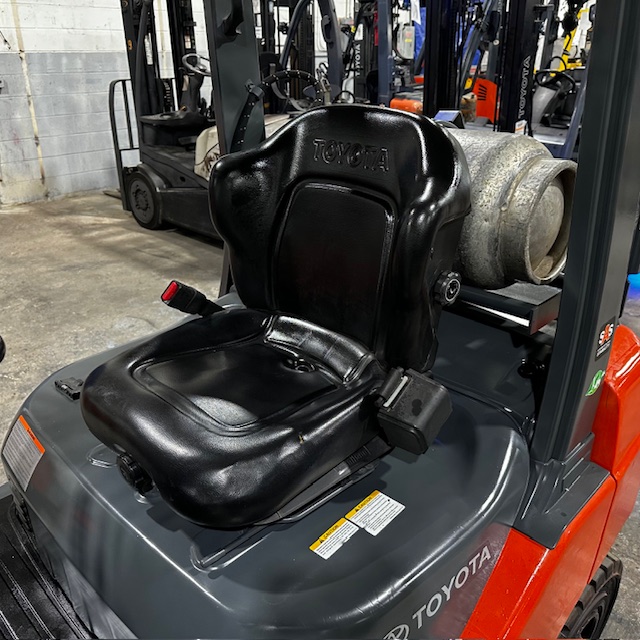

Toyota 8FGU20 Reference Images
