| Attribute | Value |
|---|---|
| Make | Toyota |
| Model | 8FGCU20 |
| Operator Position | Seated Rider |
| Basic Capacity – lb (kg) | 4000 (1800) |
| Load Center – in (mm) | 24″ (610) |
| Power | LP Gas |
| Tire Type | Cushion |
| Tilt (forward/back) | 6.0/10.0 degrees |
| Length to Fork Face – in (mm) | 91.2 (2315) |
| Width (standard tires) – in (mm) | 41.9 (1065) |
| Height to Top of Overhead Guard – in (mm) | 80.7 (2050) |
| Rear Overhang – in (mm) | 15.9 (405) |
| Turning radius (inside/outside) – in (mm) | 75.6 (1920) |
| Weight – lb (kg) | 7130 (3240) |
| Front Tire Size | 21 x 7 x 15 |
| Rear Tire Size | 16 x 5 x 10.5 |
| Wheelbase – in (mm) | 58.5 (1485) |
| Engine | Toyota 4Y – ECS |
| Cylinders | 4 |
| Horsepower | 48 |
Toyota 8FGCU20 Reference Video

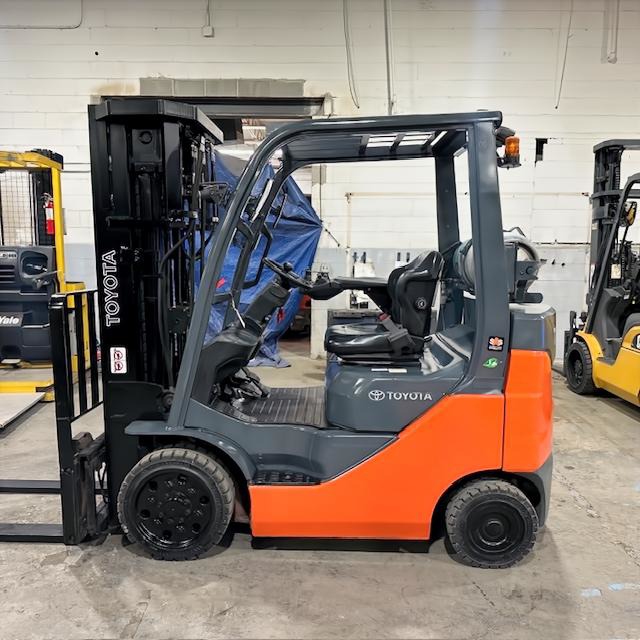

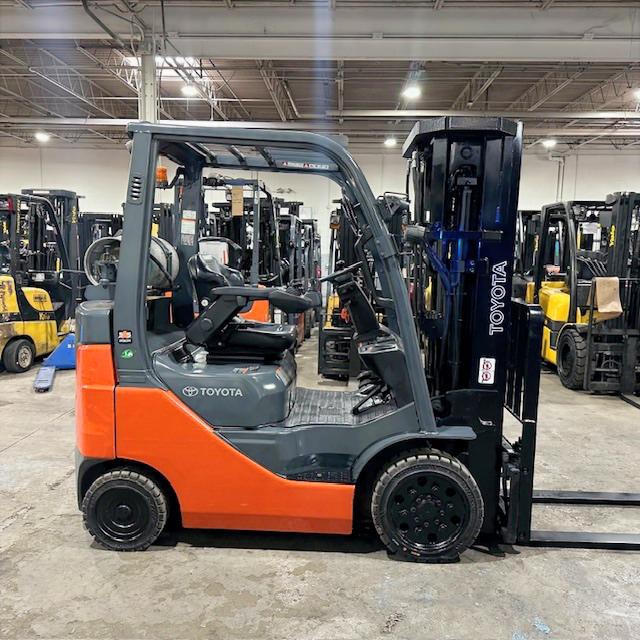

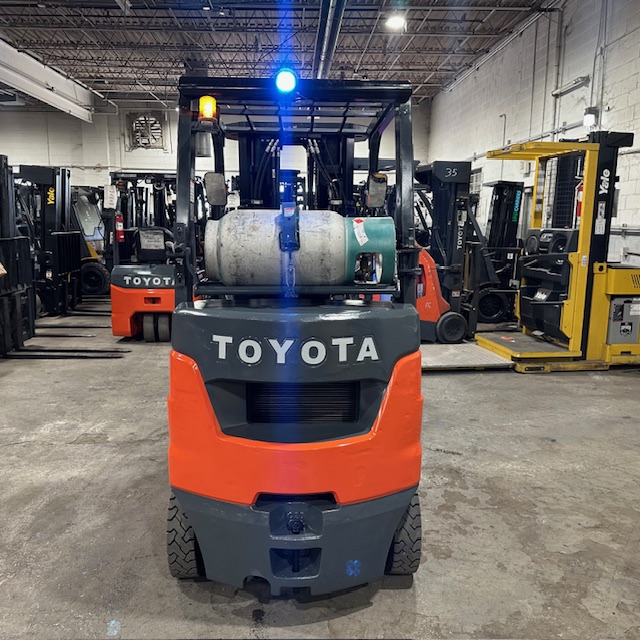

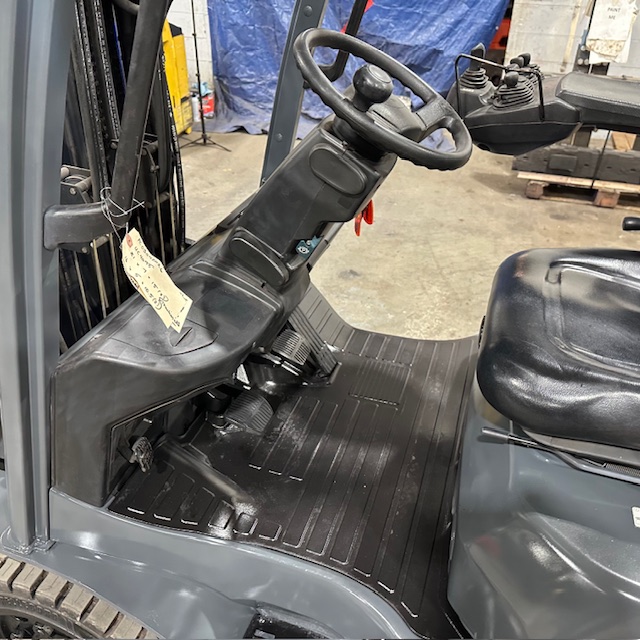

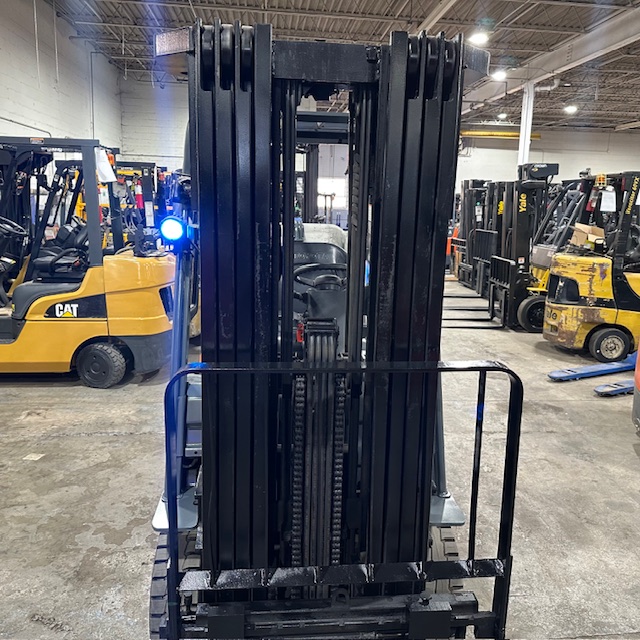

Toyota 8FGCU20 Reference Images
