| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Toyota |
| Model | 8FBEH18U |
| Forklift Type | Three Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 3500/1587 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion or Pneumatic |
| Tilt – standard (forward/back) | 5/6.5 degrees |
| Length to Fork Face (in/mm) | 76.6/1945 |
| Width – Cushion Tires (in/mm) | 41.5/1054 |
| Width – Pneumatic Tires (in/mm) | 42.1/1069 |
| Height to Top of Overhead Guard (in/mm) | 81/2057 |
| Turning radius (in/mm) | 62.8/1595 |
| Right Angle Stack (in/mm) | 76.6/1945 |
| Weight without battery – cushion tires (lbs/kg) | 4700/2132 |
| Weight without battery – pneumatic tires (lbs/kg) | 4575/2075 |
| Front Tire Size (Cushion – Pneumatic) | 18x7x12-1/8 – 18×7-8-16PR |
| Rear Tire Size (Cushion – Pneumatic) | 15x5x11-1/4 – 16×6-8-10PR |
| Wheelbase (in/mm) | 55.1/1400 |
Toyota 8FBEH18U Reference Video

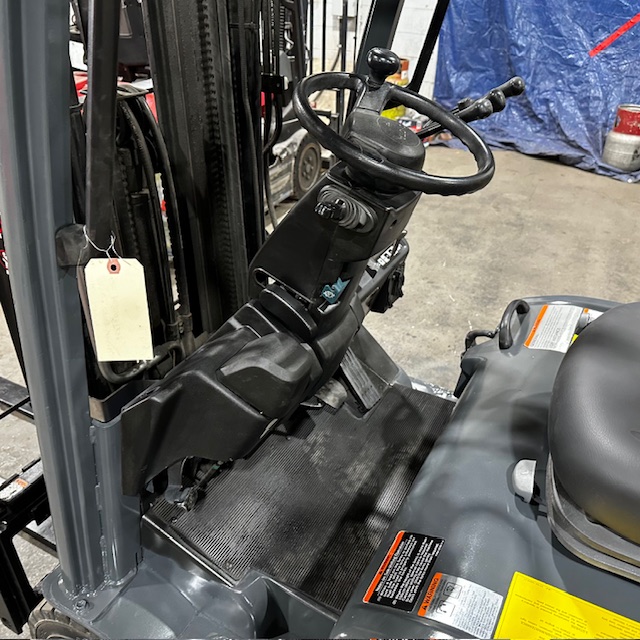

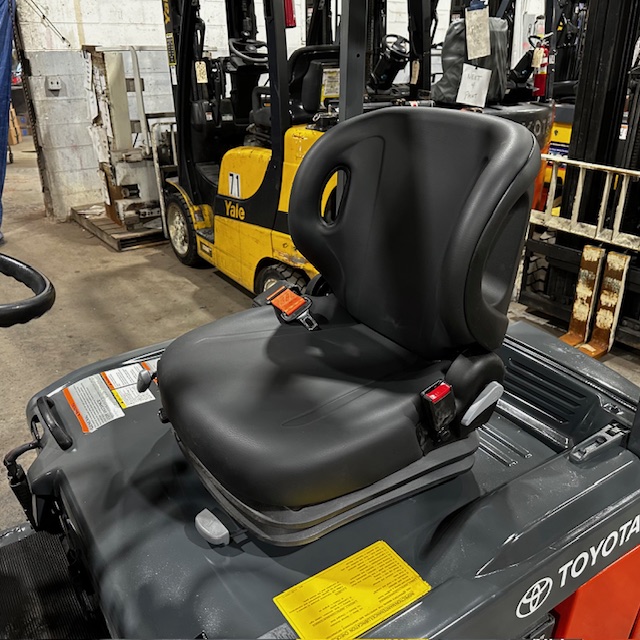

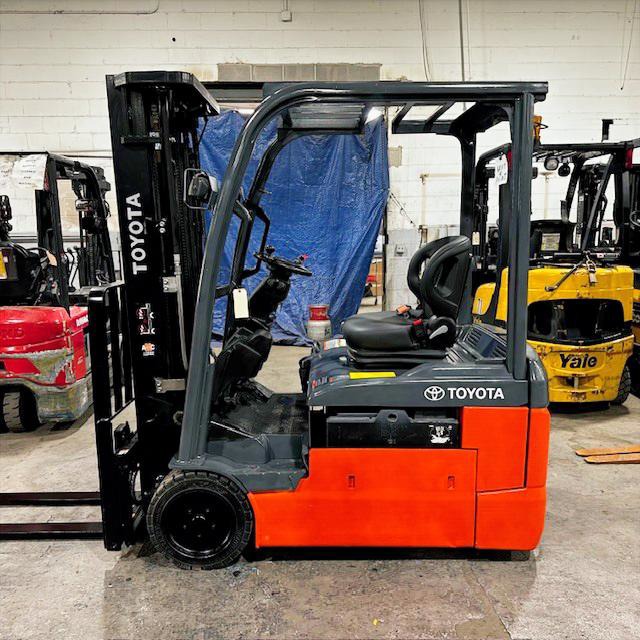

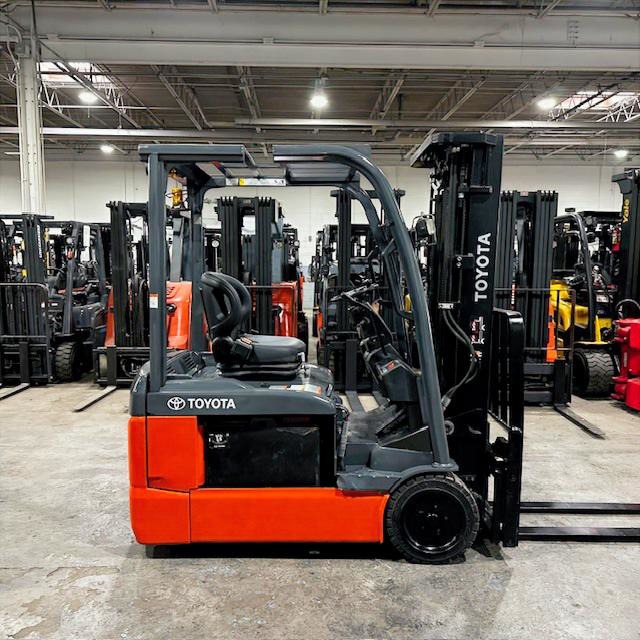

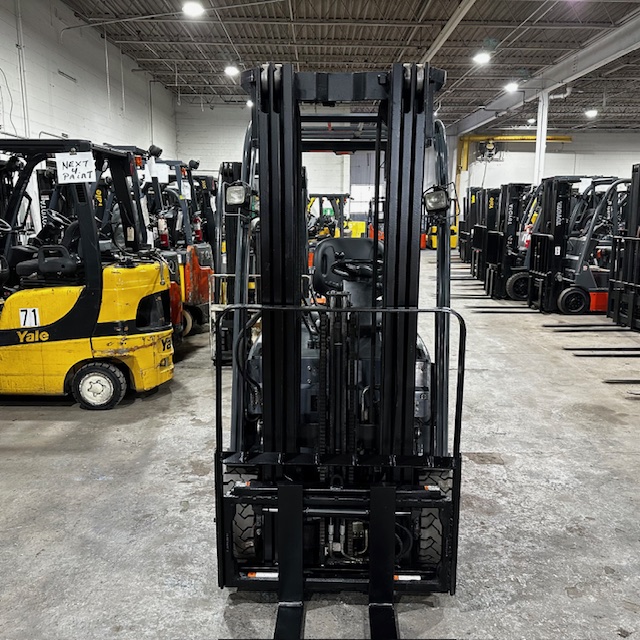

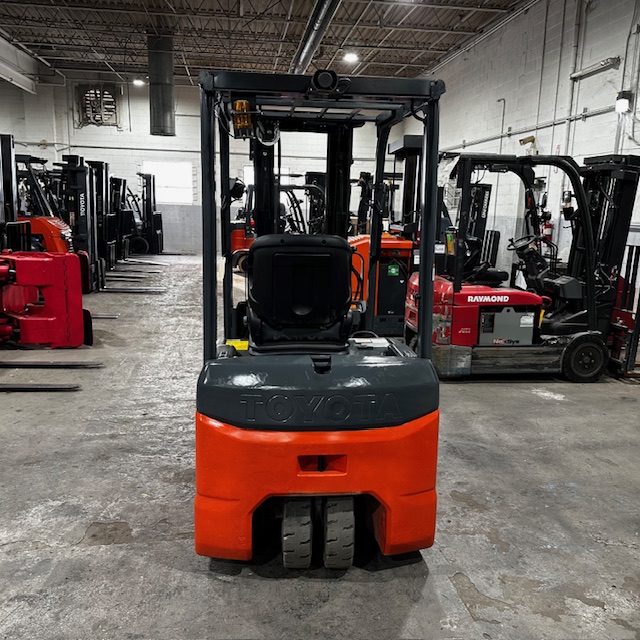

Toyota 8FBEH18U Reference Images
Toyota 8FBEH18U Battery and Charger
Buy replacement batteries and chargers for the Toyota 8FBEH18U forklift directly from our website.
36 Volts – 24″ Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.00″ x 24.20″ x 23.10″ |
| Amp Hours | 765 |
| Minimum Weight | 2105 lbs |
36 Volts – 25″ Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.20 x 25.10 x 25.40″ |
| Amp Hours | 850 |
| Minimum Weight | 2105 lbs |
48 Volts – 24″ Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.00″ x 24.20″ x 23.10″ |
| Amp Hours | 595 |
| Minimum Weight | 2105 lbs |
