| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Toyota |
| Model | 8FBE20U |
| Forklift Type | Three Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 4000/1814 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion or Pneumatic |
| Tilt – standard (forward/back) | 5/6.5 degrees |
| Length to Fork Face (in/mm) | 77.2/1961 |
| Width – Cushion Tires (in/mm) | 41.5/1054 |
| Width – Pneumatic Tires (in/mm) | 41.5/1054 |
| Height to Top of Overhead Guard (in/mm) | 81/2057 |
| Turning radius (in/mm) | 62.8/1595 |
| Right Angle Stack (in/mm) | 77.2/1961 |
| Weight without battery – cushion tires(lbs/kg) | 5270/2390 |
| Weight without battery – pneumatic tires(lbs/kg) | 5190/2354 |
| Front Tire Size (Cushion – Pneumatic) | 18x7x12-1/8 – 18×7-8-16PR |
| Rear Tire Size (Cushion – Pneumatic) | 15x5x11-1/4 – 16×6-8-10PR |
| Wheelbase (in/mm) | 55.1/1399 |
8FBE20U Reference Video

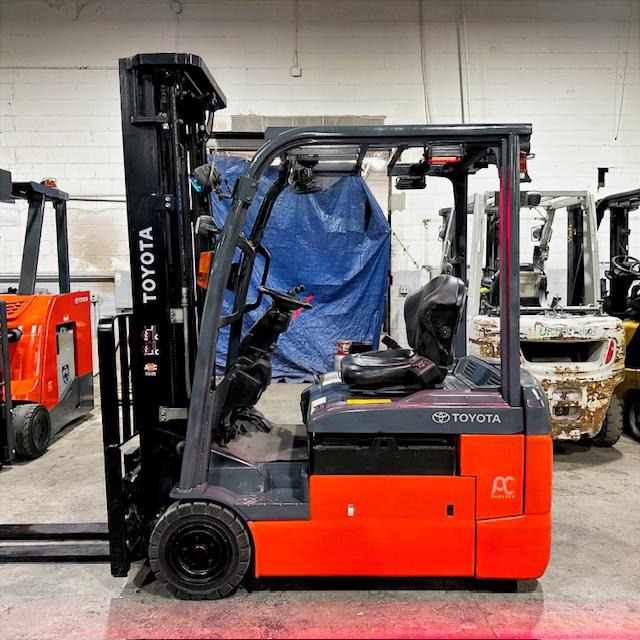

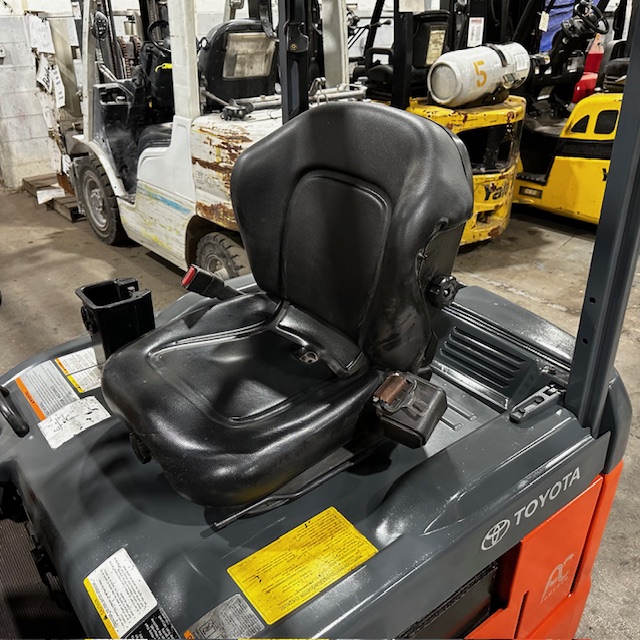

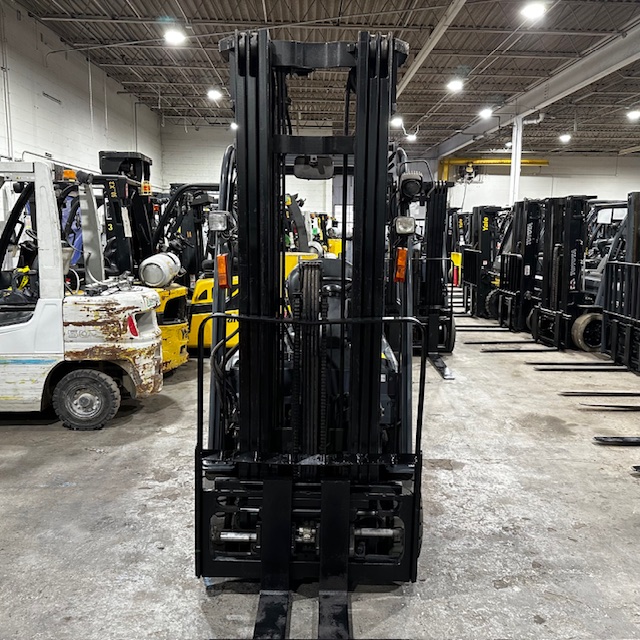

8FBE20U Reference Images
Toyota 8FBE20U Battery and Charger
Buy replacement batteries and chargers for the Toyota 8FBE20U directly from our website.
36 Volts – 24″ Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.00″ x 24.20″ x 23.10″ |
| Amp Hours | 765 |
| Minimum Weight | 2105 lbs |
36 Volts – 25″ Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.20 x 25.10 x 25.40″ |
| Amp Hours | 850 |
| Minimum Weight | 2105 lbs |
48 Volts – 24″ Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.00″ x 24.20″ x 23.10″ |
| Amp Hours | 595 |
| Minimum Weight | 2105 lbs |
Used Forklifts, Fair Prices
Looking for affordable used Toyota forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
how does one tell if the fork lift is 36v or48v
The data tag on the forklift will tell you the voltage – there is a section on it that will list either 36 or 48 volts. If the data tag is missing or illegible you can count the cells in the battery – 18 cells is 36 volts, 24 cells is 48 volts.
