| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Toyota |
| Model | 8FBCU25-COMP |
| Forklift Type | Four Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 5000/2500 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 6/8 degrees |
| Length to Fork Face (in/mm) | 82.7/2100 |
| Width – standard tires (in/mm) | 41.9/1065 |
| Height to Top of Overhead Guard (in/mm) | 88/2235 |
| Turning radius (in/mm) | 68.9/1750 |
| Right Angle Stack (in/mm) | 85.6/2170 |
| Weight without battery (lbs/kg) | 7170/3250 |
| Front Tire Size | 21x7x15 |
| Rear Tire Size | 16x5x10.5 |
| Wheelbase (in/mm) | 51/1295 |
Toyota 8FBCU25-COMP Reference Video

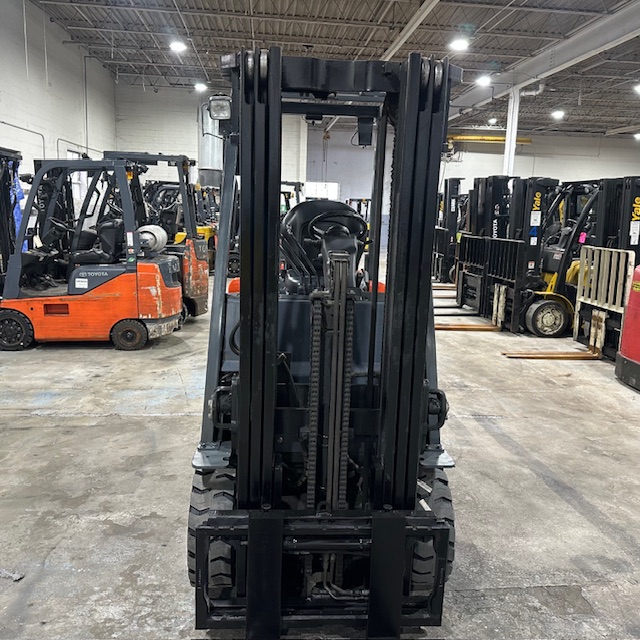

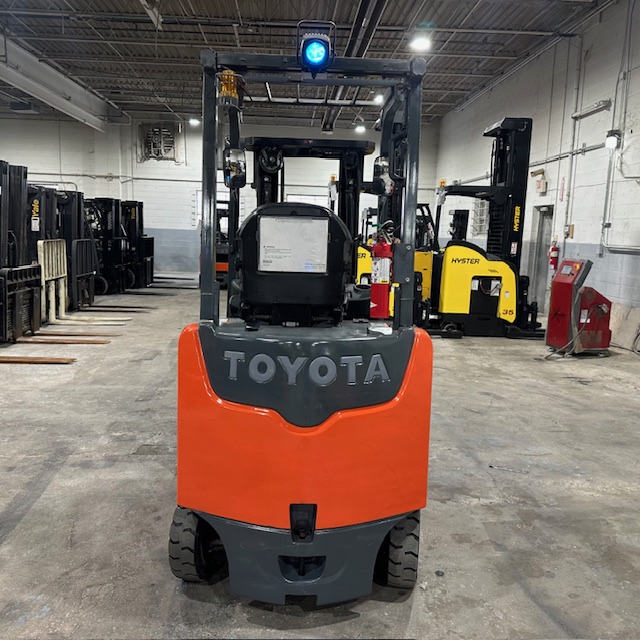

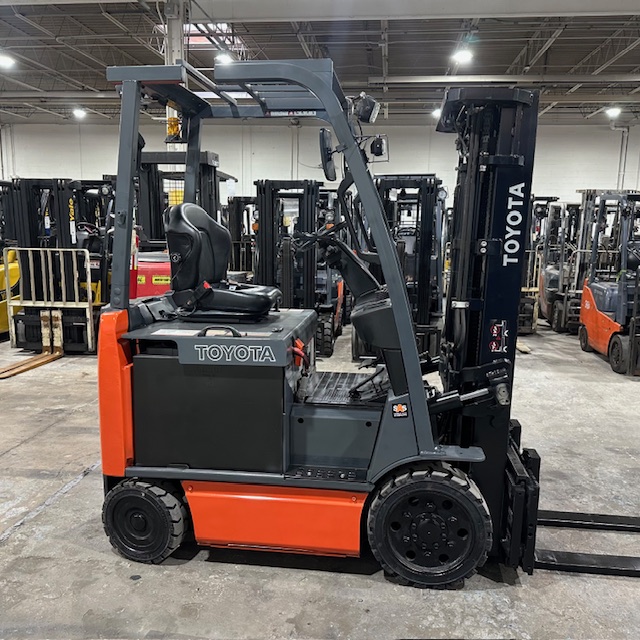

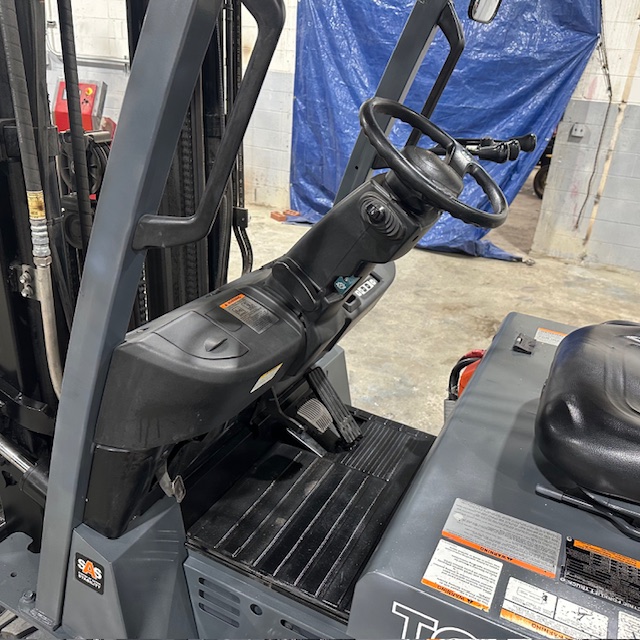

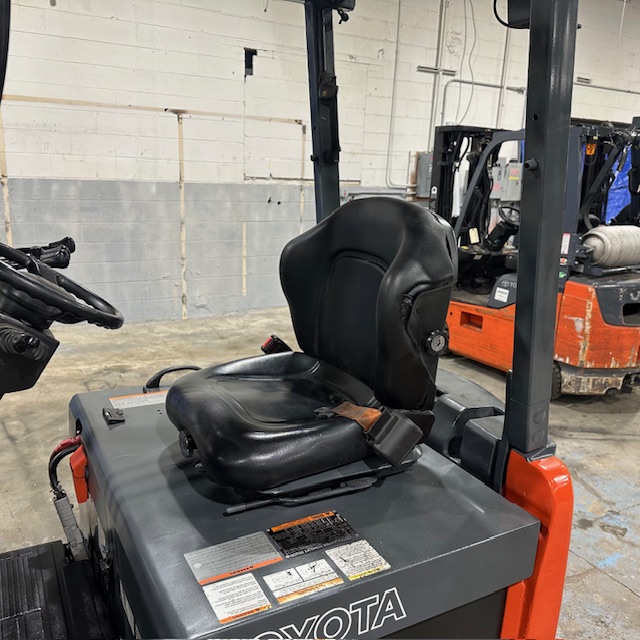

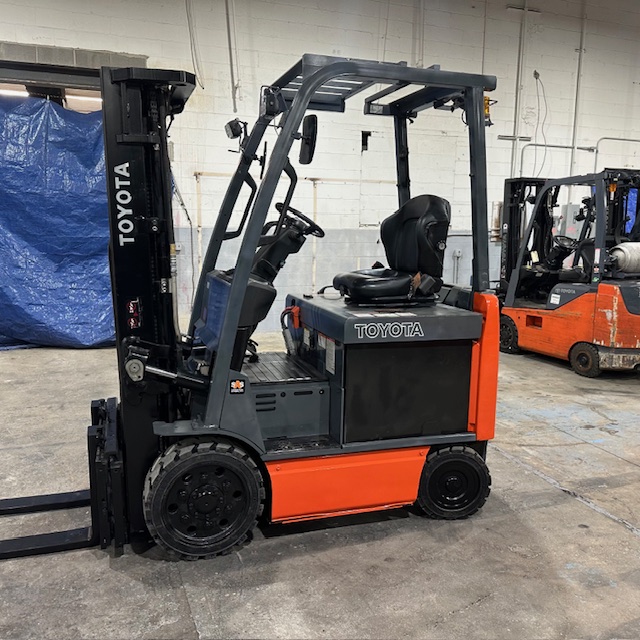

Toyota 8FBCU25-COMP Reference Images
Toyota 8FBCU25-COMP Battery and Charger
Buy replacement batteries and chargers for the 8FBCU25-COMP forklift directly from our website.
36 Volts
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10″ x 27.40″ x 23.80″ |
| Amp Hours | 935 |
| Minimum Weight | 2400 lbs |
48 Volts
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10″ x 27.40″ x 23.80″ |
| Amp Hours | 680 |
| Minimum Weight | 2400 lbs |
