| Attribute | Value |
|---|---|
| Battery and Chager | Go to Specs |
| Make | Toyota |
| Model | 8FBCU20-COMP |
| Forklift Type | Four Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 4000/2000 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 6/8 degrees |
| Length to Fork Face (in/mm) | 79.9/2030 |
| Width – standard tires (in/mm) | 41.9/1065 |
| Height to Top of Overhead Guard (in/mm) | 88/2235 |
| Turning radius (in/mm) | 68.5/1740 |
| Right Angle Stack (in/mm) | 85.2/2165 |
| Weight without battery (lbs/kg) | 6390/2840 |
| Front Tire Size | 21x7x15 |
| Rear Tire Size | 16x5x10.5 |
| Wheelbase (in/mm) | 51/1295 |
Toyota 8FBCU20-COMP Reference Video

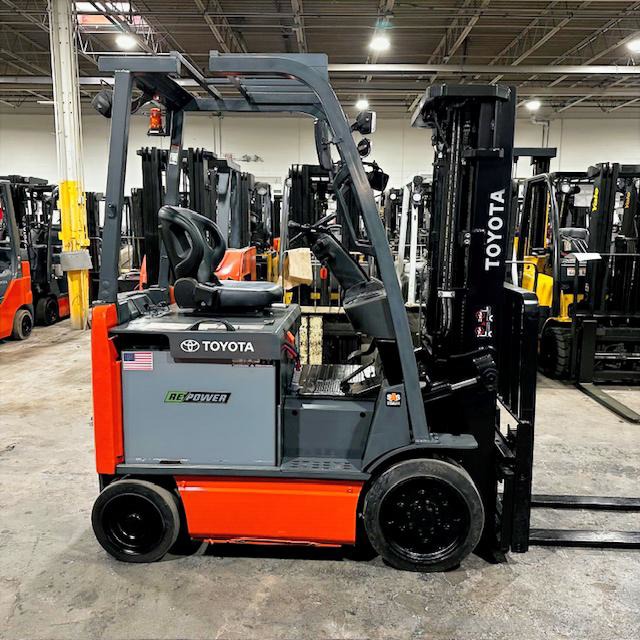

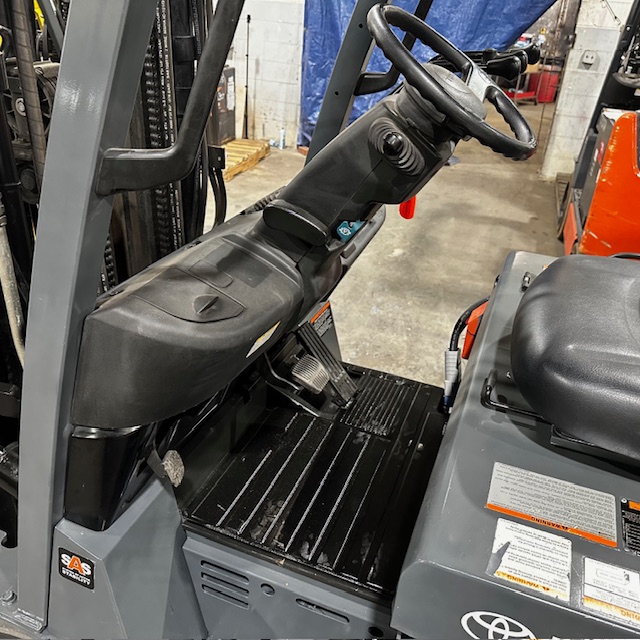

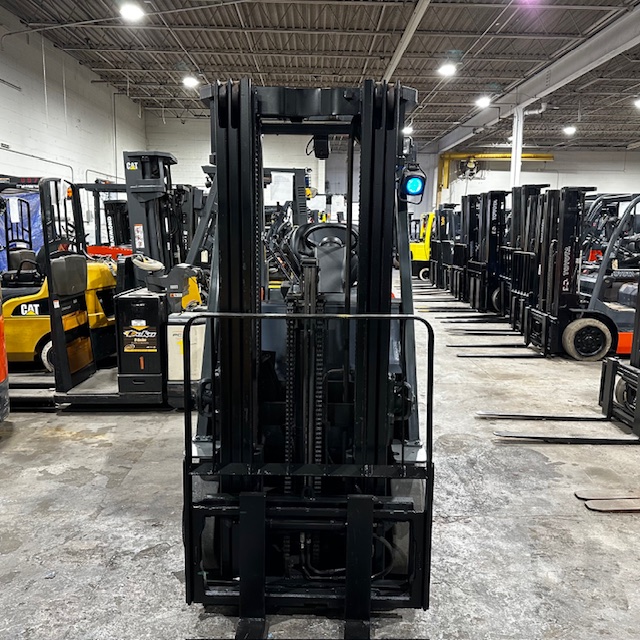

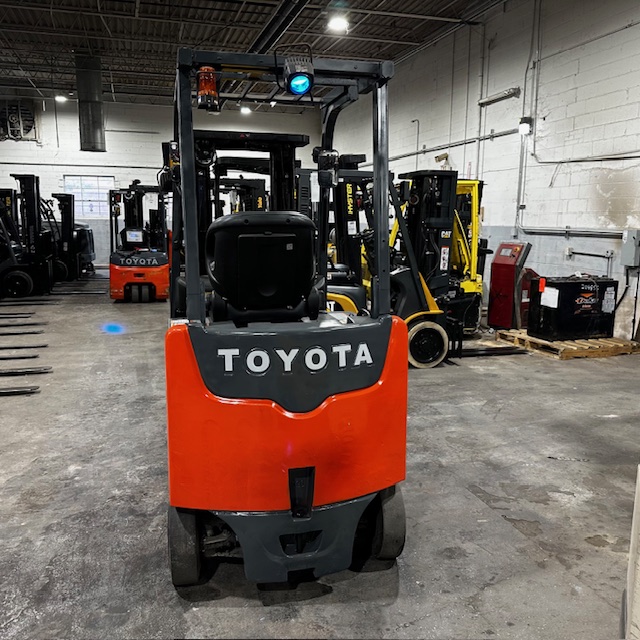

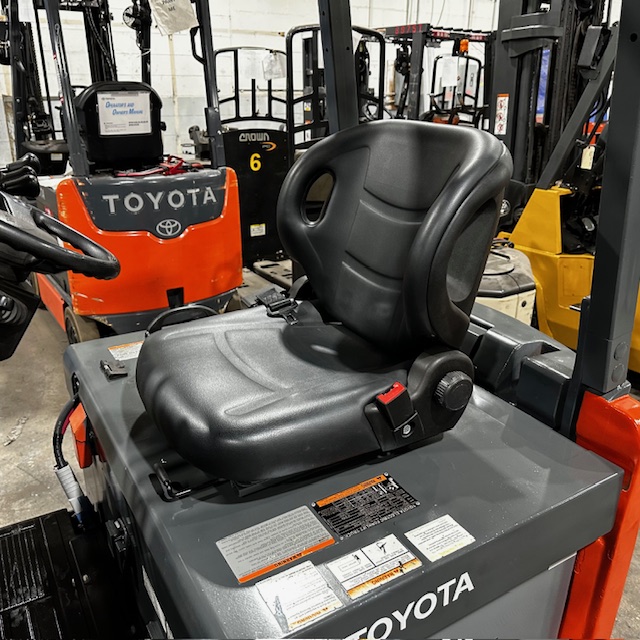

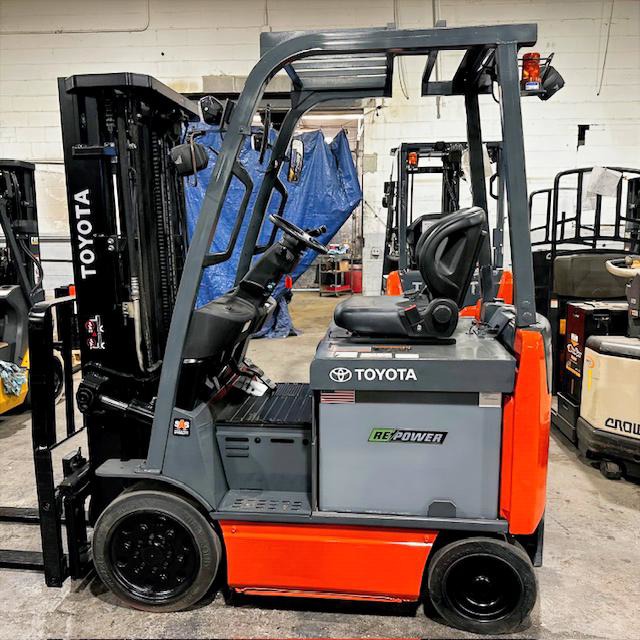

Toyota 8FBCU20-COMP Reference Images
Toyota 8FBCU20-COMP Battery and Charger
Buy replacement batteries and chargers for the Toyota 8FBCU20-COMP forklift directly from our website.
Used Forklifts, Fair Prices
Looking for affordable used Toyota forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
