| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Toyota |
| Model | 8FBC15U |
| Basic Capacity (lbs/kg) | 3000/1500 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 6/8 degrees |
| Length to Fork Face (in/mm) | 76.8/1950 |
| Width – standard tires (in/mm) | 37/945 |
| Height to Top of Overhead Guard (in/mm) | 86.4/2195 |
| Turning radius (in/mm) | 66.3/1685 |
| Right Angle Stack (in/mm) | 82.1/2085 |
| Weight without battery (lbs/kg) | 4930/2240 |
| Front Tire Size | 18 x 6 x 12-1/8 |
| Rear Tire Size | 14 x 4-1/2 x 8 |
| Wheelbase (in/mm) | 48/1220 |
8FBC15U Reference Video

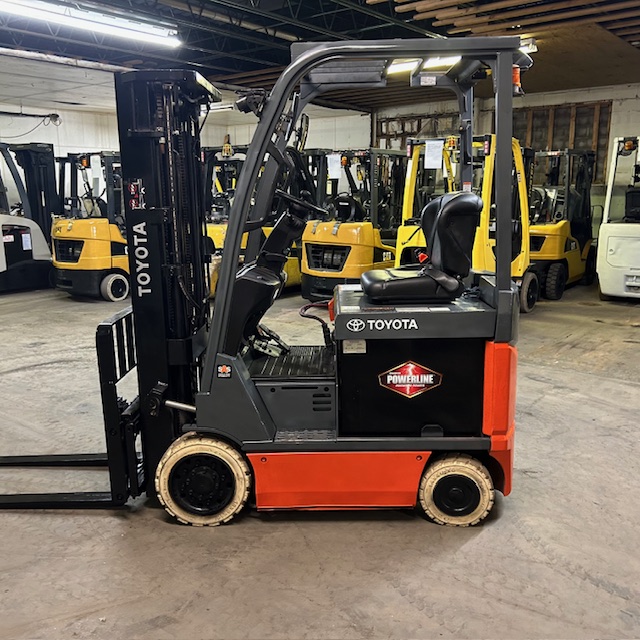

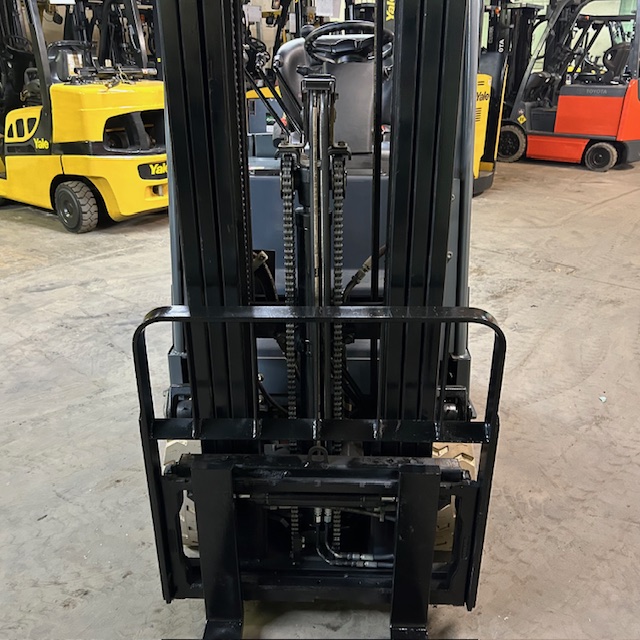

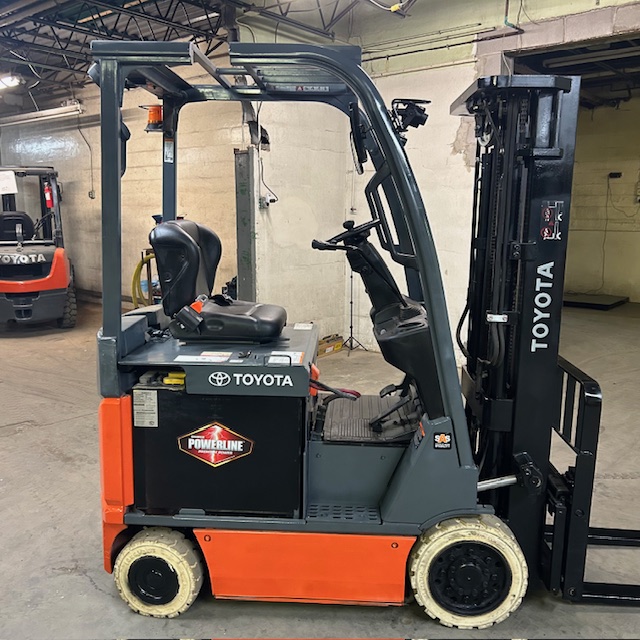

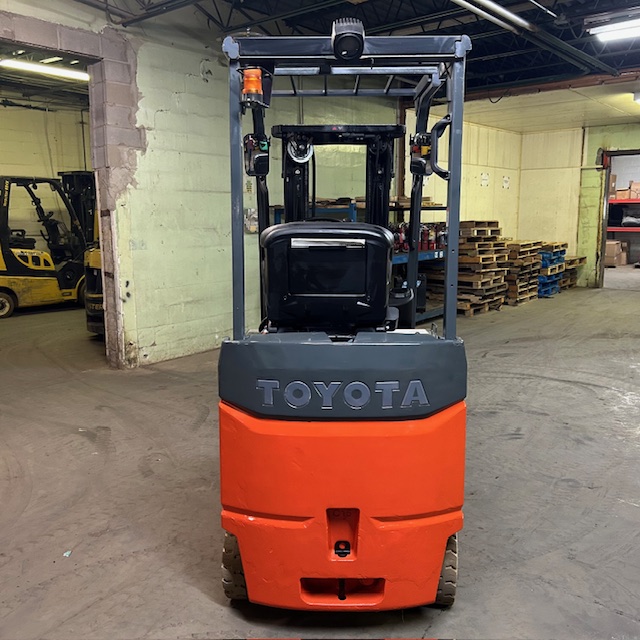

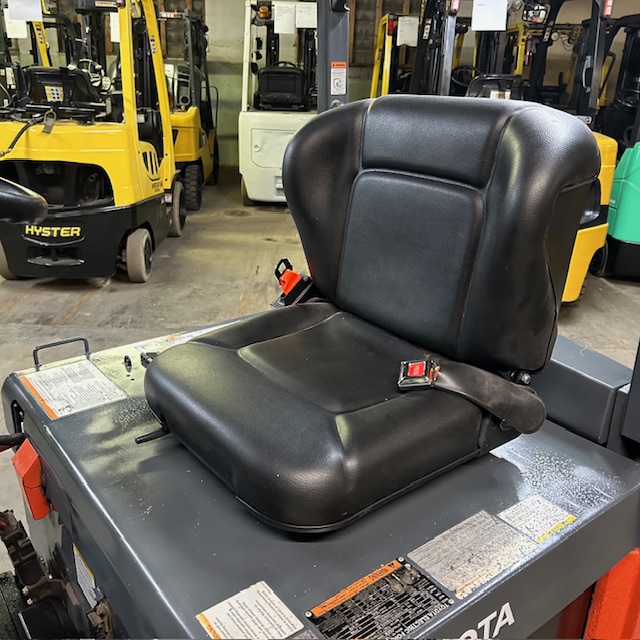

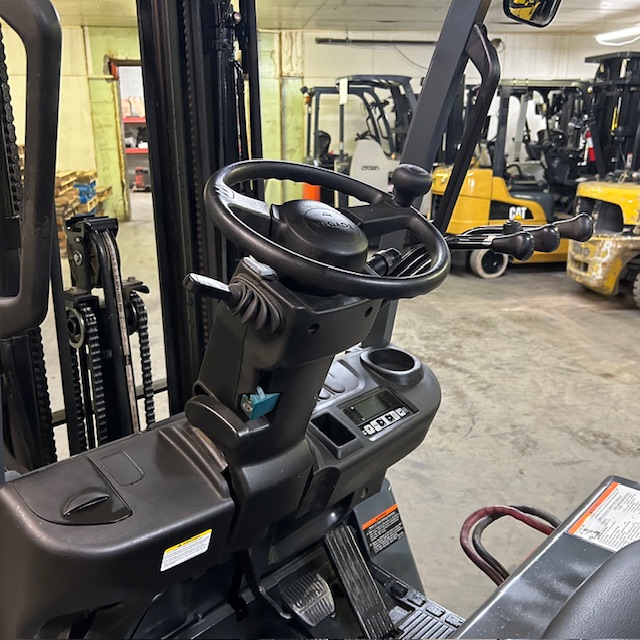

8FBC15U Reference Images
Toyota 8FBCU15 Battery and Charger
Buy replacement batteries and chargers for the Toyota 8FBC15U forklift directly from our website.
36 Volts
