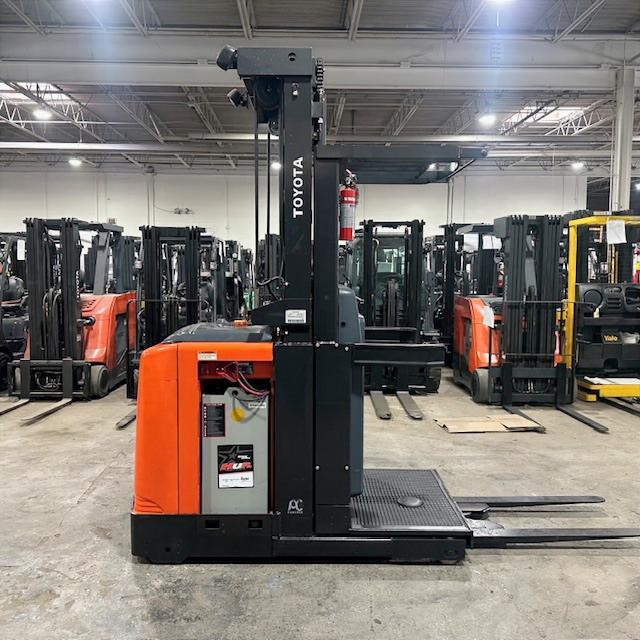

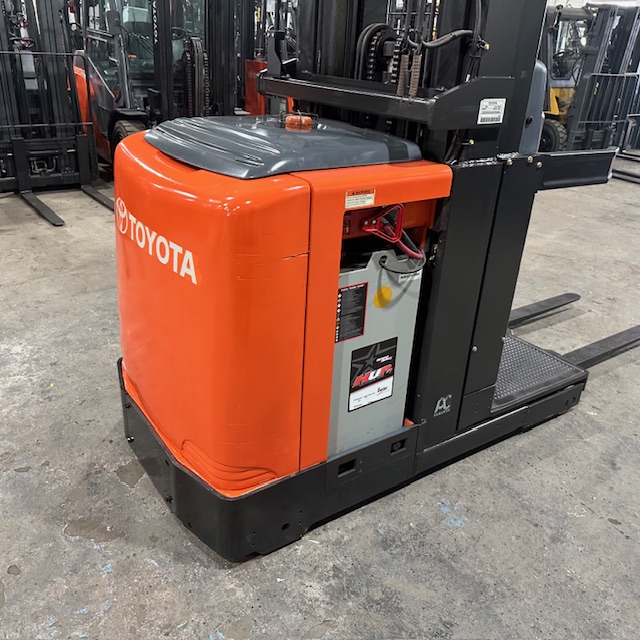

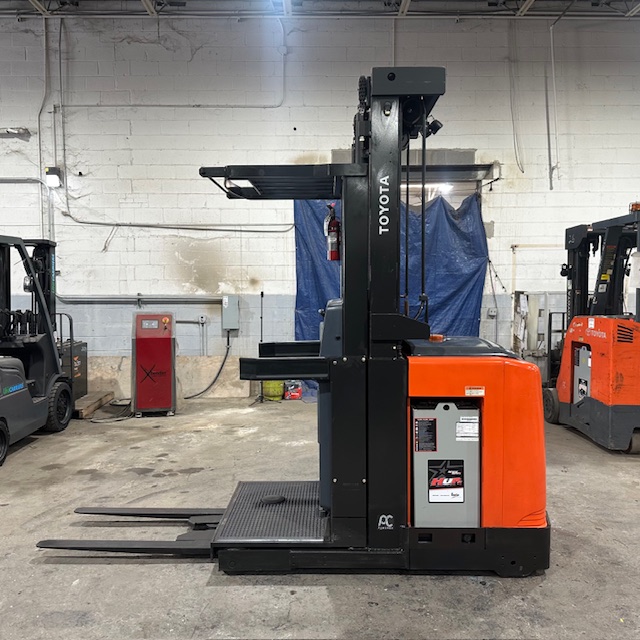

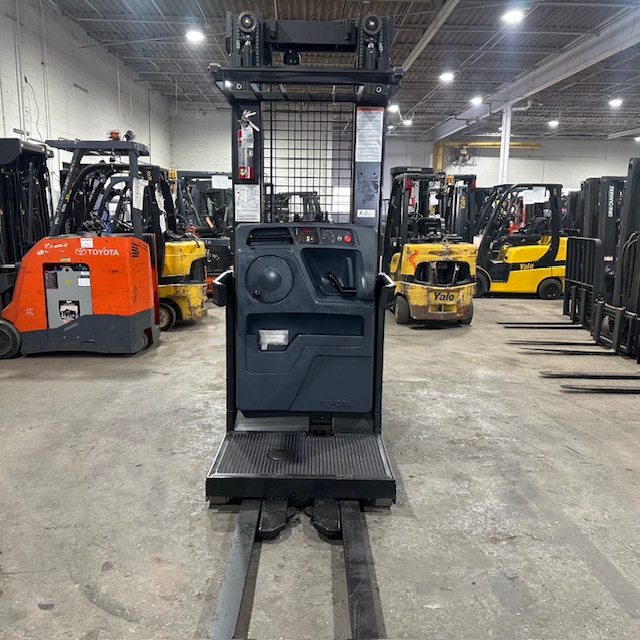

Toyota 8BPUE15 Forklift Specifications

Attribute	Value
Battery and Charger	Go to Specs
Make	Toyota
Model	8BPUE15
Forklift Type	Order Picker
Basic Capacity (lb/kg)	3000/1360
Load Center (in/mm)	24/600
Power	Electric – 24 Volts
Tilt – standard degrees (forward/back)	None
Length to Fork Face (in/mm)	74/1880
Base Legs Overall Width (in/mm)	40/1015
Turning Radius (in/mm)	72.15/1833
Maximum Travel Speed – fwd. / rev. – full load (mph/kmh)	6.5/10.5
Total Weight (without battery) 2-Stage 123″ Lift Height (lb/kg)	4650/2111
Total Weight (without battery) 2-Stage 137″ Lift Height (lb/kg)	4680/2125
Total Weight (without battery) 2-Stage 161″ Lift Height (lb/kg)	4730/2147
Total Weight (without battery) 2-Stage 201″ Lift Height (lb/kg)	4814/2186
Total Weight (without battery) 2-Stage 241″ Lift Height (lb/kg)	4898/2224
Total Weight (without battery) 3-Stage 189″ Lift Height (lb/kg)	4780/2170
Total Weight (without battery) 3-Stage 210″ Lift Height (lb/kg)	5065/2300
Total Weight (without battery) 3-Stage 240″ Lift Height (lb/kg)	5615/2549
Overhead Guard Height (in/mm)	88.25/2242
Drive Tires Size (in/mm)	12 x 5 (305 x 100)
Load Wheels Size (in/mm)	6 x 3.6 (150 x 90)
Battery Type	Lead-Acid
