| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Toyota |
| Model | 7FBEU18 |
| Forklift Type | Three Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 3500/1587 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 5/6.5 degrees |
| Length to Fork Face (in/mm) | 74.6/1894 |
| Width – standard tires (in/mm) | 41.5/1054 |
| Height to Top of Overhead Guard (in/mm) | 78/1981 |
| Turning radius (in/mm) | 60.8/1544 |
| Right Angle Stack (in/mm) | 74.6/1894 |
| Weight without battery (lbs/kg) | 5995/2265 |
| Front Tire Size | 18x7x12-1/8 |
| Rear Tire Size | 15x5x11-1/4 |
| Wheelbase (in/mm) | 51.6/1310 |
Toyota 7FBEU18 Reference Video

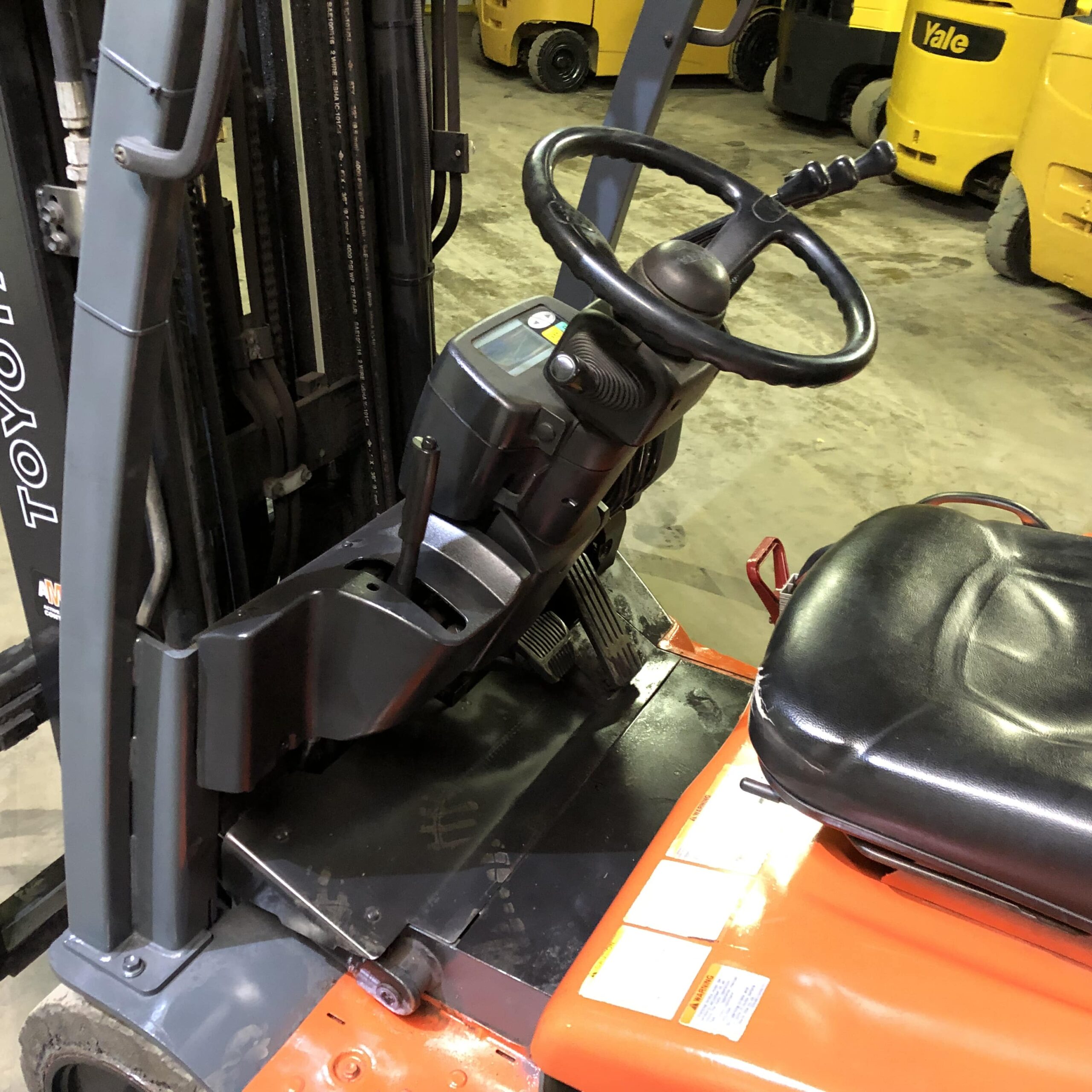

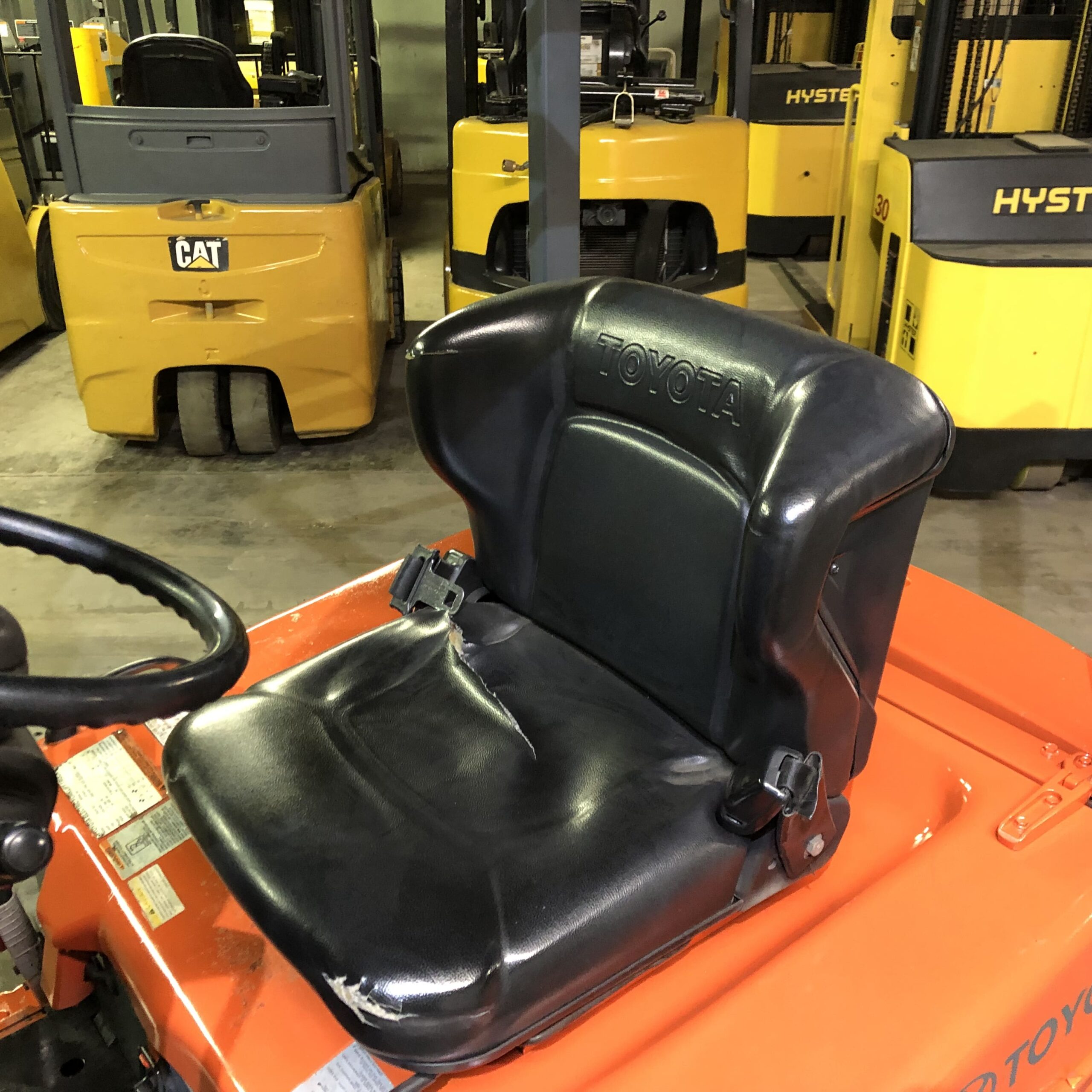

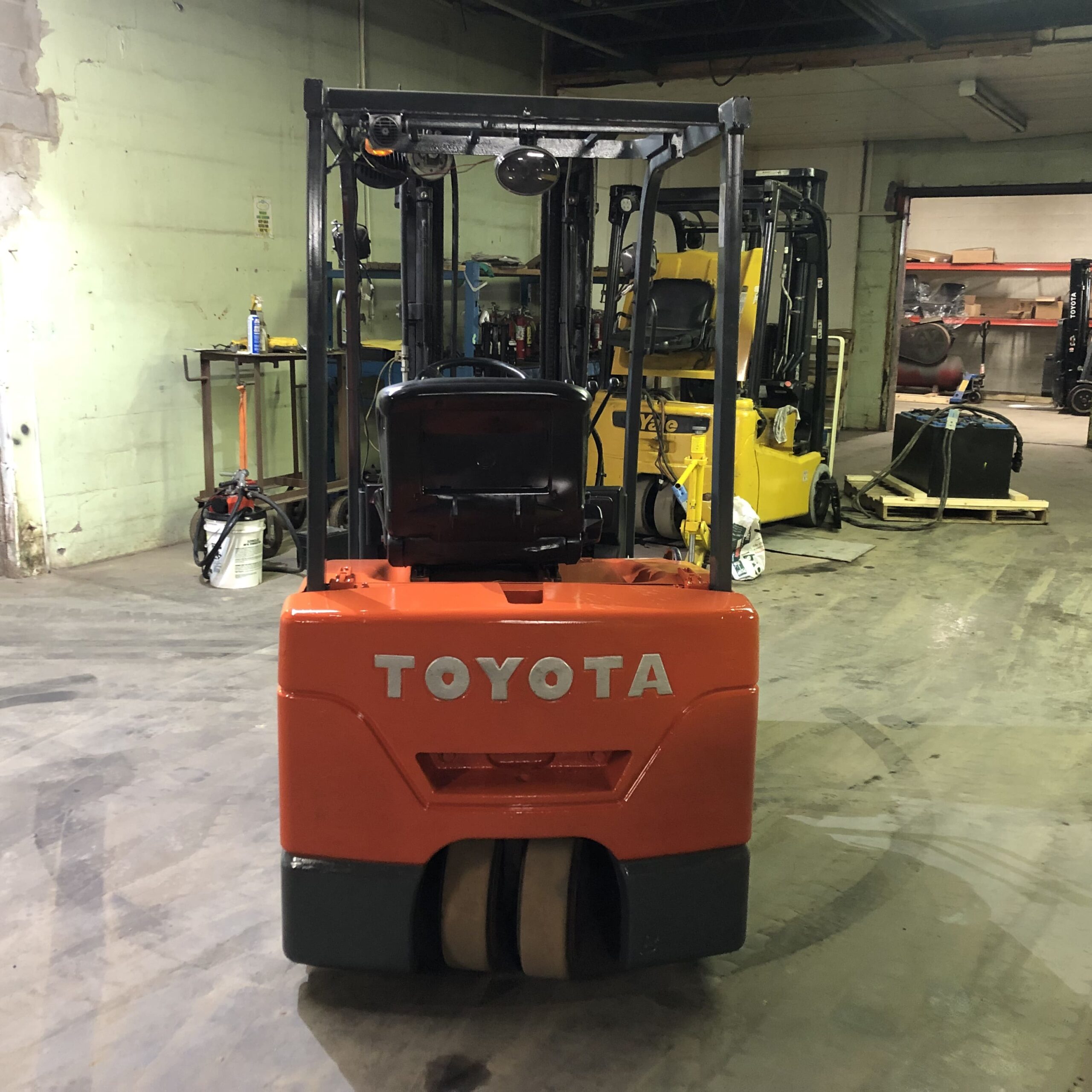

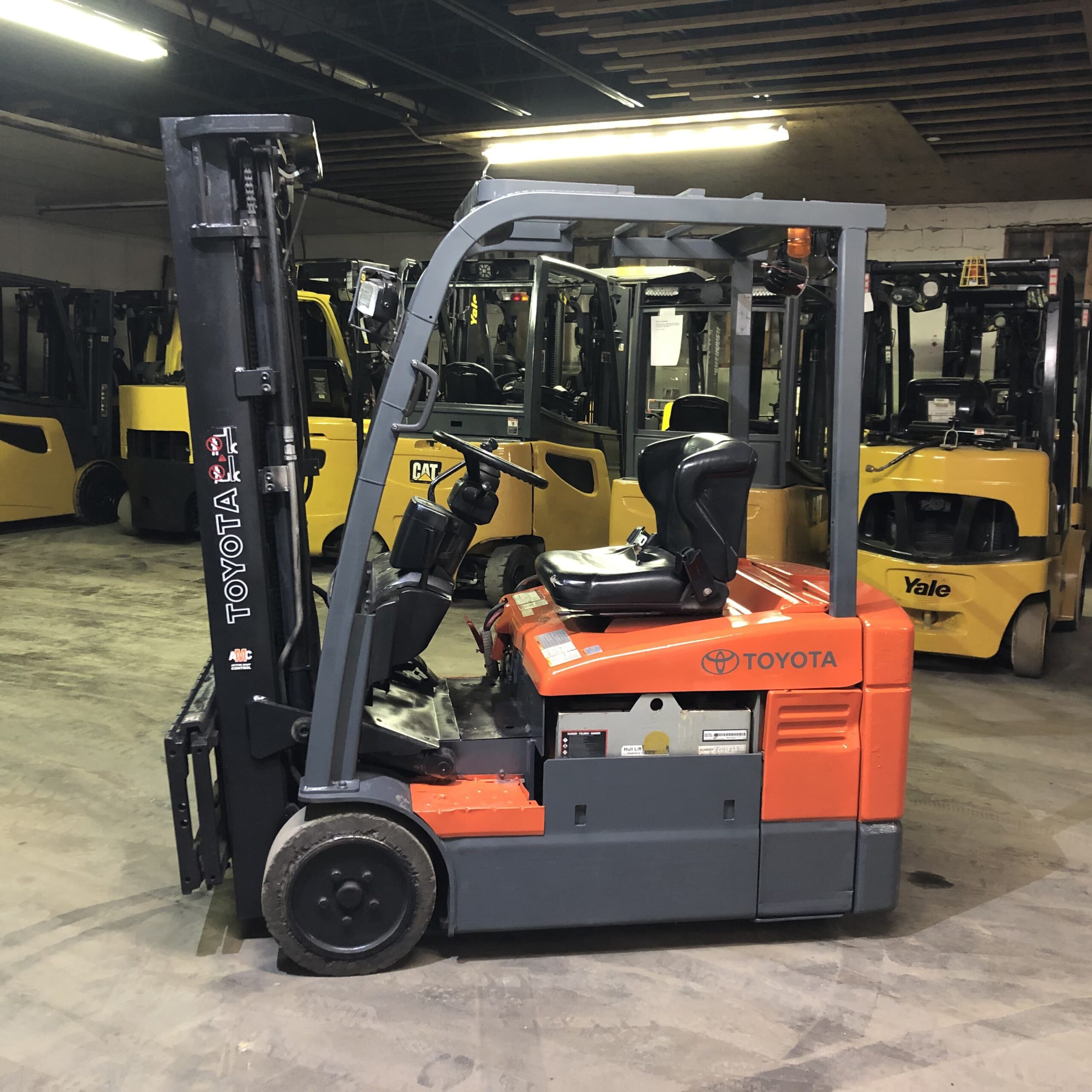

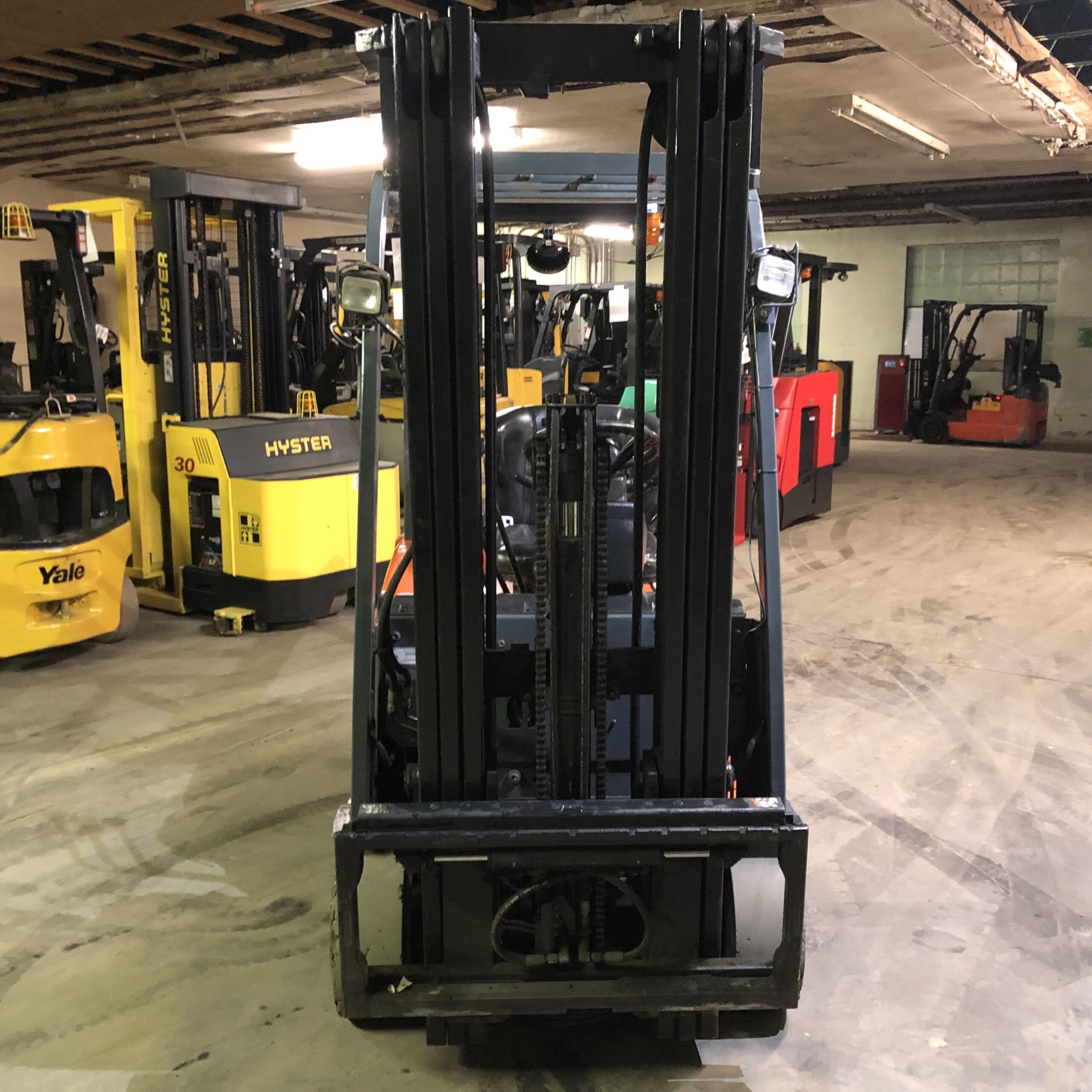

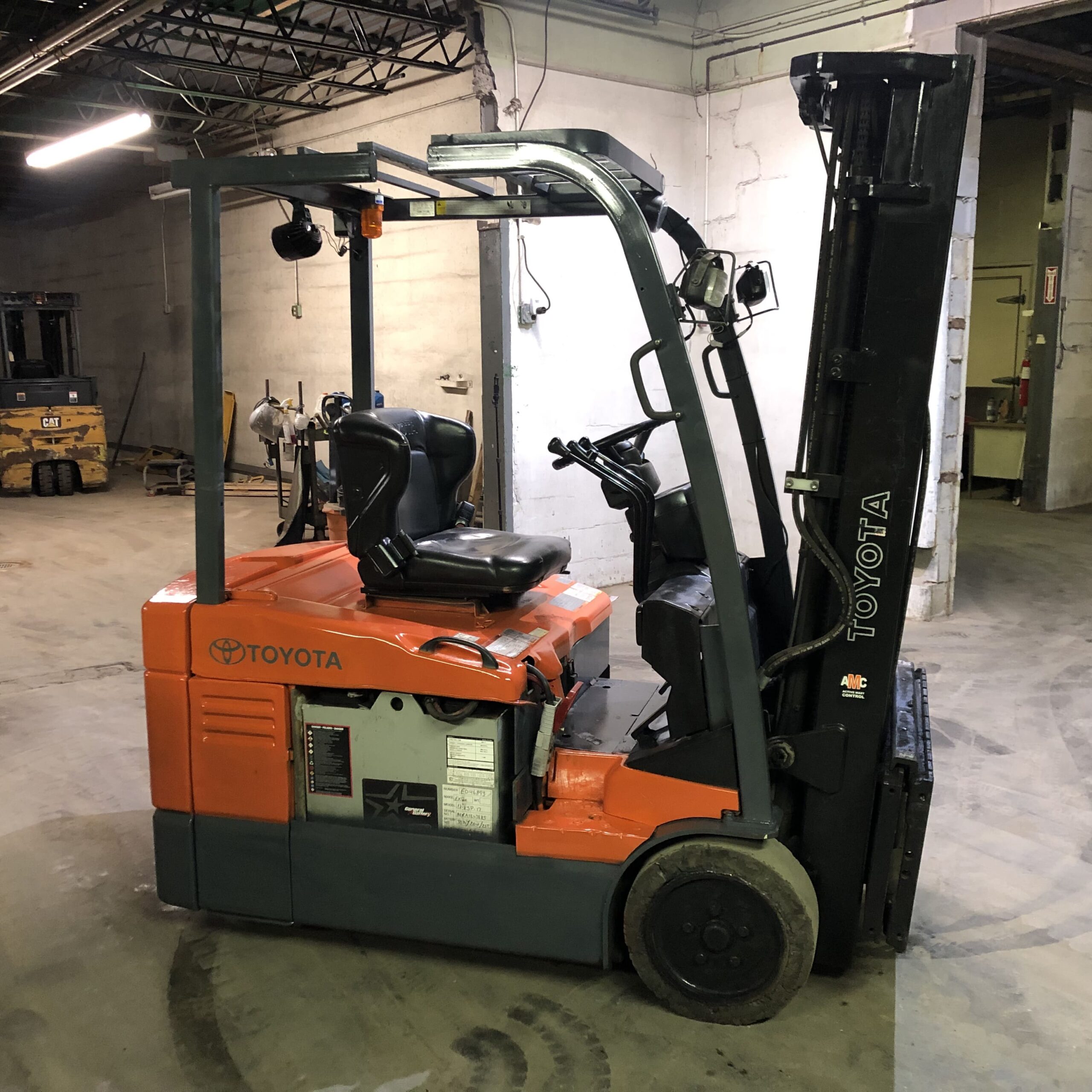

Toyota 7FBEU18 Reference Images
Toyota 7FBEU18 Battery and Charger
Buy replacement batteries and chargers for the Toyota 7FBEU18 forklift directly from our website.
36 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 1543 lbs |
| Recommended Capacity | 595 AH |
| Box Dimensions | 39.2″ x 21.70″ x 24.10″ |
| Connector | SB350 / Gray |
48 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 1543 lbs |
| Recommended Capacity | 375 AH |
| Box Dimensions | 39.2″ x 21.70″ x 24.10″ |
| Connector | SB350 / Gray |
