| Attribute | Value |
|---|---|
| Battery and Charger | Go to Specs |
| Make | Cat |
| Model | NR4000P |
| Forklift Type | Narrow Aisle Single Reach |
| Basic Capacity | 4000 lbs |
| Load Center | 24″ |
| Power | Electric |
| Max Fork Height (optional) | 318″ |
| Tilt (forward/back) | 3/4.5 degrees |
| Overall Length | 78.0″ |
| Length to Fork Face | 55.8″ |
| Overall Lowered Height with Max Triplex Mast | 139″ |
| Height to Top of Overhead Guard | 94″ |
| Minimum turning radius | 72.8″ |
| Weight with min weight battery | 8600lbs |
| Wheelbase | 63.5″ |
| Tire Size – Steer | 13.5×5.5″ |
| Tire Size – Caster | 7.0×4.0″ |
| Tire Size – load wheels | 5.0×3.62″ |

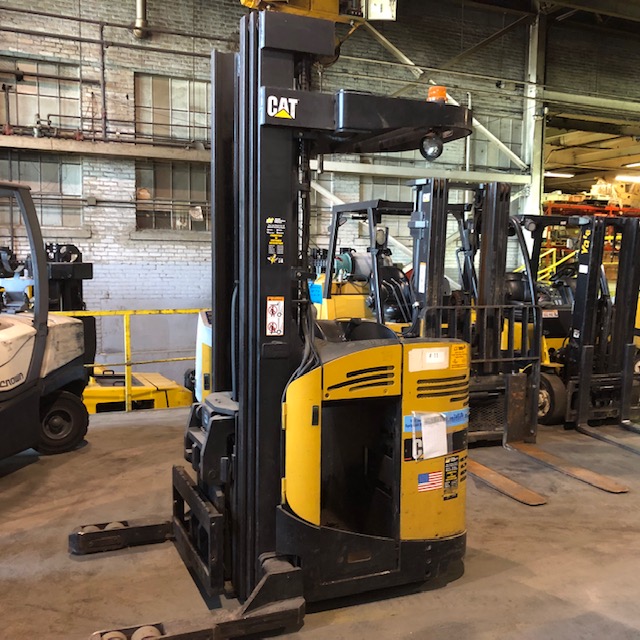

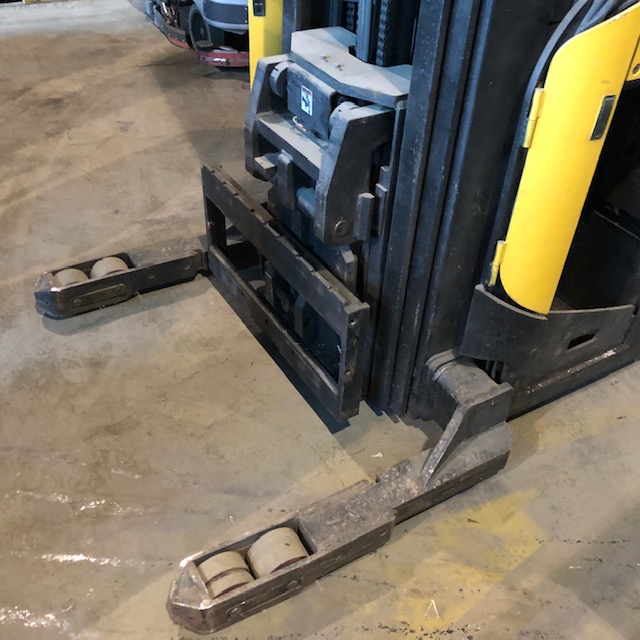

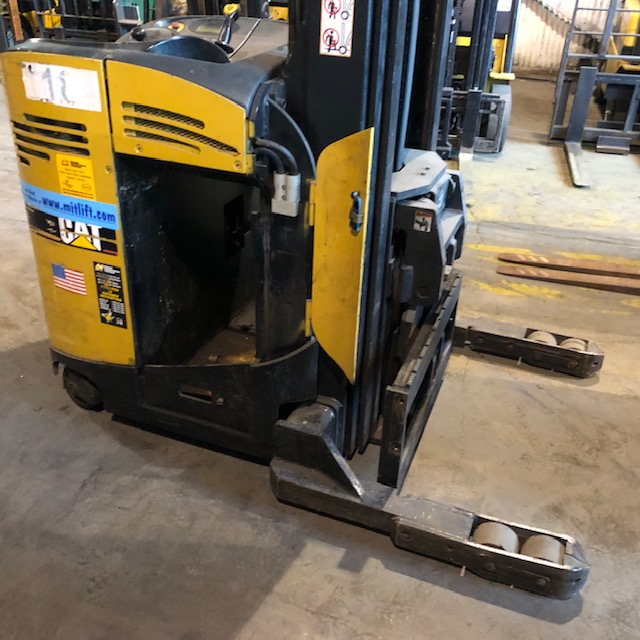

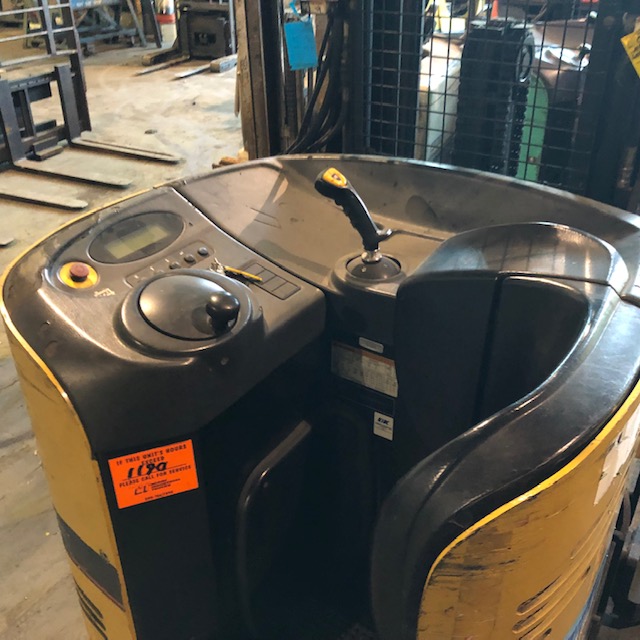

Cat NR4000P Reference Images
Cat NR4000P Battery and Charger
Buy replacement batteries and chargers for the Cat NR4000 forklift directly from our website.
36 Volts – 16″ Box
36 Volts – 18″ Box
36 Volts – 21″ Box
